- RS Stock No.:
- 222-9617
- Mfr. Part No.:
- UPM1V101MPD
- Brand:
- Nichicon
6000 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 3000)
£0.113
(exc. VAT)
£0.136
(inc. VAT)
Units | Per unit | Per Bag* |
3000 + | £0.113 | £339.00 |
*price indicative |
- RS Stock No.:
- 222-9617
- Mfr. Part No.:
- UPM1V101MPD
- Brand:
- Nichicon
Technical Reference
Legislation and Compliance
Product Details

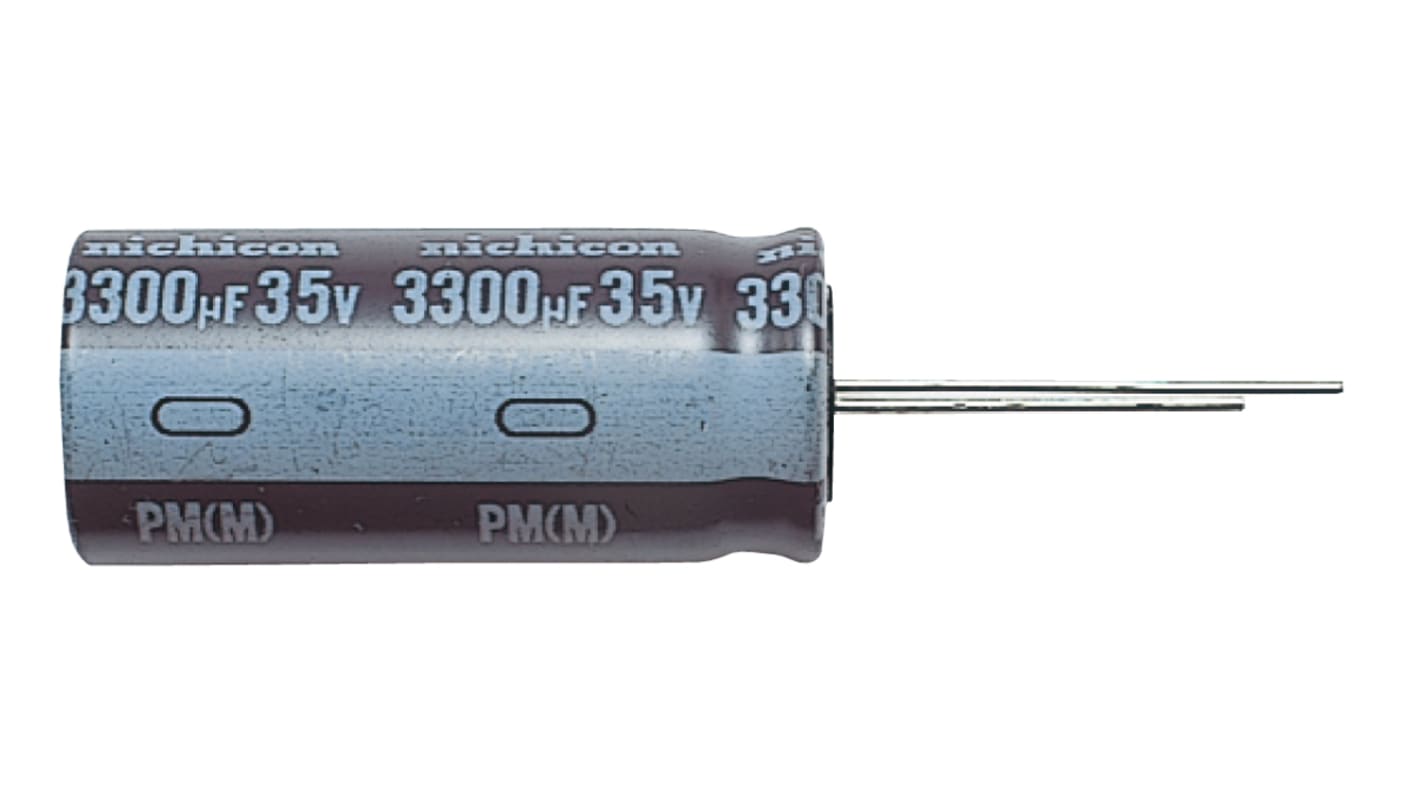

Nichicon PM Series Electrolytic Capacitors
Nichicon PM Series Aluminium Electrolytic Capacitors are high reliability, low impedance products that have a 5000-hour load life and are compliant to the RoHS directive (2011/65/EU). The PM series features a wide temperature range, a rated voltage range of 6.3 V to 450 V, and high ripple current.
Features & Benefits:
High reliability
High ripple current
Long life up to 5000 hours
Lead free reflow soldering
Extremely low impedance
High ripple current
Long life up to 5000 hours
Lead free reflow soldering
Extremely low impedance
The Nichicon UPM series is a Lead type, low impedance aluminium electrolytic capacitor which has rated capacitance of 100 μF with capacitance tolerance of ± 20%. It has high reliability withstanding 5000 hour load life at +105°C
Compliant to the RoHS directive.
AEC-Q200 compliant.
AEC-Q200 compliant.
Specifications
Attribute | Value |
---|---|
Capacitance | 100µF |
Voltage | 35V dc |
Mounting Type | Radial, Through Hole |
Technology | Aluminium Electrolytic |
Dimensions | 8 (Dia.) x 11.5mm |
Length | 11.5mm |
Diameter | 8mm |
Maximum Operating Temperature | +105°C |
Lead Pitch | 3.5mm |
Series | UPM |
Automotive Standard | AEC-Q200 |
