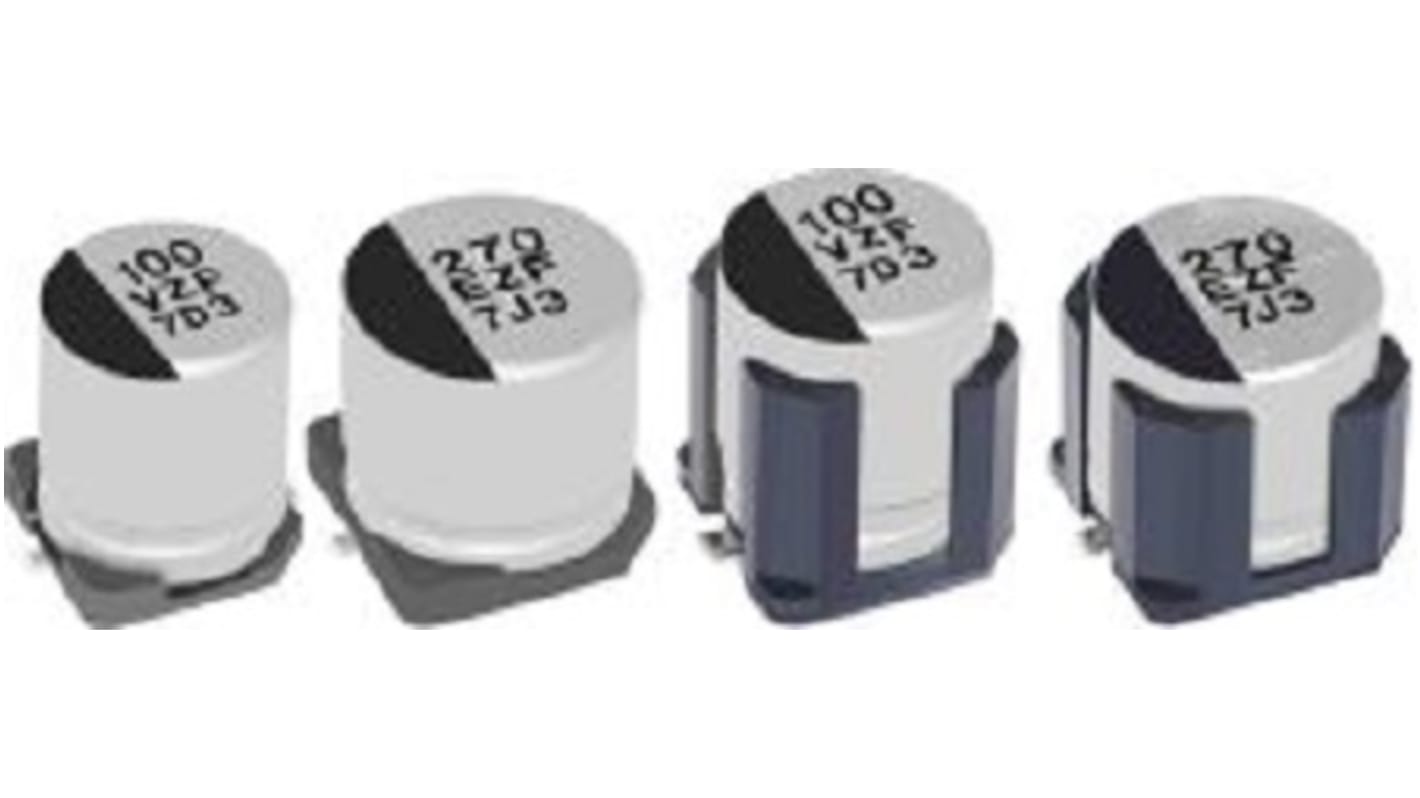

Panasonic 100 μF Aluminium Electrolytic Capacitor 50V dc, Surface
- RS Stock No.:
- 211-0551
- Mfr. Part No.:
- EEHZF1V101V
- Brand:
- Panasonic
Subtotal (1 reel of 500 units)*
£401.00
(exc. VAT)
£481.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 500 + | £0.802 | £401.00 |
*price indicative
- RS Stock No.:
- 211-0551
- Mfr. Part No.:
- EEHZF1V101V
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Aluminium Electrolytic Capacitor | |
| Capacitance | 100μF | |
| Voltage | 50V dc | |
| Mount Type | Surface | |
| Packaging | Carrier Tape | |
| Height | 10mm | |
| Polarity | Polar | |
| Length | 10.5mm | |
| Minimum Operating Temperature | 150°C | |
| Diameter | 8mm | |
| Termination Type | Solder | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Lifetime | 1000 h | |
| Equivalent Series Resistance ESR | 30mΩ | |
| Ripple Current | 770mA | |
| Series | ZF-V | |
| Automotive Standard | AEC-Q200 | |
| Leakage Current | 3μA | |
| Dissipation Factor | 0.12% | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Aluminium Electrolytic Capacitor | ||
Capacitance 100μF | ||
Voltage 50V dc | ||
Mount Type Surface | ||
Packaging Carrier Tape | ||
Height 10mm | ||
Polarity Polar | ||
Length 10.5mm | ||
Minimum Operating Temperature 150°C | ||
Diameter 8mm | ||
Termination Type Solder | ||
Pin Count 2 | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Lifetime 1000 h | ||
Equivalent Series Resistance ESR 30mΩ | ||
Ripple Current 770mA | ||
Series ZF-V | ||
Automotive Standard AEC-Q200 | ||
Leakage Current 3μA | ||
Dissipation Factor 0.12% | ||
- COO (Country of Origin):
- JP
Panasonic Aluminium Electrolytic Capacitor, 100μF Capacitance, 35V Voltage - EEHZF1V101V
This aluminium electrolytic capacitor provides polarised energy storage for surface-mount electronics in demanding environments. It is intended for automotive and industrial circuits where high-temperature endurance and Compact SMD packaging are required, offering stable capacitance for decoupling, smoothing and power-supply filtering tasks.
Features and Benefits:
• 100μF capacitance delivers substantial charge buffering capacity
• 35V rating supports mid-voltage power rails in control systems
• Low ESR 30mΩ reduces heat generation under load
• 770mA ripple current enables sustained AC loading
• Maximum operating temperature 150°C allows high-temperature deployment
• Lifetime 1000h provides predictable service-interval planning
• 35V rating supports mid-voltage power rails in control systems
• Low ESR 30mΩ reduces heat generation under load
• 770mA ripple current enables sustained AC loading
• Maximum operating temperature 150°C allows high-temperature deployment
• Lifetime 1000h provides predictable service-interval planning
Applications
• Suitable for power-supply smoothing in motor controllers
• Ideal for filtering in automotive electronic control units
• Used with DC to DC converters in industrial automation equipment
• Can be used for bulk decoupling on Compact SMD assemblies
• Ideal for filtering in automotive electronic control units
• Used with DC to DC converters in industrial automation equipment
• Can be used for bulk decoupling on Compact SMD assemblies
What mounting format does it use and how is it supplied?
It is a surface-mount component provided on carrier tape for automated placement.
What environmental temperature extremes can it withstand during operation?
It operates from -55°C up to 150°C for applications with wide ambient variations.
How is polarity managed during assembly and termination achieved?
The component is polar and requires correct orientation, electrical connection is by solder termination.
What measures indicate its suitability for automotive projects?
It conforms to an automotive-grade qualification and meets RoHS requirements for regulated materials.
