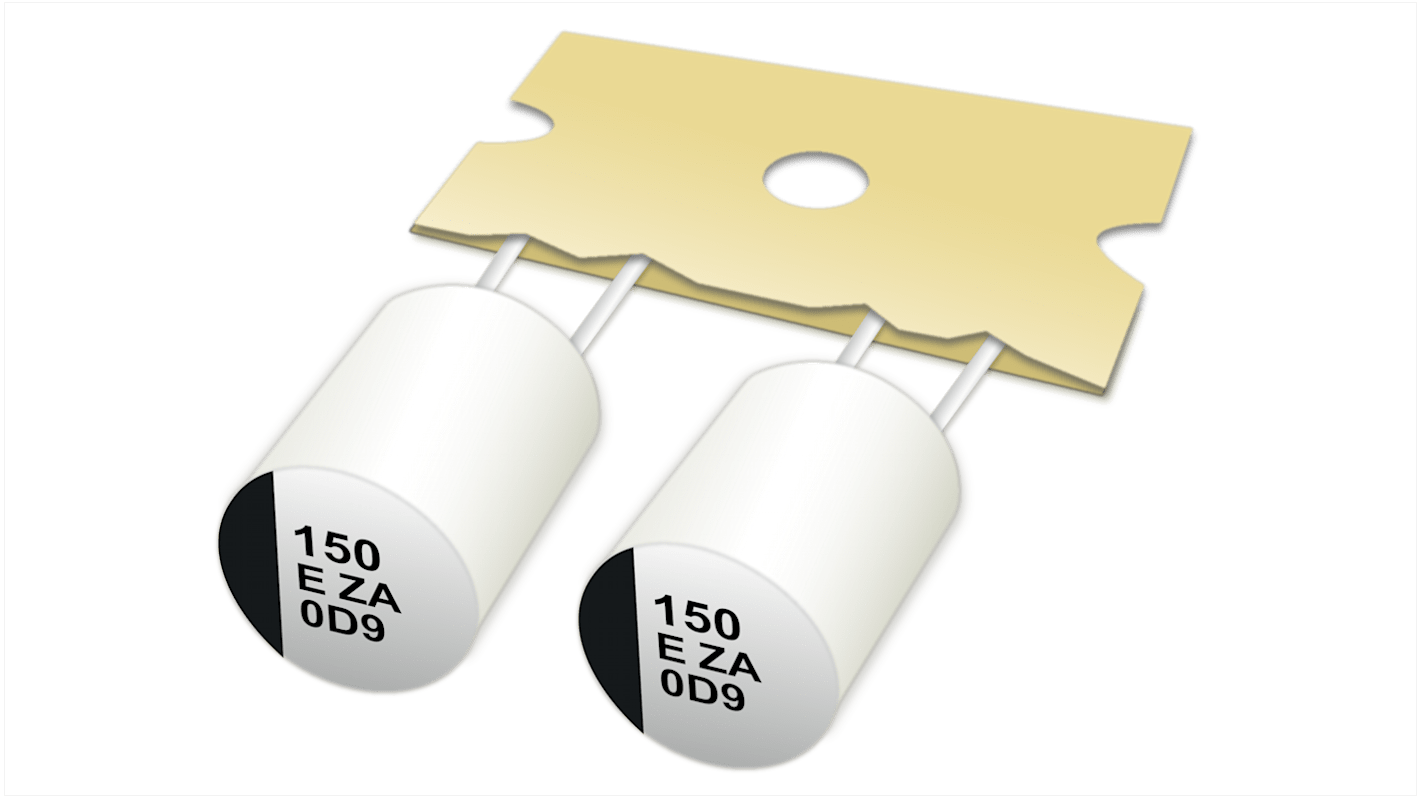

Panasonic 150μF Hybrid Aluminium Electrolytic Capacitor 35V dc, Radial, Through Hole - EEHAZT1V151B

View all Aluminium Capacitors

Subtotal (1 box of 1000 units)*

£520.00

(exc. VAT)

£620.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,000 unit(s) ready to ship
  • Plus 999,998,000 unit(s) shipping from 05 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
1000 +£0.52£520.00

*price indicative

Sponsored
A Panasonic surface mount resistor on a burgandy background
Panasonic Brand Logo
Panasonic Aluminium Capacitors & Surface Mount Resistors
Build reliable, compact designs with Panasonic’s trusted aluminium capacitors and precision surface mount resistors.
Shop Here
RS Stock No.:
210-5786
Mfr. Part No.:
EEHAZT1V151B
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Capacitance

150µF

Voltage

35V dc

Mounting Type

Radial, Through Hole

Technology

Hybrid

Dimensions

8 (Dia.) x 9.5 x 0.6mm

Length

9.5mm

Diameter

8mm

Maximum Operating Temperature

+125°C

Lead Pitch

3.5mm

Series

ZT-A

Automotive Standard

AEC-Q200

Polarised

Polar

Tolerance

±20%

COO (Country of Origin):
JP
The Panasonic ZT series conductive polymer hybrid aluminium electrolytic capacitor has ±20 % tolerance and used 35 V voltage. It has 150μF of capacitance which size code is F and has and ultra low ESR between 16 mΩ and 32 mΩ.

Endurance 4000 h at 125 ℃ (High ripple current)
Taping products for automatic insertion
AEC-Q200 compliant
