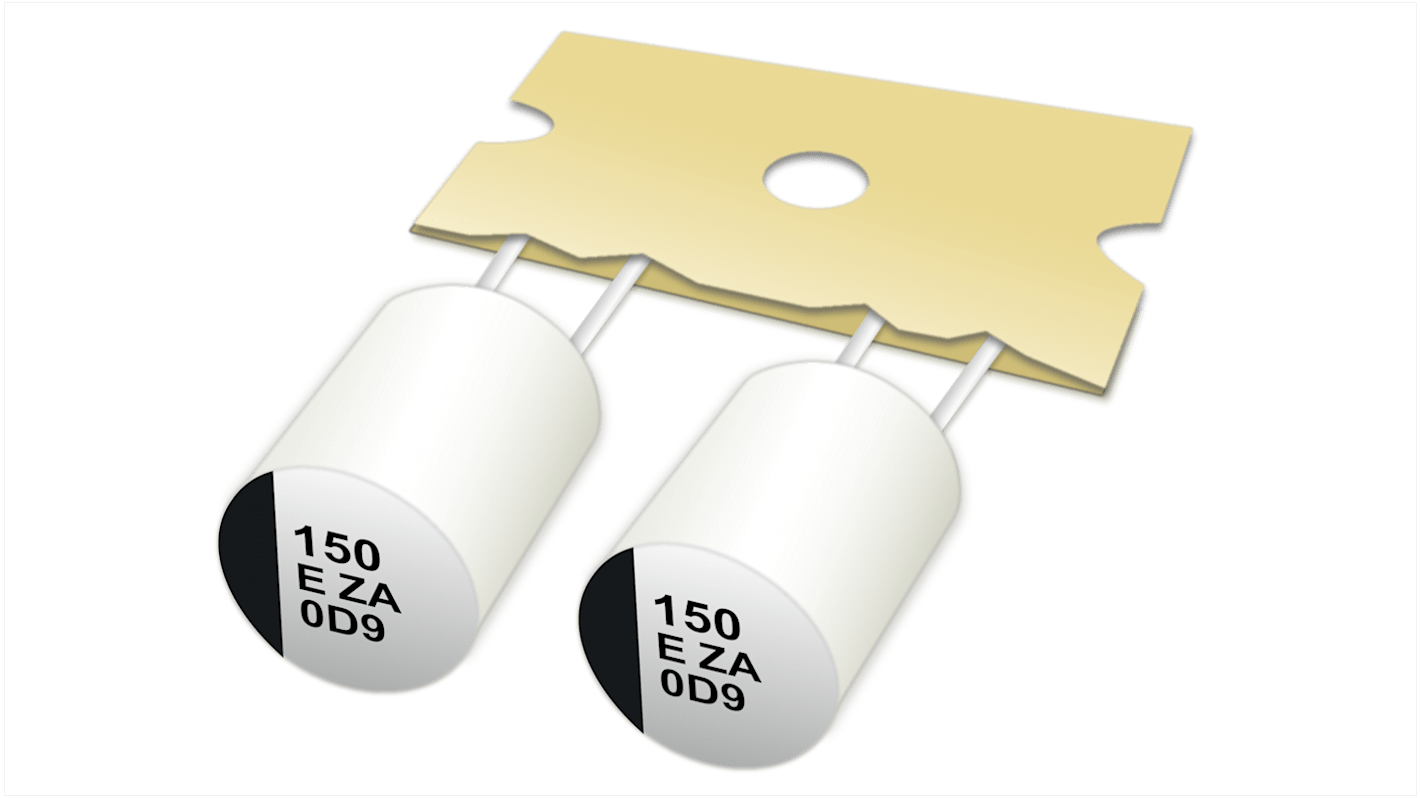

Panasonic 270μF Hybrid Aluminium Electrolytic Capacitor 35V dc, Radial, Through Hole - EEHAZT1V271B

View all Aluminium Capacitors

Subtotal (1 box of 500 units)*

£339.00

(exc. VAT)

£407.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,500 unit(s) shipping from 05 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
500 +£0.678£339.00

*price indicative

Sponsored
A Panasonic surface mount resistor on a burgandy background
Panasonic Brand Logo
Panasonic Aluminium Capacitors & Surface Mount Resistors
Build reliable, compact designs with Panasonic’s trusted aluminium capacitors and precision surface mount resistors.
Shop Here
RS Stock No.:
210-5788
Mfr. Part No.:
EEHAZT1V271B
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Capacitance

270µF

Voltage

35V dc

Mounting Type

Radial, Through Hole

Technology

Hybrid

Dimensions

10 (Dia.) x 9.5 x 0.6mm

Length

9.5mm

Diameter

10mm

Maximum Operating Temperature

+125°C

Lead Pitch

5mm

Automotive Standard

AEC-Q200

Polarised

Polar

Tolerance

±20%

Series

ZT-A

COO (Country of Origin):
JP
The Panasonic ZT series conductive polymer hybrid aluminium electrolytic capacitor has ±20 % tolerance and used 35 V voltage. It has 270μF of capacitance which size code is G12 and has and ultra low ESR between 16 mΩ and 32 mΩ.

Endurance 4000 h at 125 ℃ (High ripple current)
Taping products for automatic insertion
AEC-Q200 compliant
