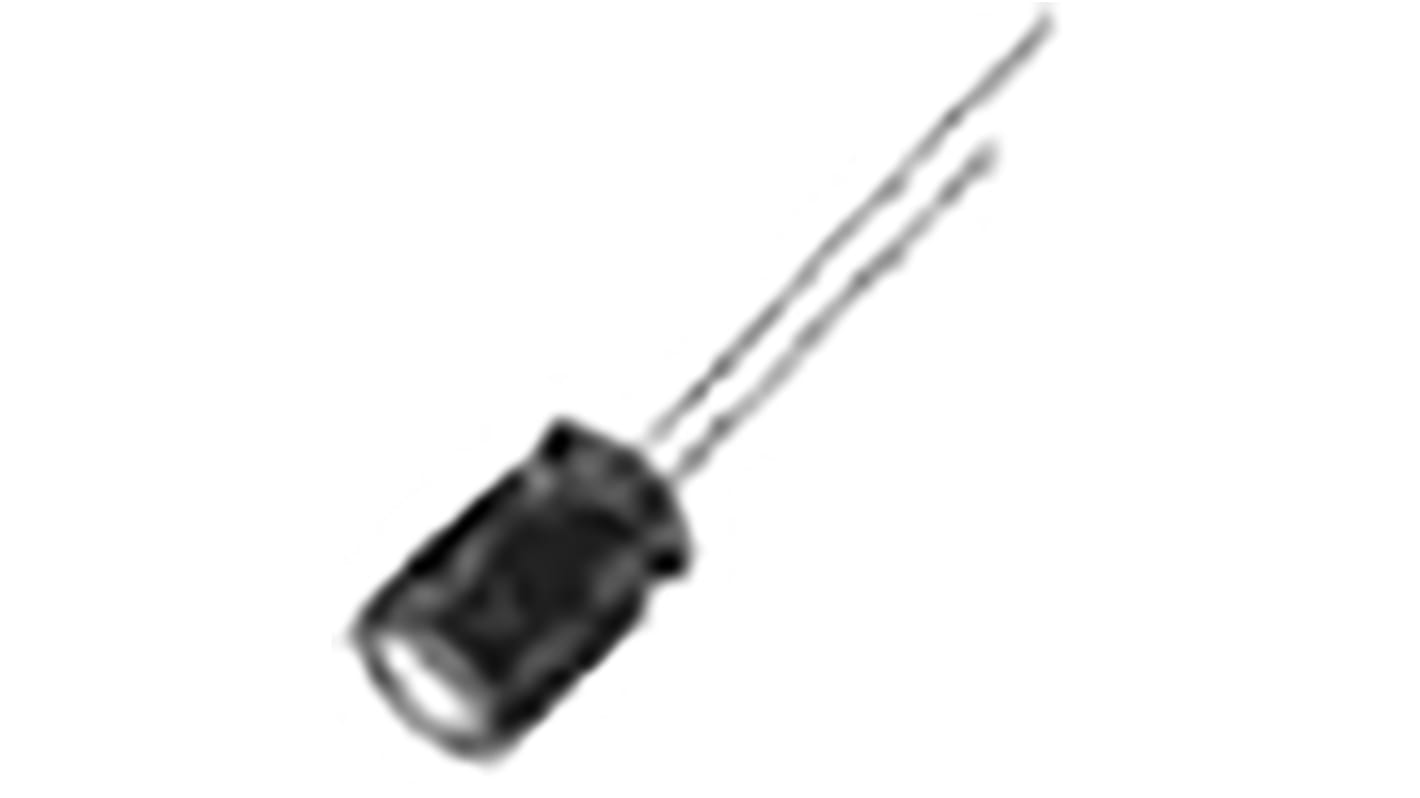

Panasonic 22μF Aluminium Electrolytic Capacitor 25V dc, Radial, Through Hole - ECEA1EN220X
- RS Stock No.:
- 176-3721
- Mfr. Part No.:
- ECEA1EN220X
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 bag of 200 units)*
£18.60
(exc. VAT)
£22.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1,600 unit(s) shipping from 29 December 2025
- Plus 2,000 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 200 - 400 | £0.093 | £18.60 |
| 600 + | £0.067 | £13.40 |
*price indicative
- RS Stock No.:
- 176-3721
- Mfr. Part No.:
- ECEA1EN220X
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 22µF | |
| Voltage | 25V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 5 Dia. x 11mm | |
| Height | 11mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 5mm | |
| Maximum Operating Temperature | +85°C | |
| Lead Pitch | 2mm | |
| Lifetime | 1000h | |
| Leakage Current | 3 μA | |
| Polarised | Bi-Polar | |
| Tolerance | ±20% | |
| Series | SU-A (Bi-Polar) | |
| Ripple Current | 60mArms | |
| Dissipation Factor | 0.15% | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 22µF | ||
Voltage 25V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 5 Dia. x 11mm | ||
Height 11mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 5mm | ||
Maximum Operating Temperature +85°C | ||
Lead Pitch 2mm | ||
Lifetime 1000h | ||
Leakage Current 3 μA | ||
Polarised Bi-Polar | ||
Tolerance ±20% | ||
Series SU-A (Bi-Polar) | ||
Ripple Current 60mArms | ||
Dissipation Factor 0.15% | ||
Panasonic Bipolar Electrolytic Capacitor
The Panasonic SU series bipolar electrolytic capacitor has 22μF capacitance and is through-hole mount. It has a diameter of 5mm, a height of 11mm and a lead pitch of 2mm. This component is made from aluminium and the body shape is radial lead type. It requires a voltage of 25VDC and a ripple current of 60mA.
Features and Benefits
• Endurance of 2000hrs at 85°C
• Leakage current is 3μA
• 1000hrs lifetime
• Operating temperature ranges between -40°C and 85°C
• Tolerance is ±20%
• Leakage current is 3μA
• 1000hrs lifetime
• Operating temperature ranges between -40°C and 85°C
• Tolerance is ±20%
Applications
• Computer motherboards
• Domestic appliances
• Power supplies
• Domestic appliances
• Power supplies
