KEMET 2200μF Aluminium Electrolytic Capacitor 40V dc, Axial, Through Hole - PEG124KJ422AQL1
- RS Stock No.:
- 174-4569
- Mfr. Part No.:
- PEG124KJ422AQL1
- Brand:
- KEMET
Available to back order for despatch when stock is available
Price Each
£6.09
(exc. VAT)
£7.31
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 9 | £6.09 |
| 10 - 24 | £5.73 |
| 25 - 49 | £5.35 |
| 50 - 99 | £5.00 |
| 100 + | £4.54 |
- RS Stock No.:
- 174-4569
- Mfr. Part No.:
- PEG124KJ422AQL1
- Brand:
- KEMET
Technical Reference
Legislation and Compliance
Product Details

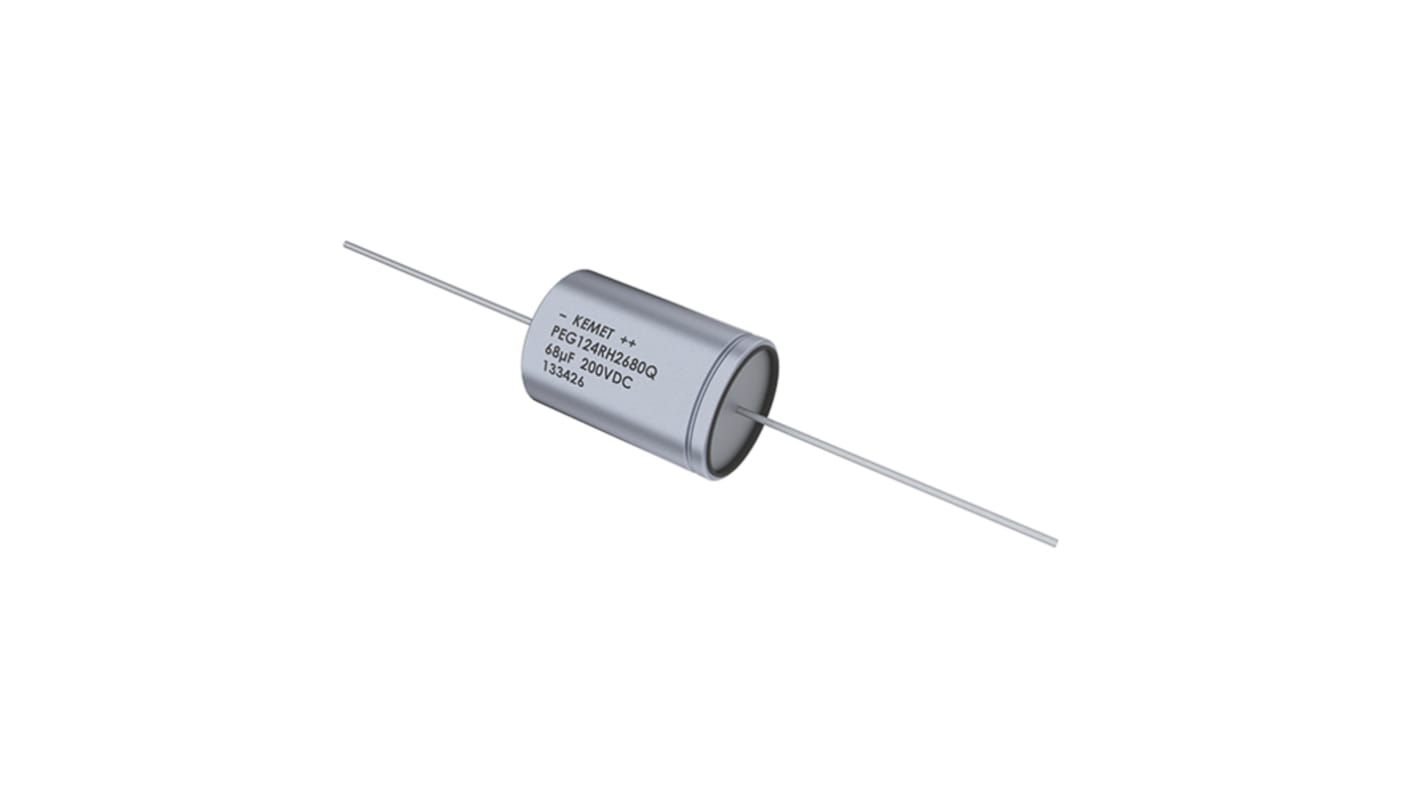

The KEMET PEG124KJ422AQL1 is axial Aluminium Electrolytic Capacitors PEG124 is an electrolytic capacitor with very long-life and outstanding electrical performance. The device has a polarized all-welded design, tinned copper wire leads, a negative pole connected to the case, and plastic insulation.
Operating temperature of +125°C and +105°C
Very long life, up to 27, 500 hours at +105°C
Low ESR
Low ESL
Polarized all-welded design
Very long life, up to 27, 500 hours at +105°C
Low ESR
Low ESL
Polarized all-welded design
Specifications
Attribute | Value |
|---|---|
| Capacitance | 2200µF |
| Voltage | 40V dc |
| Mounting Type | Axial, Through Hole |
| Technology | Aluminium Electrolytic |
| Dimensions | 20 Dia. x 37mm |
| Length | 37mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 20mm |
| Maximum Operating Temperature | +125°C |
| Lead Pitch | 43mm |
| Lifetime | 6000h |
| Tolerance | -10 → +30% |
| Leakage Current | 264 μA |
| Polarised | Polar |
| Series | PEG124 |
| Ripple Current | 9.6A |
| Equivalent Series Resistance | 60mΩ |
