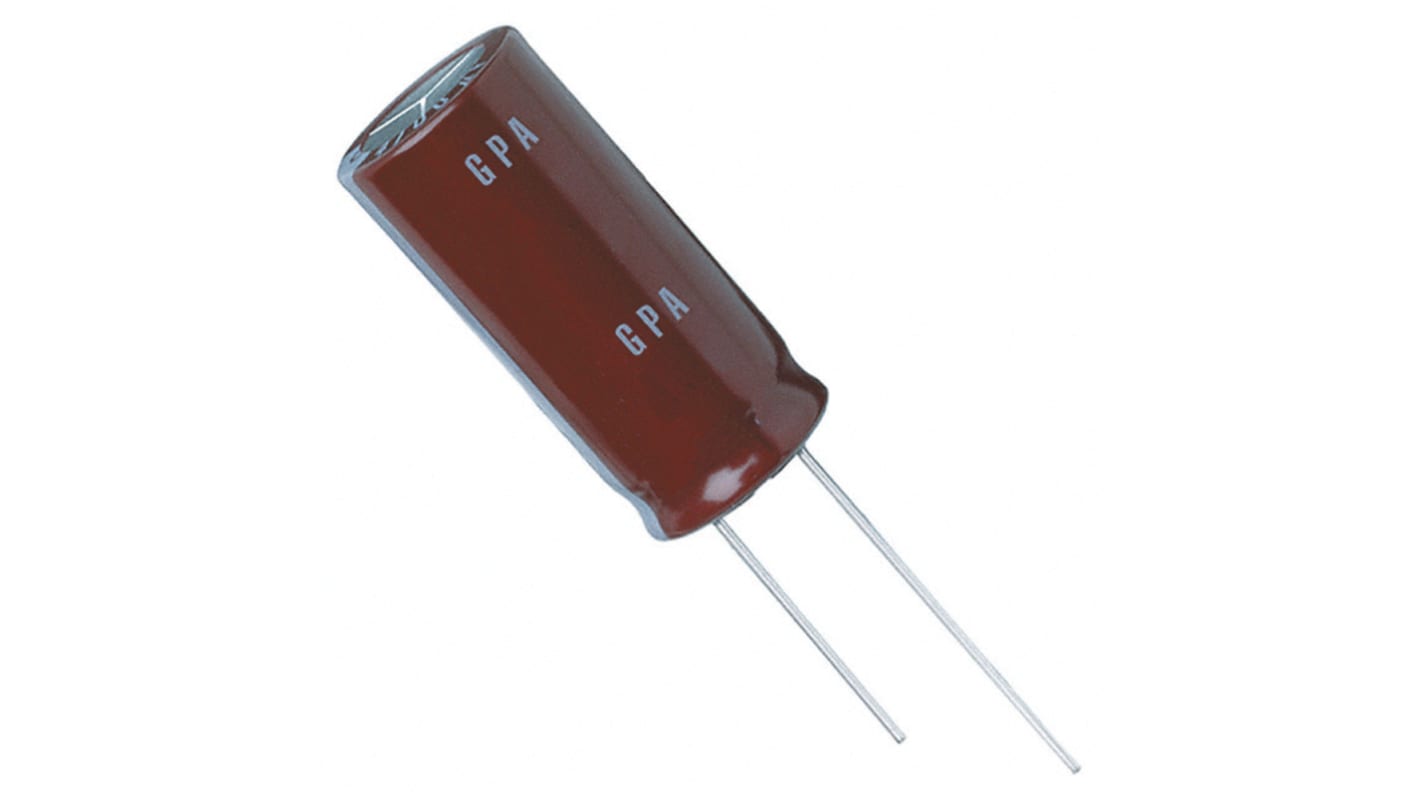

CHEMI-CON 2200μF Aluminium Electrolytic Capacitor 50V dc, Radial, Through Hole - EGPA500ELL222ML40S

View all Aluminium Capacitors

Subtotal (1 box of 250 units)*

£226.75

(exc. VAT)

£272.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 13 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
250 +£0.907£226.75

*price indicative

RS Stock No.:
170-0594
Mfr. Part No.:
EGPA500ELL222ML40S
Brand:
CHEMI-CON
Find similar products by selecting one or more attributes.
Select all

Brand

CHEMI-CON

Capacitance

2200µF

Voltage

50V dc

Mounting Type

Radial, Through Hole

Technology

Aluminium Electrolytic

Dimensions

16 (Dia.) x 40mm

Length

40mm

Minimum Operating Temperature

-40°C

Diameter

16mm

Maximum Operating Temperature

+125°C

Lead Pitch

7.5mm

Lifetime

5000h

Tolerance

±20%

Ripple Current

3720mArms

Series

GPA

Leakage Current

4 μA

Equivalent Series Resistance

600mΩ

COO (Country of Origin):
JP

GPA Series Miniature Aluminium Electrolytic Capacitors


GPA Series miniature Al electrolytic capacitors are downsized, low impedance and high-ripple current version of GXE series
Guaranteed short time at 150℃ and long life at 125℃
Specified ESR after endurance test
For high ripple current automotive applications, (Direct fuel injection and electric power steering etc.)
