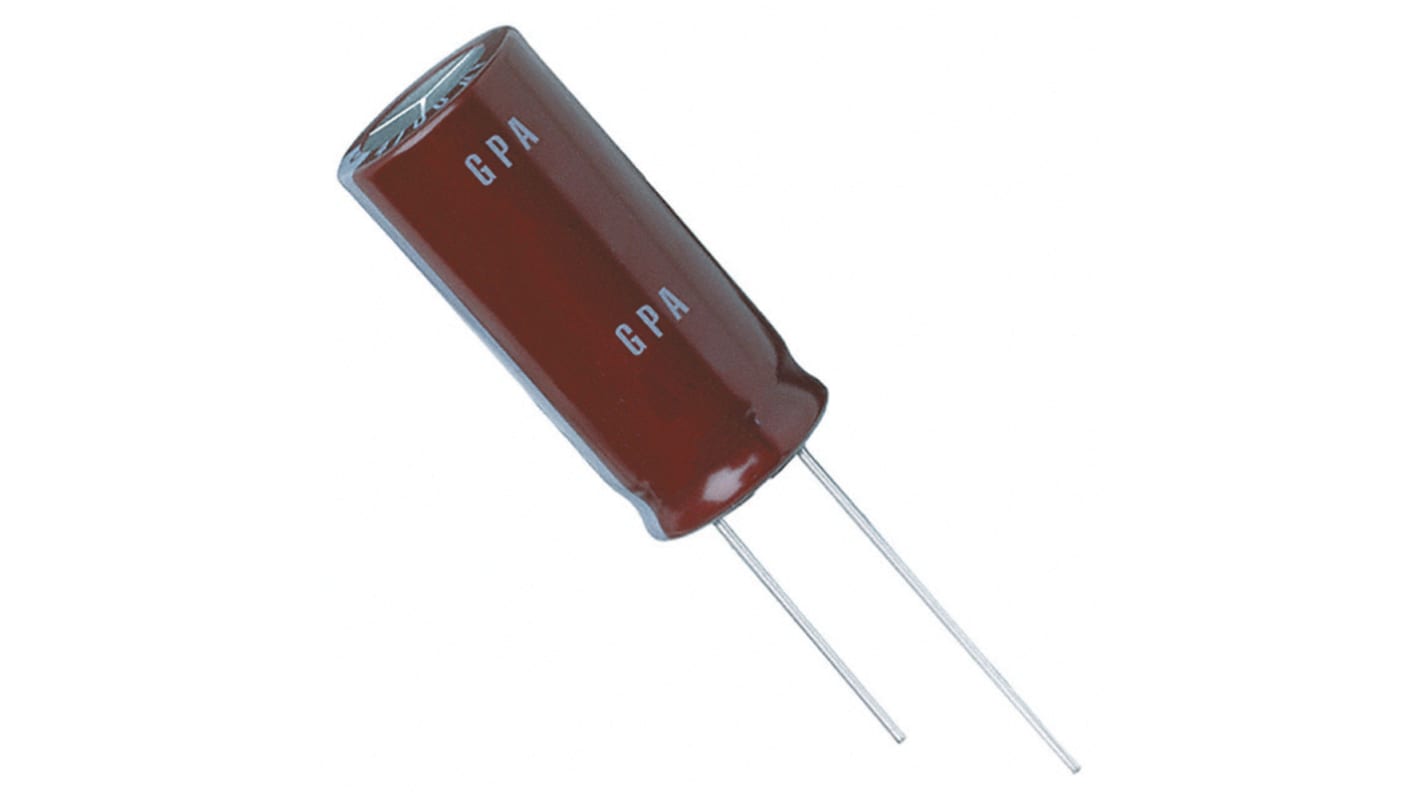

CHEMI-CON 3300 μF Capacitor 35V dc, Radial, Through Hole - EGPA350ELL332ML40S Radial Lead

Subtotal (1 box of 250 units)*

£372.75

(exc. VAT)

£447.25

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 250 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
250 +£1.491£372.75

*price indicative

RS Stock No.:
170-0585
Mfr. Part No.:
EGPA350ELL332ML40S
Brand:
CHEMI-CON
Find similar products by selecting one or more attributes.
Select all

Brand

CHEMI-CON

Product Type

Capacitor

Capacitance

3300μF

Voltage

35V dc

Construction

Radial Can

Mount Type

Radial, Through Hole

Packaging

Bulk

Height

41.5mm

Polarity

Polar

Length

40mm

Minimum Operating Temperature

-40°C

Diameter

16mm

Termination Type

Radial Lead

Pin Count

2

Capacitor Ripple Current

4A

Maximum Operating Temperature

125°C

Lead Pitch

7.5mm

Standards/Approvals

RoHS

Lifetime

5000 h

Tolerance

±20 %

Automotive Standard

AEC-Q200

Leakage Current

4μA

Series

GPA

Equivalent Series Resistance ESR

600mΩ

Dissipation Factor

12%

COO (Country of Origin):
JP

GPA Series Miniature Aluminium Electrolytic Capacitors


GPA Series miniature Al electrolytic capacitors are downsized, low impedance and high-ripple current version of GXE series

Guaranteed short time at 150℃ and long life at 125℃

Specified ESR after endurance test

For high ripple current automotive applications, (Direct fuel injection and electric power steering etc.)
