Nichicon 100μF Aluminium Electrolytic Capacitor 400V dc, Snap-In - LLS2G101MELZ
- RS Stock No.:
- 167-1412
- Mfr. Part No.:
- LLS2G101MELZ
- Brand:
- Nichicon
Subtotal (1 bag of 250 units)*
£309.00
(exc. VAT)
£370.75
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 250 unit(s) shipping from 17 April 2026
- Plus 999,999,500 unit(s) shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
250 + | £1.236 | £309.00 |
*price indicative
- RS Stock No.:
- 167-1412
- Mfr. Part No.:
- LLS2G101MELZ
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Nichicon | |
Capacitance | 100µF | |
Voltage | 400V dc | |
Mounting Type | Snap-In | |
Technology | Aluminium Electrolytic | |
Dimensions | 22 (Dia.) x 25mm | |
Height | 25mm | |
Minimum Operating Temperature | -25°C | |
Diameter | 22mm | |
Maximum Operating Temperature | +85°C | |
Lead Pitch | 10mm | |
Lifetime | 3000h | |
Ripple Current | 950mA | |
Leakage Current | 0.6 mA | |
Tolerance | ±20% | |
Series | LS | |
Select all | ||
---|---|---|
Brand Nichicon | ||
Capacitance 100µF | ||
Voltage 400V dc | ||
Mounting Type Snap-In | ||
Technology Aluminium Electrolytic | ||
Dimensions 22 (Dia.) x 25mm | ||
Height 25mm | ||
Minimum Operating Temperature -25°C | ||
Diameter 22mm | ||
Maximum Operating Temperature +85°C | ||
Lead Pitch 10mm | ||
Lifetime 3000h | ||
Ripple Current 950mA | ||
Leakage Current 0.6 mA | ||
Tolerance ±20% | ||
Series LS | ||
- COO (Country of Origin):
- JP

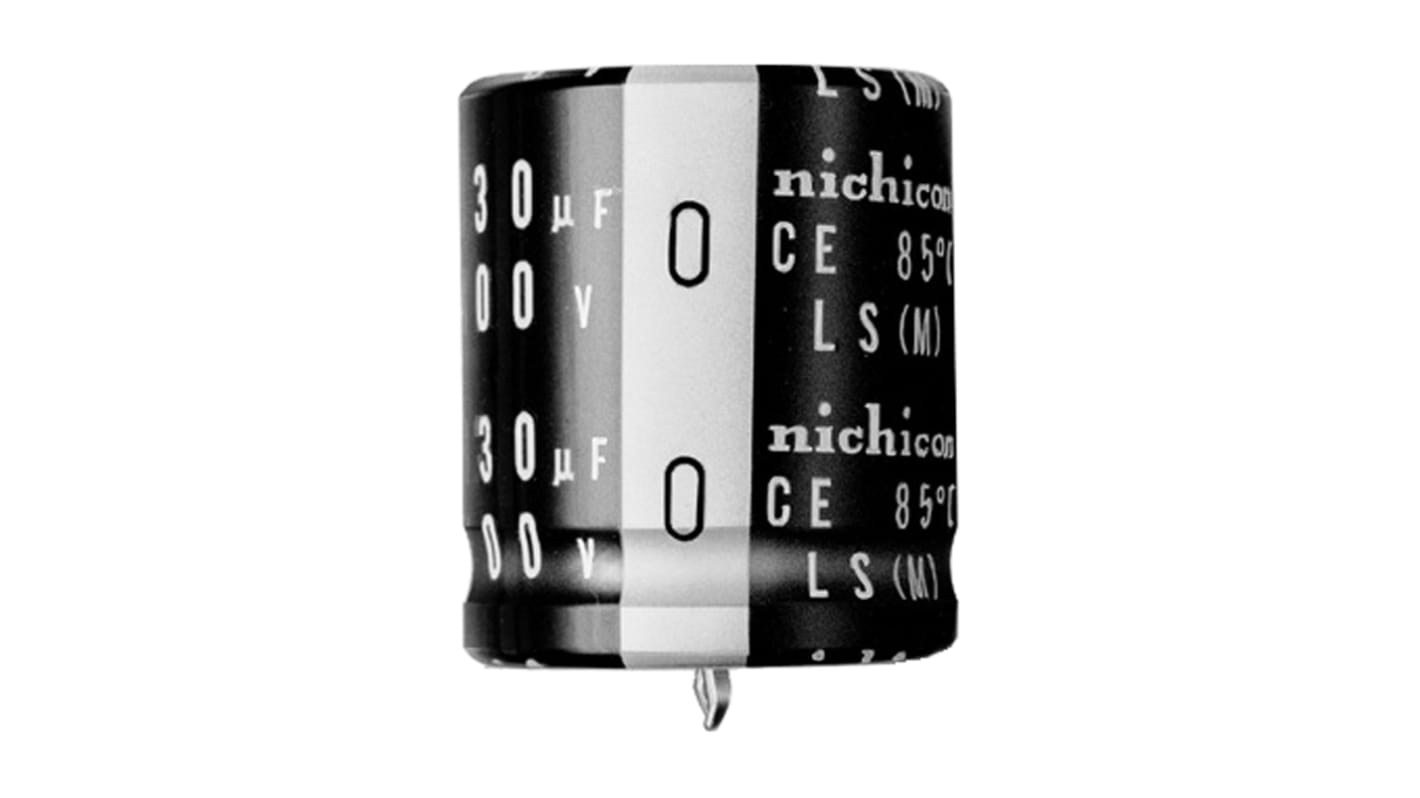

Nichicon LS Series, General Purpose, Snap-In Aluminium Electrolytic Capacitors
Nichicon LS series are standard 85⁰C snap-in aluminium electrolytic capacitors. They can withstand 3000 h of rated ripple current with voltage ranging from 16 V to 450 V. These high performance and high capacitance parts are ideal for filtering and storing input current.
