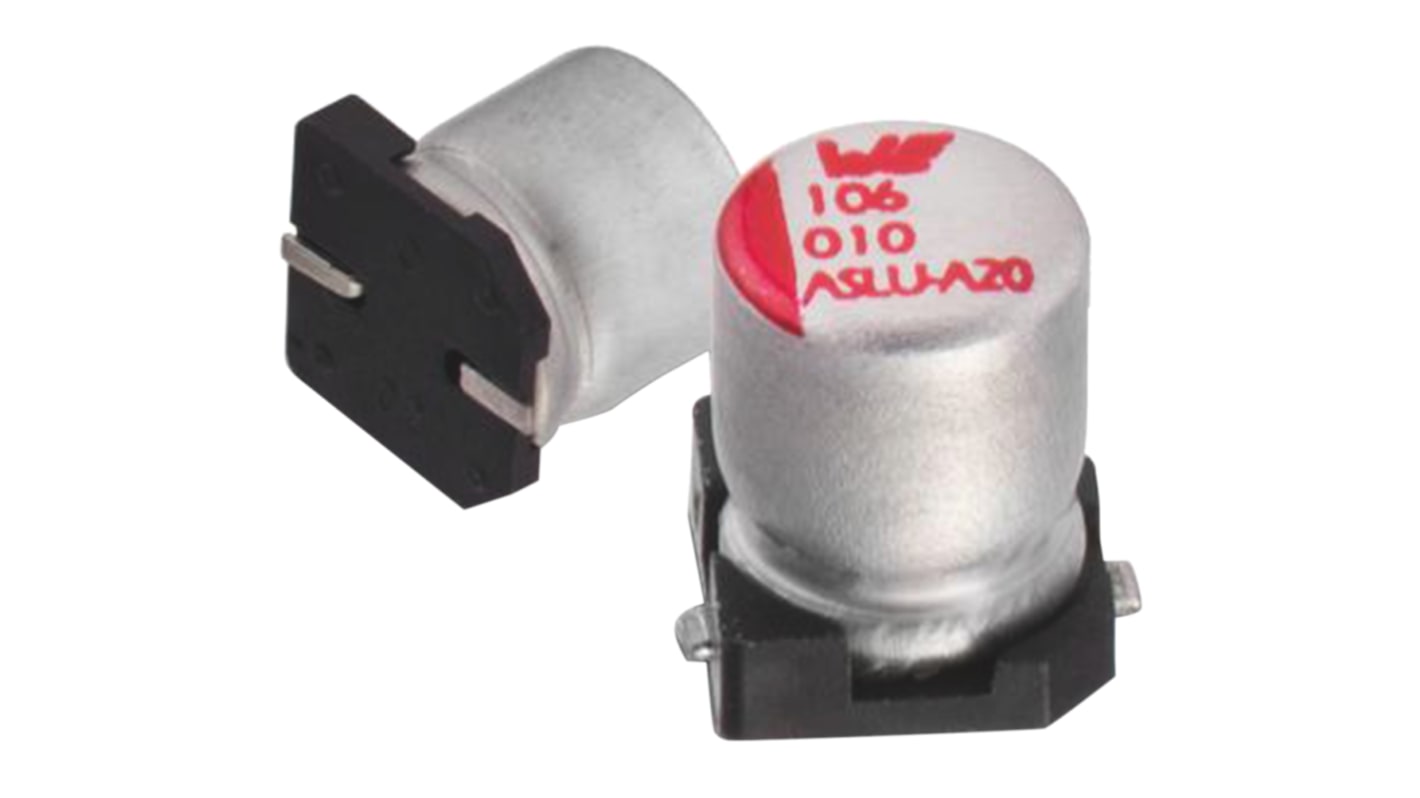

Wurth Elektronik 220μF Aluminium Electrolytic Capacitor 6.3V dc, Surface Mount - 865090149007
- RS Stock No.:
- 163-5754
- Mfr. Part No.:
- 865090149007
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 1000 units)*
£225.00
(exc. VAT)
£270.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £0.225 | £225.00 |
*price indicative
- RS Stock No.:
- 163-5754
- Mfr. Part No.:
- 865090149007
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Capacitance | 220µF | |
| Voltage | 6.3V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 6.5 (Dia.) x 7.85mm | |
| Height | 7.85mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 6.5mm | |
| Maximum Operating Temperature | +85°C | |
| Lifetime | 1000h | |
| Lead Pitch | 2.3mm | |
| Tolerance | ±20% | |
| Leakage Current | 2.772 μA | |
| Polarised | Polar | |
| Ripple Current | 110mA | |
| Series | WCAP-ASLU | |
| Dissipation Factor | 26 | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Capacitance 220µF | ||
Voltage 6.3V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 6.5 (Dia.) x 7.85mm | ||
Height 7.85mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 6.5mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 1000h | ||
Lead Pitch 2.3mm | ||
Tolerance ±20% | ||
Leakage Current 2.772 μA | ||
Polarised Polar | ||
Ripple Current 110mA | ||
Series WCAP-ASLU | ||
Dissipation Factor 26 | ||
- COO (Country of Origin):
- CN
Wurth Elektronik SMD Low Leakage Current WCAP-ASLU Series Capacitors
Wurth Elektronik SMD Low Leakage Current WCAP-ASLU Aluminium Electrolytic Capacitor Series
Load life: 1000h @ +85°C
Operating temperature: -40°C to +85°C
Reflow soldering recommended
Operating temperature: -40°C to +85°C
Reflow soldering recommended
