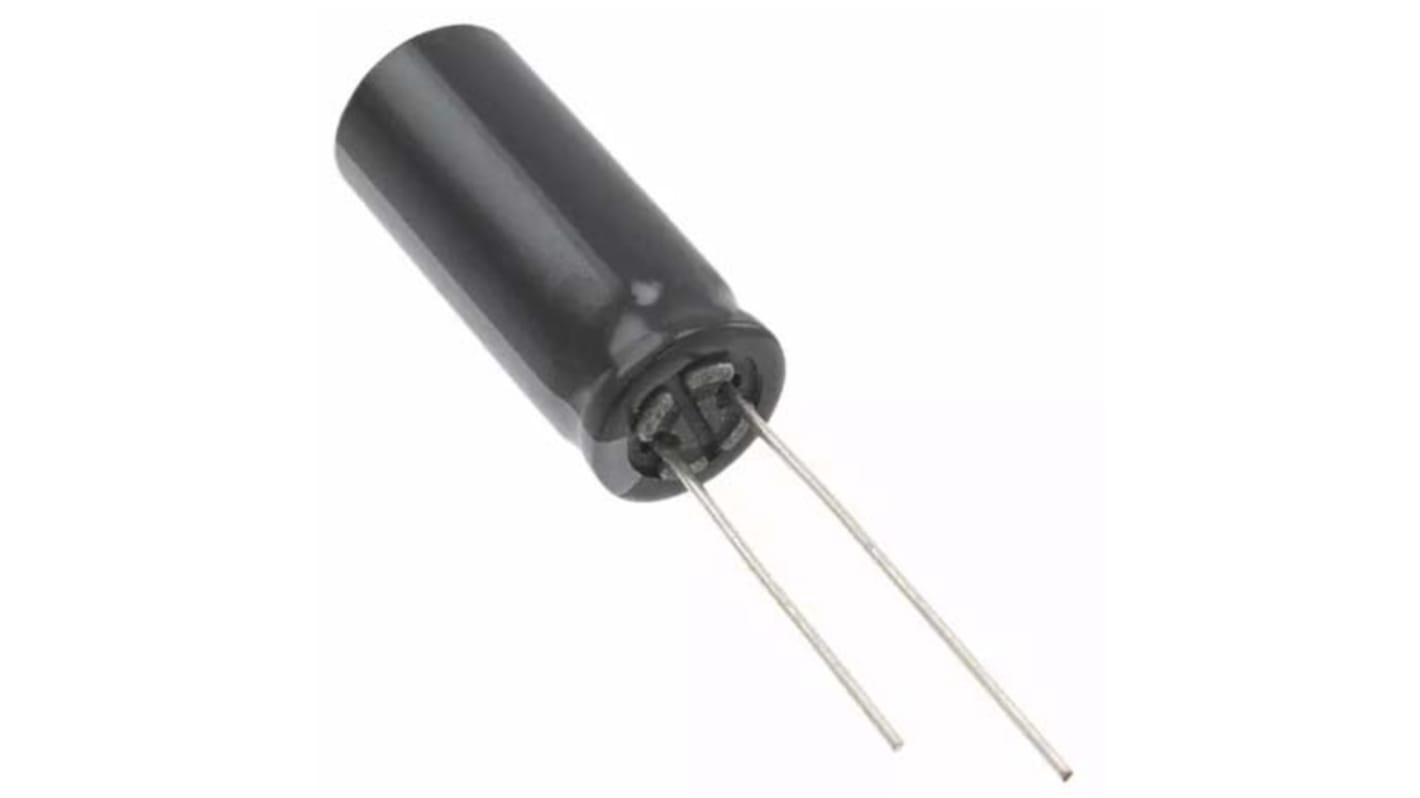

Panasonic 820μF Aluminium Electrolytic Capacitor 35V dc, Radial, Through Hole - EEUFS1V821
- RS Stock No.:
- 145-8553
- Mfr. Part No.:
- EEUFS1V821
- Brand:
- Panasonic
Available to back order for despatch 09/10/2024
Price Each (In a Pack of 10)
£0.429
(exc. VAT)
£0.515
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 40 | £0.429 | £4.29 |
| 50 - 90 | £0.407 | £4.07 |
| 100 + | £0.293 | £2.93 |
| *price indicative | ||
- RS Stock No.:
- 145-8553
- Mfr. Part No.:
- EEUFS1V821
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Low ESR, Miniaturized (1 size smaller than series FR)
Endurance : 105 °C 5000 h to 10000 h
RoHS compliant
Robust and durable materials used throughout
Easy to install and maintain - integral isolators & flexible connections provided
Endurance : 105 °C 5000 h to 10000 h
RoHS compliant
Robust and durable materials used throughout
Easy to install and maintain - integral isolators & flexible connections provided
Specifications
Attribute | Value |
|---|---|
| Capacitance | 820µF |
| Voltage | 35V dc |
| Mounting Type | Radial, Through Hole |
| Technology | Aluminium Electrolytic |
| Dimensions | 10 (Dia.) x 20mm |
| Height | 20mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 5mm |
| Lifetime | 10000h |
| Polarised | Polar |
| Leakage Current | ≤0.01 CV μA |
| Tolerance | ±20% |
| Ripple Current | 2180mArms |
| Series | FS |
| Dissipation Factor | 0.12% |
