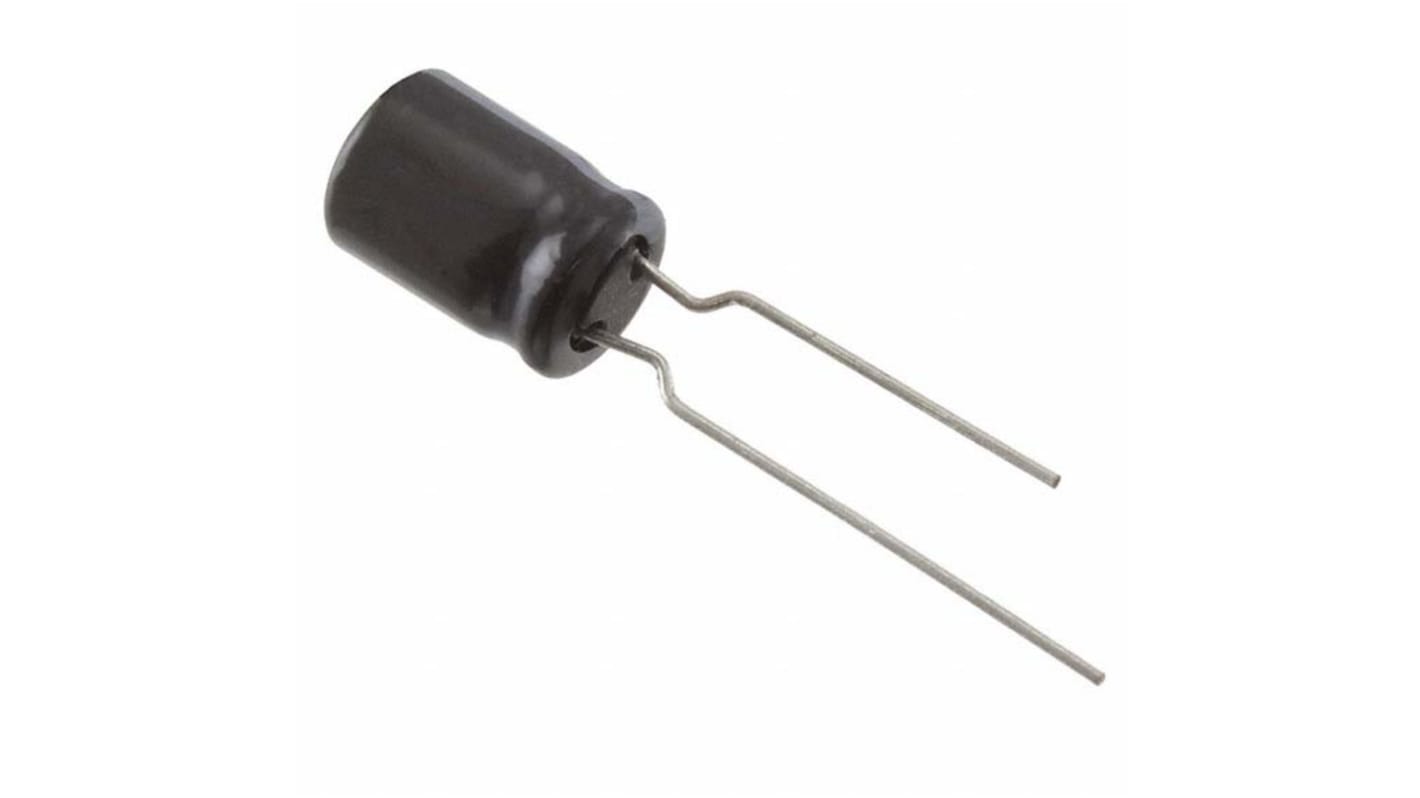

Panasonic 820μF Aluminium Electrolytic Capacitor 10V dc, Radial, Through Hole - EEUFS1A821
- RS Stock No.:
- 145-8387
- Mfr. Part No.:
- EEUFS1A821
- Brand:
- Panasonic
Subtotal (1 box of 200 units)*
£27.20
(exc. VAT)
£32.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,400 unit(s) ready to ship
- Plus 999,996,400 unit(s) shipping from 04 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 200 + | £0.136 | £27.20 |
*price indicative
- RS Stock No.:
- 145-8387
- Mfr. Part No.:
- EEUFS1A821
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 820µF | |
| Voltage | 10V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 8 (Dia.) x 11.5mm | |
| Height | 11.5mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 8mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 6000h | |
| Lead Pitch | 3.5mm | |
| Tolerance | ±20% | |
| Polarised | Polar | |
| Leakage Current | ≤0.01 CV μA | |
| Series | FS | |
| Ripple Current | 950mArms | |
| Dissipation Factor | 0.19% | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 820µF | ||
Voltage 10V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 8 (Dia.) x 11.5mm | ||
Height 11.5mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 8mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 6000h | ||
Lead Pitch 3.5mm | ||
Tolerance ±20% | ||
Polarised Polar | ||
Leakage Current ≤0.01 CV μA | ||
Series FS | ||
Ripple Current 950mArms | ||
Dissipation Factor 0.19% | ||
