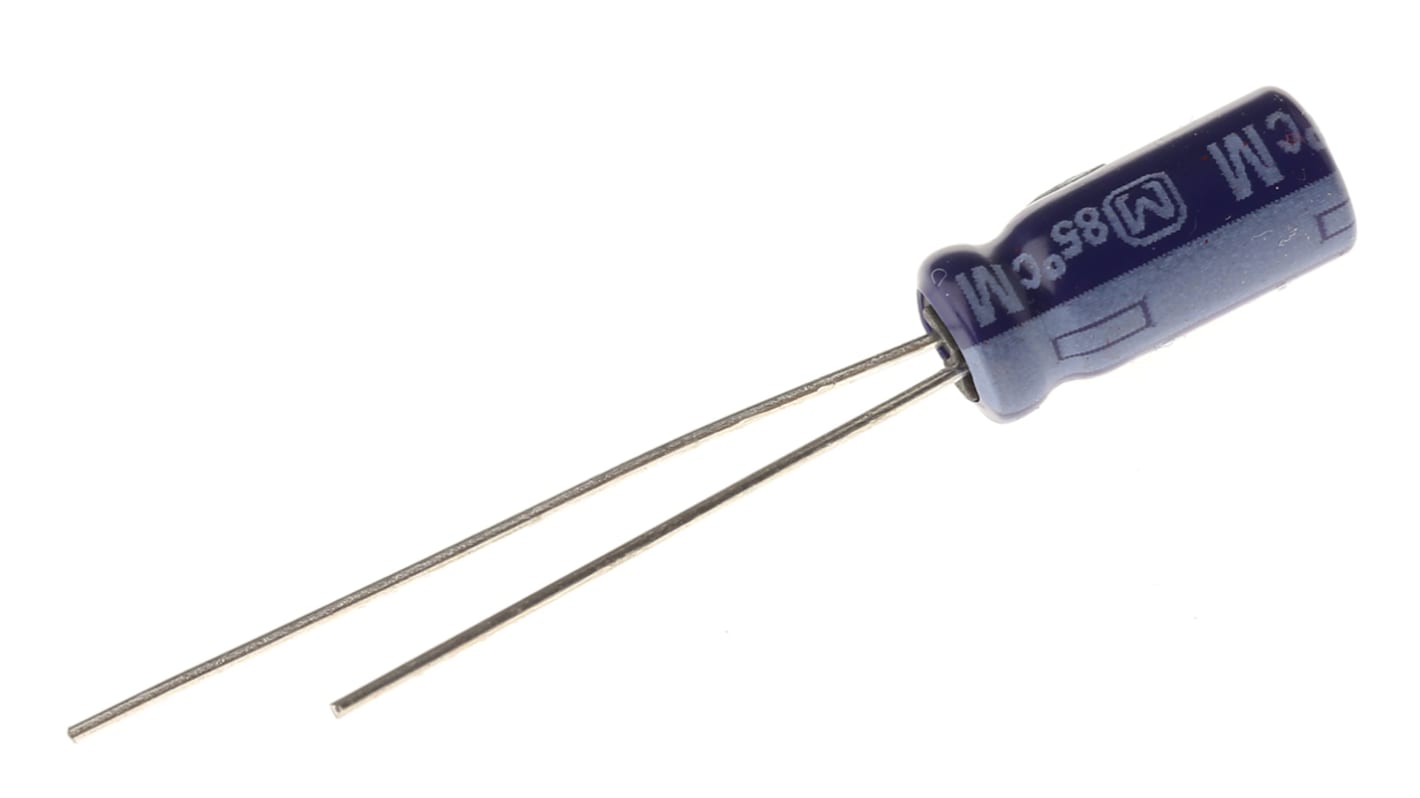

Panasonic 4.7μF Aluminium Electrolytic Capacitor 100V dc, Radial, Through Hole - ECA2AM4R7
- RS Stock No.:
- 107-8143
- Mfr. Part No.:
- ECA2AM4R7
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 bag of 200 units)*
£10.20
(exc. VAT)
£12.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 200 unit(s) ready to ship
- Plus 999,999,600 unit(s) shipping from 05 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 200 - 200 | £0.051 | £10.20 |
| 400 - 600 | £0.044 | £8.80 |
| 800 - 1800 | £0.032 | £6.40 |
| 2000 + | £0.031 | £6.20 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 100)
£0.082
(exc. VAT)
£0.098
(inc. VAT)
- RS Stock No.:
- 107-8143
- Mfr. Part No.:
- ECA2AM4R7
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 4.7µF | |
| Voltage | 100V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 5 (Dia.) x 11mm | |
| Height | 11mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 5mm | |
| Maximum Operating Temperature | +85°C | |
| Lead Pitch | 2mm | |
| Lifetime | 2000h | |
| Ripple Current | 50mA | |
| Polarised | Polar | |
| Series | M-A | |
| Tolerance | ±20% | |
| Leakage Current | 3 μA | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 4.7µF | ||
Voltage 100V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 5 (Dia.) x 11mm | ||
Height 11mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 5mm | ||
Maximum Operating Temperature +85°C | ||
Lead Pitch 2mm | ||
Lifetime 2000h | ||
Ripple Current 50mA | ||
Polarised Polar | ||
Series M-A | ||
Tolerance ±20% | ||
Leakage Current 3 μA | ||
M Series
Panasonic M Series Type A electrolytic capacitors feature excellent endurance of 2000 hours at +85°C.
Smaller than SU series
High reliability
High ripple current
Low impedance
Long life
Fully sleeved
High reliability
High ripple current
Low impedance
Long life
Fully sleeved
Applications
Panasonic M Series Type A electrolytic capacitors are suitable for use in general purpose applications and in industrial instruments due to their high reliability.
