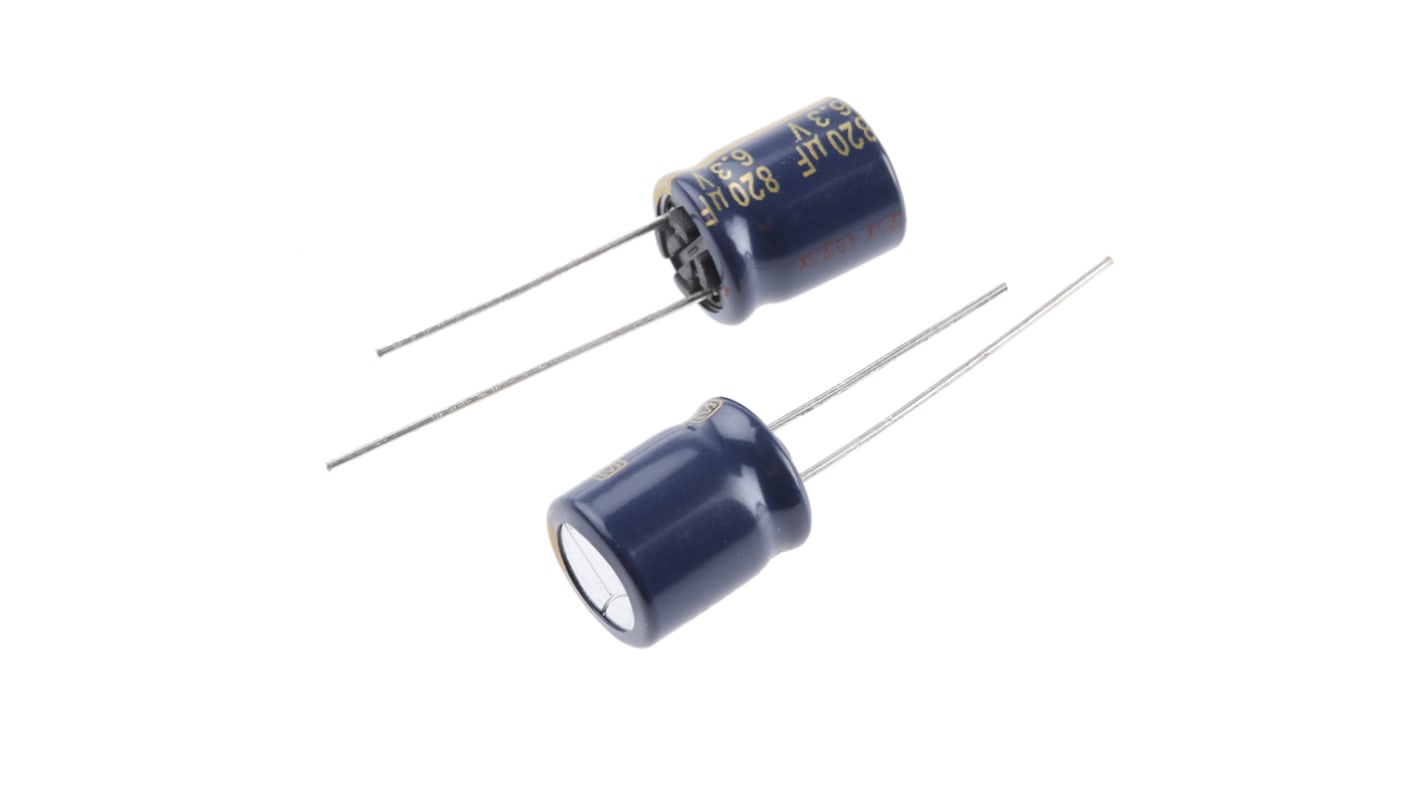

Panasonic 820μF Aluminium Electrolytic Capacitor 6.3V dc, Radial, Through Hole - EEUFC0J821
- RS Stock No.:
- 571-953
- Mfr. Part No.:
- EEUFC0J821
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 5 units)*
£2.29
(exc. VAT)
£2.75
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 195 unit(s) shipping from 03 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.458 | £2.29 |
| 50 - 245 | £0.32 | £1.60 |
| 250 - 495 | £0.206 | £1.03 |
| 500 - 995 | £0.17 | £0.85 |
| 1000 + | £0.164 | £0.82 |
*price indicative
- RS Stock No.:
- 571-953
- Mfr. Part No.:
- EEUFC0J821
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 820µF | |
| Voltage | 6.3V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 10 (Dia.) x 12.5mm | |
| Height | 12.5mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 10mm | |
| Maximum Operating Temperature | +105°C | |
| Lead Pitch | 5mm | |
| Lifetime | 3000h | |
| Ripple Current | 755mA | |
| Equivalent Series Resistance | 90mΩ | |
| Leakage Current | 3 μA | |
| Series | FC Radial | |
| Tolerance | ±20% | |
| Polarised | Polar | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 820µF | ||
Voltage 6.3V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 10 (Dia.) x 12.5mm | ||
Height 12.5mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 10mm | ||
Maximum Operating Temperature +105°C | ||
Lead Pitch 5mm | ||
Lifetime 3000h | ||
Ripple Current 755mA | ||
Equivalent Series Resistance 90mΩ | ||
Leakage Current 3 μA | ||
Series FC Radial | ||
Tolerance ±20% | ||
Polarised Polar | ||
