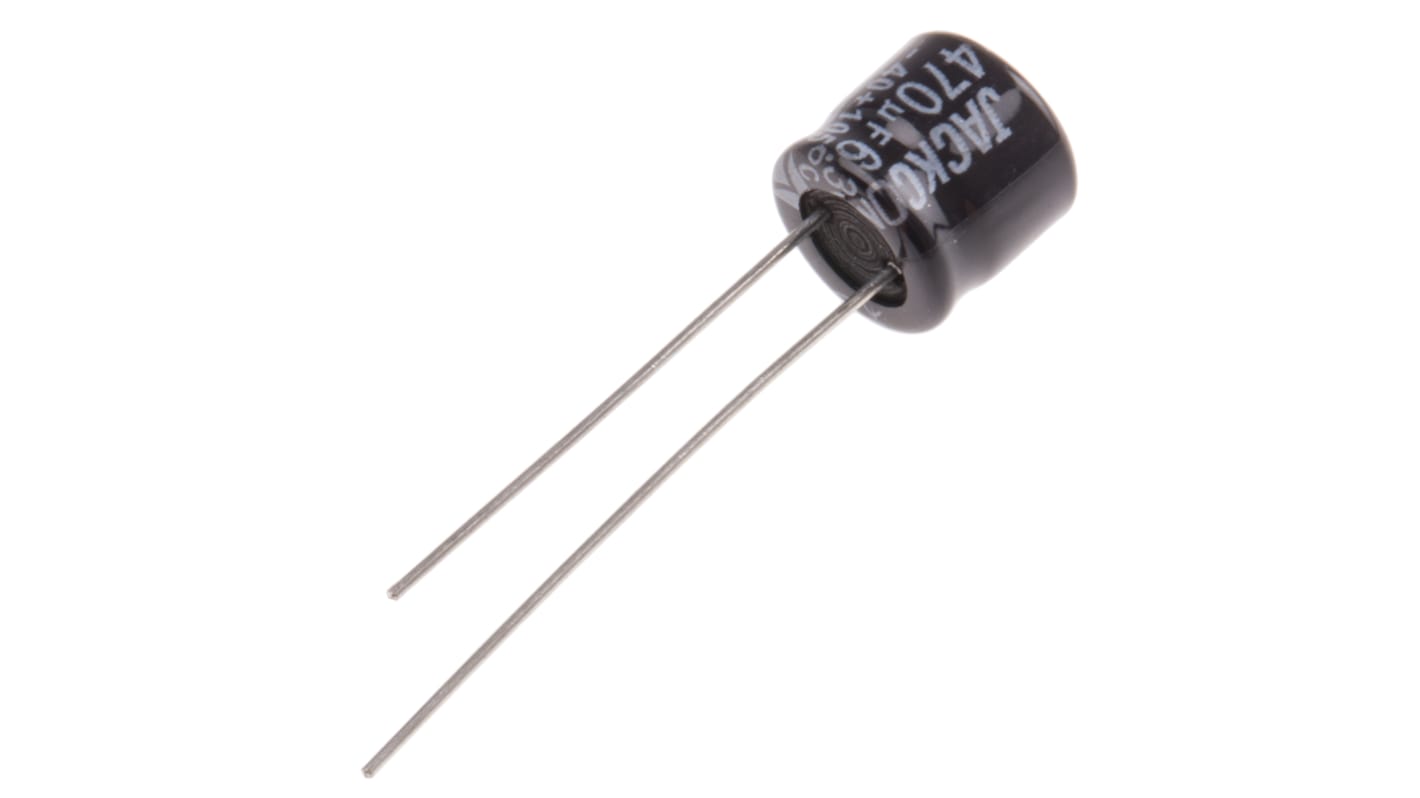

RS PRO 470μF Aluminium Electrolytic Capacitor 6.3V dc, Radial, Through Hole
- RS Stock No.:
- 707-5852
- Brand:
- RS PRO
850 In stock - FREE next working day delivery available
50 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 25)
£0.333
(exc. VAT)
£0.40
(inc. VAT)
| Units | Per unit | Per Pack* |
| 25 - 75 | £0.333 | £8.325 |
| 100 - 225 | £0.31 | £7.75 |
| 250 - 475 | £0.284 | £7.10 |
| 500 - 975 | £0.26 | £6.50 |
| 1000 + | £0.236 | £5.90 |
| *price indicative | ||
- RS Stock No.:
- 707-5852
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS Aluminium 7 mm Radial Capacitors
Specifications
Attribute | Value |
|---|---|
| Capacitance | 470µF |
| Voltage | 6.3V dc |
| Mounting Type | Radial, Through Hole |
| Technology | Aluminium Electrolytic |
| Dimensions | 8 (Dia.) x 7mm |
| Height | 7mm |
| Length | 7mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 1000h |
| Lead Pitch | 3.5mm |
| Ripple Current | 180mA |
| Leakage Current | <=0.01 CV or 3 μA @ 1 min |
| Series | RS |
| Tolerance | ±20% |
| Polarised | Polar |
| Dissipation Factor | 23% |
