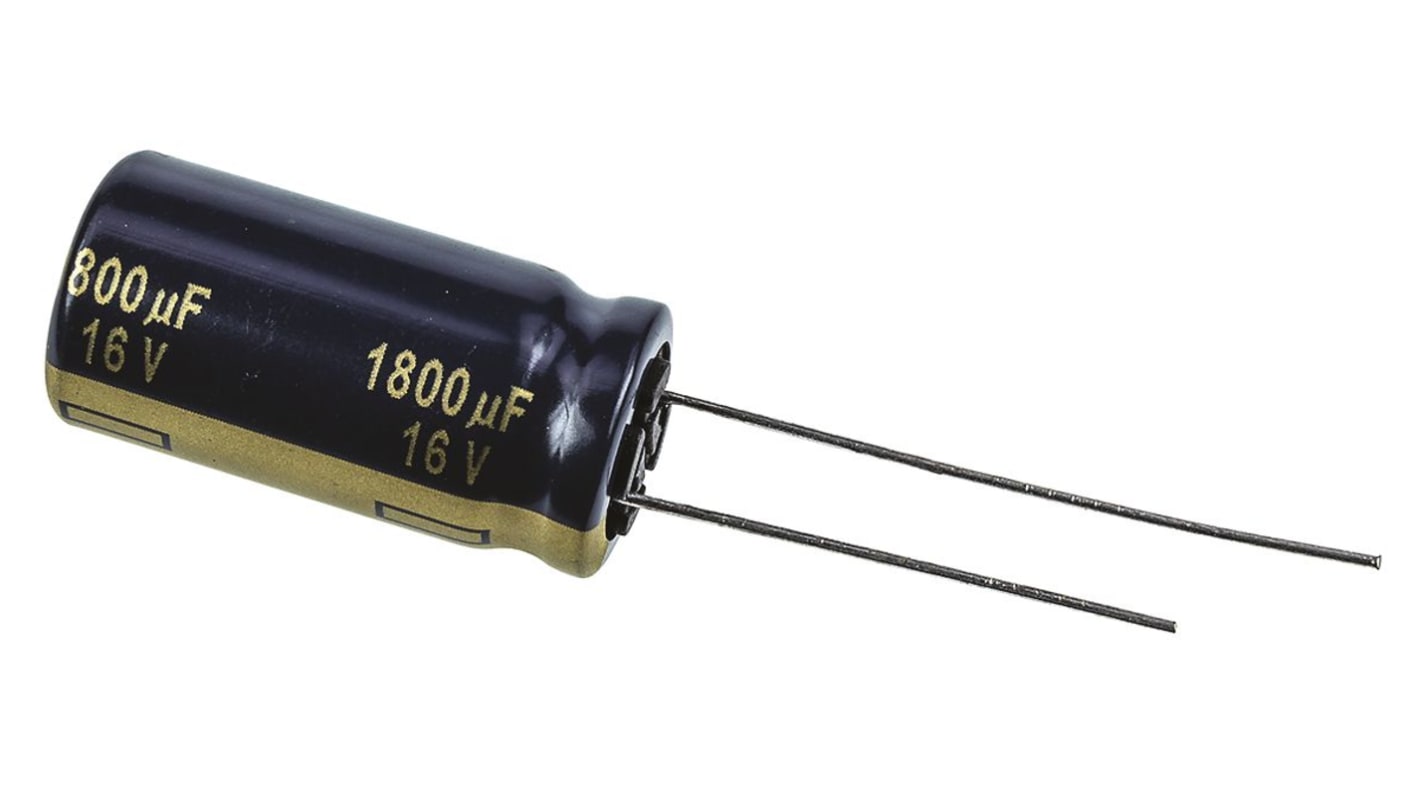

Panasonic 1800μF Aluminium Electrolytic Capacitor 16V dc, Radial, Through Hole - EEUFC1C182
- RS Stock No.:
- 571-151
- Mfr. Part No.:
- EEUFC1C182
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 5 units)*
£4.28
(exc. VAT)
£5.135
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
- Plus 330 unit(s) shipping from 09 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.856 | £4.28 |
| 50 - 245 | £0.676 | £3.38 |
| 250 - 495 | £0.50 | £2.50 |
| 500 - 995 | £0.486 | £2.43 |
| 1000 + | £0.474 | £2.37 |
*price indicative
- RS Stock No.:
- 571-151
- Mfr. Part No.:
- EEUFC1C182
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 1800µF | |
| Voltage | 16V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 12.5 (Dia.) x 25mm | |
| Height | 25mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 12.5mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 5000h | |
| Lead Pitch | 5mm | |
| Polarised | Polar | |
| Tolerance | ±20% | |
| Leakage Current | 3 μA | |
| Equivalent Series Resistance | 30mΩ | |
| Series | FC Radial | |
| Ripple Current | 1.945A | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 1800µF | ||
Voltage 16V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 12.5 (Dia.) x 25mm | ||
Height 25mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 12.5mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 5000h | ||
Lead Pitch 5mm | ||
Polarised Polar | ||
Tolerance ±20% | ||
Leakage Current 3 μA | ||
Equivalent Series Resistance 30mΩ | ||
Series FC Radial | ||
Ripple Current 1.945A | ||
