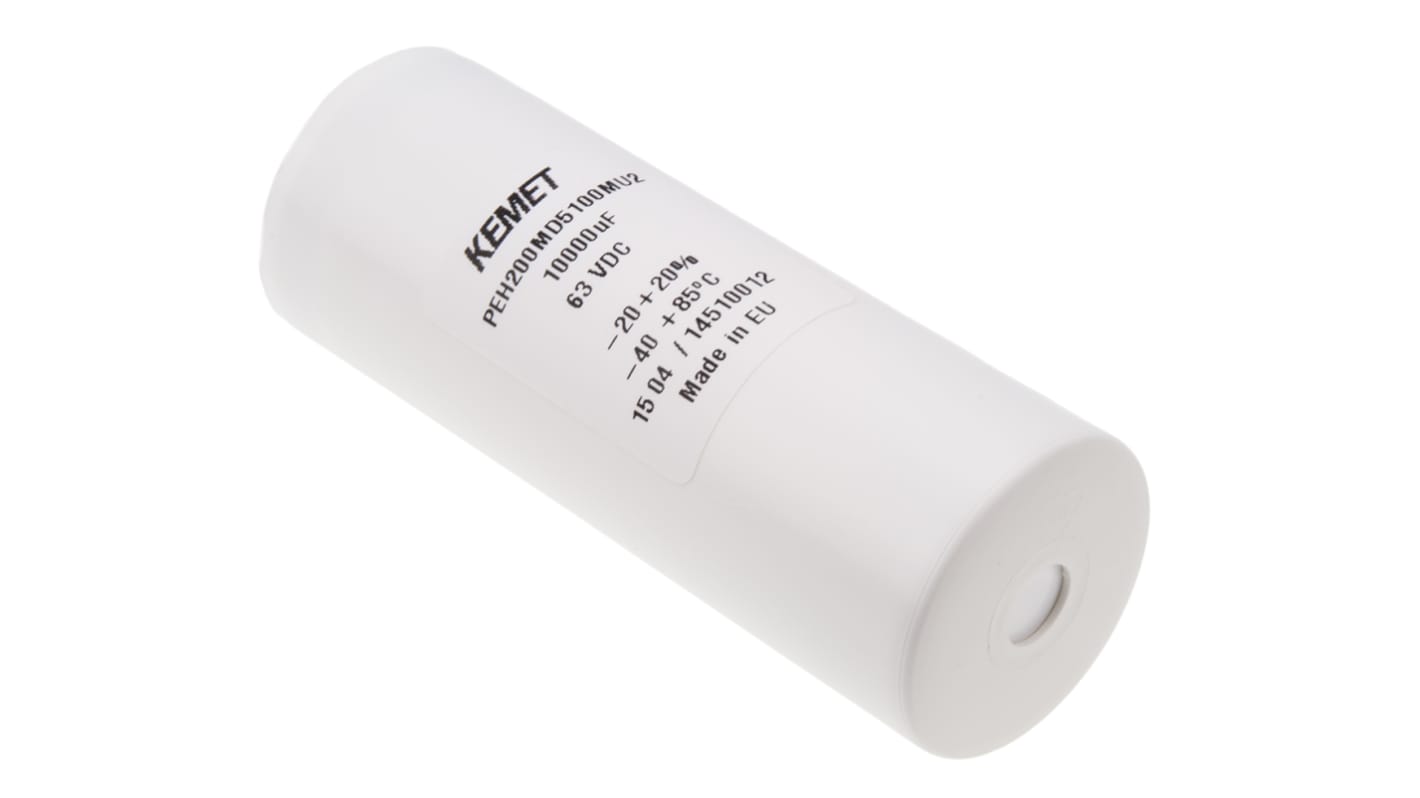

KEMET 10000μF Aluminium Electrolytic Capacitor 63V dc, Screw Terminal - PEH200MD5100MU2
- RS Stock No.:
- 189-787
- Mfr. Part No.:
- PEH200MD5100MU2
- Brand:
- KEMET
Subtotal (1 unit)*
£23.68
(exc. VAT)
£28.42
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 56 unit(s) ready to ship
- Plus 89 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £23.68 |
*price indicative
- RS Stock No.:
- 189-787
- Mfr. Part No.:
- PEH200MD5100MU2
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 10000µF | |
| Voltage | 63V dc | |
| Mounting Type | Screw Terminal | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 36.6 x 97.5mm | |
| Height | 97.5mm | |
| Length | 97.5mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 36.6mm | |
| Maximum Operating Temperature | +85°C | |
| Lifetime | 10000 h @ +85 °C/63V dc/Ir | |
| Lead Pitch | 13mm | |
| Leakage Current | 5.89 mA | |
| Series | PEH200 | |
| Equivalent Series Resistance | 15mΩ | |
| Tolerance | ±20% | |
| Polarised | Polar | |
| Ripple Current | 34.3A | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 10000µF | ||
Voltage 63V dc | ||
Mounting Type Screw Terminal | ||
Technology Aluminium Electrolytic | ||
Dimensions 36.6 x 97.5mm | ||
Height 97.5mm | ||
Length 97.5mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 36.6mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 10000 h @ +85 °C/63V dc/Ir | ||
Lead Pitch 13mm | ||
Leakage Current 5.89 mA | ||
Series PEH200 | ||
Equivalent Series Resistance 15mΩ | ||
Tolerance ±20% | ||
Polarised Polar | ||
Ripple Current 34.3A | ||
PEH200 Series
The PEH200 series of aluminium electrolytic converters from KEMET offer long life with low ESR and ESL in a compact size. These electrolytic capacitors feature a polarised, welded design with extended cathode construction, heavy duty screw terminals, plastic insulation and a safety vent. The sealing system allows for a low gas-diffusion rate of electrolyte and electrolyte leakage-free operation.
Features
Industrial grade
Long life, high performance electrolytic capacitors
High CV value with low equivalent series resistance (ESR), and low equivalent series inductance (ESL)
Long life, high performance electrolytic capacitors
High CV value with low equivalent series resistance (ESR), and low equivalent series inductance (ESL)
Applications
Ground power units,
Uninterruptible power supplies
Uninterruptible power supplies
Welding equipment and drives
Note
Screws and washers are not supplied.
Standards
IEC 384-4 long life grade 40/85/56, DIN
AEC-Q200 qualified
AEC-Q200 qualified
Clamp-fixing +85°C
Ideal for computer power supply applications or other applications that require long operational life
