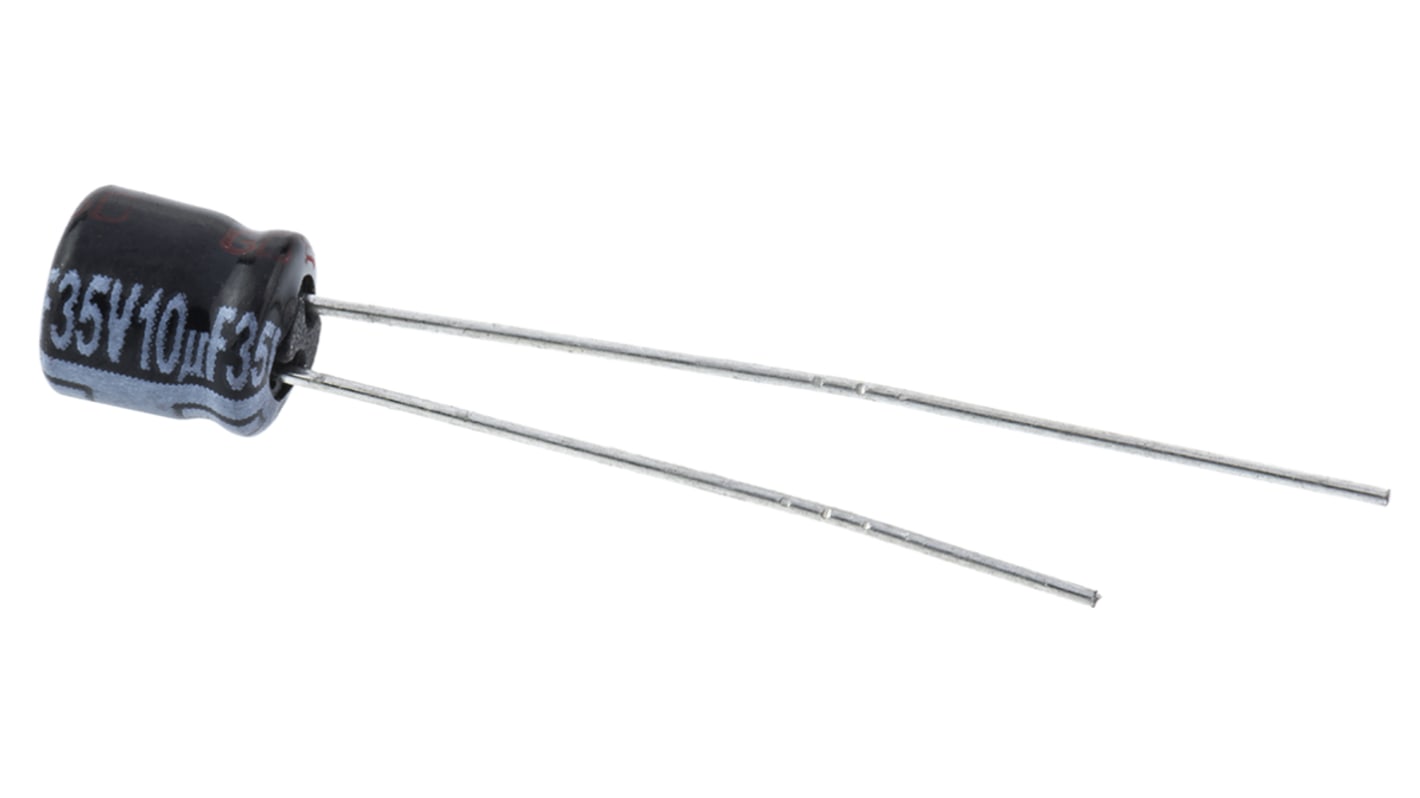

Panasonic 10μF Aluminium Electrolytic Capacitor 35V dc, Radial, Through Hole - ECEA1VKS100
- RS Stock No.:
- 116-919
- Mfr. Part No.:
- ECEA1VKS100
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 5 units)*
£0.88
(exc. VAT)
£1.055
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
- Plus 400 unit(s) ready to ship from another location
- Plus 1,890 unit(s) shipping from 09 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 245 | £0.176 | £0.88 |
| 250 - 495 | £0.154 | £0.77 |
| 500 - 2495 | £0.144 | £0.72 |
| 2500 - 4995 | £0.134 | £0.67 |
| 5000 + | £0.122 | £0.61 |
*price indicative
- RS Stock No.:
- 116-919
- Mfr. Part No.:
- ECEA1VKS100
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 10µF | |
| Voltage | 35V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 5 (Dia.) x 5mm | |
| Height | 5mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 5mm | |
| Maximum Operating Temperature | +85°C | |
| Lifetime | 1000h | |
| Lead Pitch | 2mm | |
| Ripple Current | 30mA | |
| Polarised | Polar | |
| Leakage Current | 3 μA | |
| Series | KS-A | |
| Tolerance | ±20% | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 10µF | ||
Voltage 35V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 5 (Dia.) x 5mm | ||
Height 5mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 5mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 1000h | ||
Lead Pitch 2mm | ||
Ripple Current 30mA | ||
Polarised Polar | ||
Leakage Current 3 μA | ||
Series KS-A | ||
Tolerance ±20% | ||
