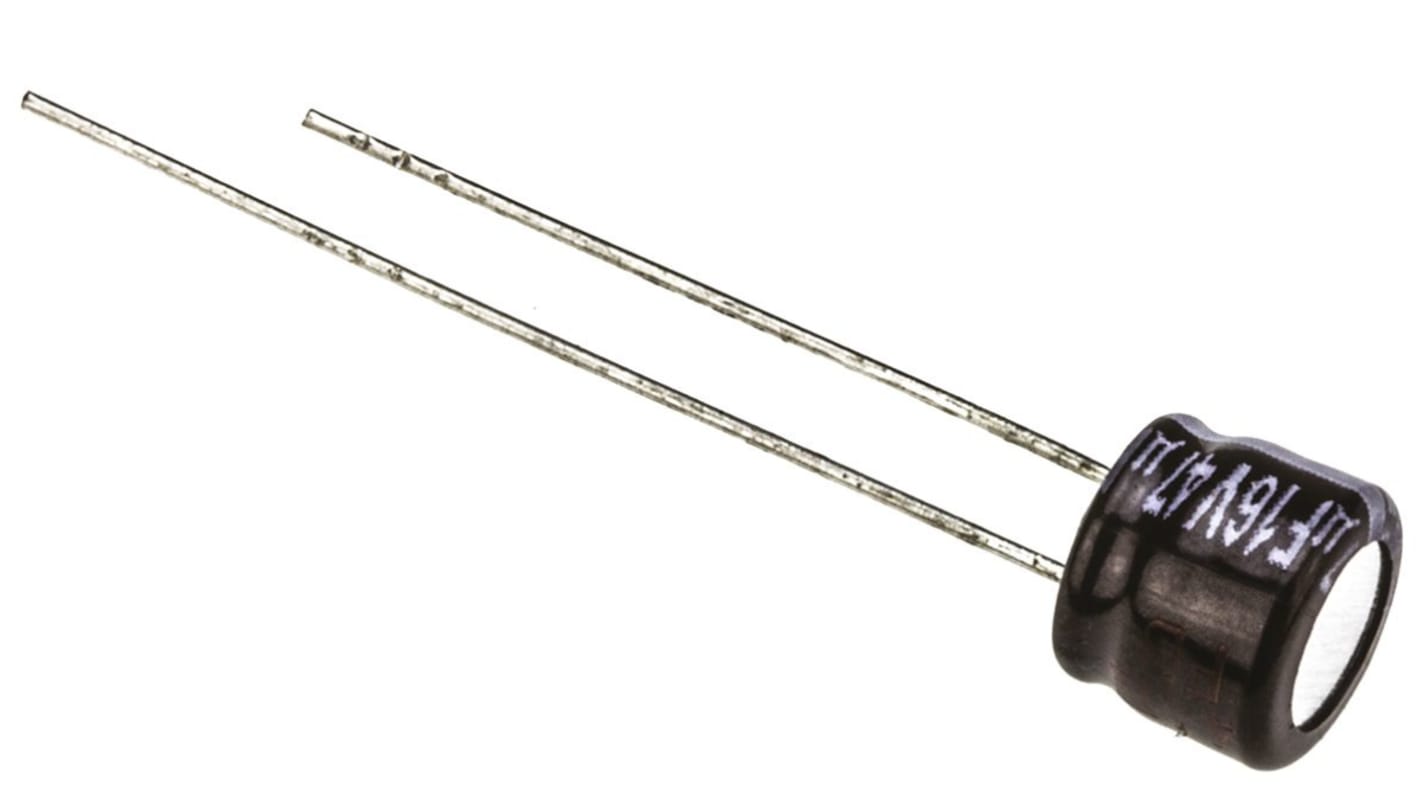

Panasonic 47μF Aluminium Electrolytic Capacitor 16V dc, Radial, Through Hole - ECEA1CKS470
- RS Stock No.:
- 116-818
- Mfr. Part No.:
- ECEA1CKS470
- Brand:
- Panasonic
Subtotal (1 pack of 5 units)*
£1.33
(exc. VAT)
£1.595
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 975 unit(s) ready to ship
- Plus 135 unit(s) ready to ship from another location
- Plus 165 unit(s) shipping from 09 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £0.266 | £1.33 |
*price indicative
- RS Stock No.:
- 116-818
- Mfr. Part No.:
- ECEA1CKS470
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 47µF | |
| Voltage | 16V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 6.3 (Dia.) x 5mm | |
| Height | 5mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 6.3mm | |
| Maximum Operating Temperature | +85°C | |
| Lifetime | 1000h | |
| Lead Pitch | 2.5mm | |
| Leakage Current | 3 μA | |
| Series | KS-A | |
| Tolerance | ±20% | |
| Ripple Current | 70mA | |
| Polarised | Polar | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 47µF | ||
Voltage 16V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 6.3 (Dia.) x 5mm | ||
Height 5mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 6.3mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 1000h | ||
Lead Pitch 2.5mm | ||
Leakage Current 3 μA | ||
Series KS-A | ||
Tolerance ±20% | ||
Ripple Current 70mA | ||
Polarised Polar | ||
