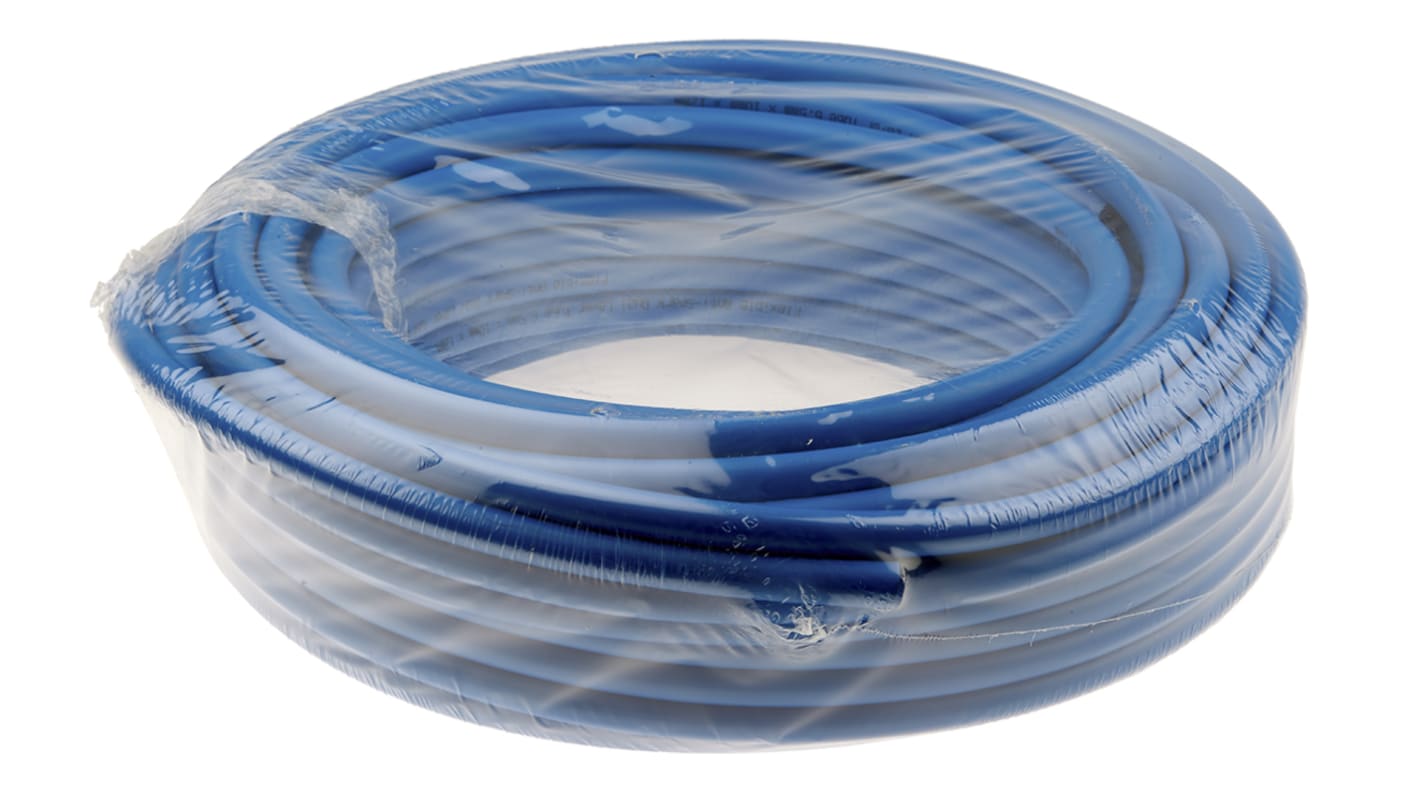

RS PRO Compressed Air Pipe Blue Polyurethane, Polyvinyl Chloride 10 mm 30 m WST Series
- RS Stock No.:
- 174-5737
- Brand:
- RS PRO
Subtotal (1 unit)*
£94.01
(exc. VAT)
£112.81
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 15 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £94.01 |
*price indicative
- RS Stock No.:
- 174-5737
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Compressed Air Pipe | |
| Colour | Blue | |
| Material | Polyurethane, Polyvinyl Chloride | |
| Length | 30m | |
| Maximum Operating Pressure | 30 bar | |
| Application | Pneumatic Systems | |
| Series | WST | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | 60°C | |
| Resistance Features | Alkali Resistant, Fungi Resistant, Acid Resistant, Oil Resistant, Grease Resistant, Solvent Resistant, Petrol Resistant | |
| Inside Diameter | 6.5mm | |
| Outside Diameter | 10mm | |
| Standards/Approvals | No | |
| Number of Tubes | 1 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Compressed Air Pipe | ||
Colour Blue | ||
Material Polyurethane, Polyvinyl Chloride | ||
Length 30m | ||
Maximum Operating Pressure 30 bar | ||
Application Pneumatic Systems | ||
Series WST | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature 60°C | ||
Resistance Features Alkali Resistant, Fungi Resistant, Acid Resistant, Oil Resistant, Grease Resistant, Solvent Resistant, Petrol Resistant | ||
Inside Diameter 6.5mm | ||
Outside Diameter 10mm | ||
Standards/Approvals No | ||
Number of Tubes 1 | ||
RS PRO Air Hose
The RS PRO air hose is designed for use in welding applications, where tubing is likely to come in contact with weld spatter and sparks. It is specifically built to carry air, gases, some liquids, dry powders and granules. The inside diameter of hose is 6.5mm and outside diameter of hose is 10mm. The maximum operating pressure is 7.5bar.
Features and Benefits
• Withstands weld spatter and sparks
• Made from pneumatic polyurethane tubing covered in 1mm of flame retardant PVC.The flame retardant cover increases the overall OD by 2mm and it needs to be removed for pneumatic connections.
• Inner tube is manufactured from 100% ester based polyurethane, with no plasticisers
• Outer tube is flame retardant and self-extinguishing, avoiding the need for expensive metallic braided pipes
• Extremely durable
• Resistant to most solvents, alkalis, oils, greases, petroleum products, fungi, moulds and dilute acids (mineral and organic)
Applications
• Welding
• Industrial robotics
• Pneumatic valves, fuel and lubrication lines
• Control instrumentation
• Pneumatic lines, chemical transfer tubing and metering pumps
Certifications
• Outer tube rated: Meets UL94V0 self-extinguishing requirements
Note
This sheeth needs to be stripped back for connections to fitting.
