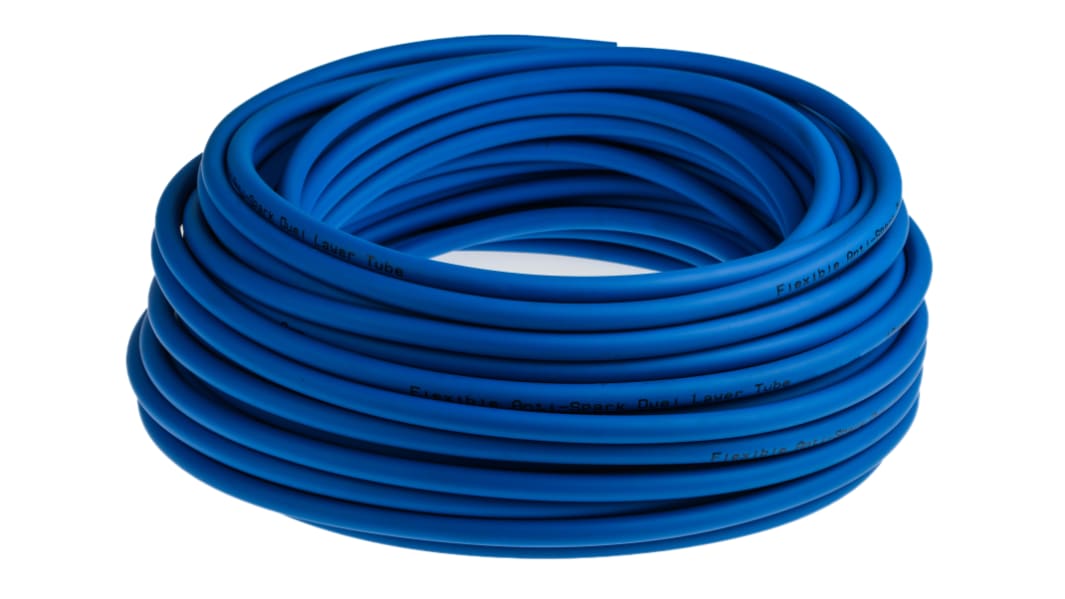

RS PRO Compressed Air Pipe Blue Polyurethane, Polyvinyl Chloride 6 mm 30 m WST Series
- RS Stock No.:
- 174-5728
- Brand:
- RS PRO
Subtotal (1 unit)*
£47.90
(exc. VAT)
£57.48
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 44 unit(s) ready to ship
- Plus 13 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £47.90 |
*price indicative
- RS Stock No.:
- 174-5728
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Compressed Air Pipe | |
| Colour | Blue | |
| Material | Polyurethane, Polyvinyl Chloride | |
| Length | 30m | |
| Maximum Operating Pressure | 40 bar | |
| Application | Pneumatic Systems | |
| Series | WST | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | 60°C | |
| Inside Diameter | 4mm | |
| Resistance Features | Oil Resistant, Alkali Resistant, Grease Resistant, Petrol Resistant, Solvent Resistant, Acid Resistant, Fungi Resistant | |
| Outside Diameter | 6mm | |
| Standards/Approvals | No | |
| Number of Tubes | 1 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Compressed Air Pipe | ||
Colour Blue | ||
Material Polyurethane, Polyvinyl Chloride | ||
Length 30m | ||
Maximum Operating Pressure 40 bar | ||
Application Pneumatic Systems | ||
Series WST | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature 60°C | ||
Inside Diameter 4mm | ||
Resistance Features Oil Resistant, Alkali Resistant, Grease Resistant, Petrol Resistant, Solvent Resistant, Acid Resistant, Fungi Resistant | ||
Outside Diameter 6mm | ||
Standards/Approvals No | ||
Number of Tubes 1 | ||
Designed for use in welding applications, where tubing is likely to come in to contact with weld spatter and sparks. Able to carry air, gases, some liquids, dry powders and granules.
Key Features:
• Withstands weld spatter and sparks.
• Made from pneumatic polyurethane tubing covered in 1mm of flame retardant PVC.The flame retardant cover increases the overall OD by 2mm and it needs to be removed for pneumatic connections.
• Inner tube is manufactured from 100% ester based polyurethane, with no Plasticisers.
• Outer tube is flame retardant and self-extinguishing – avoiding the need for expensive metallic braided pipes.
• Extremely durable.
• Resistant to most solvents, alkalis, oils, greases, petroleum products, fungi, moulds and dilute acids (mineral and organic).
• Outer tube rating: Meets UL94V0 self extinguishing requirements.
Applications:
• Welding
• Industrial robotics
• Pneumatic valves, fuel and lubrication lines
• Control instrumentation
• Pneumatic lines, chemical transfer tubing, metering pumps
Note
This sheeth needs to be stripped back for connections to fitting.
