Festo Compressed Air Pipe Blue Polyurethane 10mm x 50m PUN-H-T Series, 8048701
- RS Stock No.:
- 136-7105
- Distrelec Article No.:
- 301-69-230
- Mfr. Part No.:
- PUN-H-10X1,5-TBL
- Brand:
- Festo
Subtotal (1 bag of 50 units)*
£124.63
(exc. VAT)
£149.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £124.63 | £2.493 |
*price indicative
- RS Stock No.:
- 136-7105
- Distrelec Article No.:
- 301-69-230
- Mfr. Part No.:
- PUN-H-10X1,5-TBL
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Hose Outside Diameter | 10mm | |
| Hose Inside Diameter | 7mm | |
| Colour | Blue | |
| Material | Polyurethane | |
| Length | 50m | |
| Maximum Operating Pressure | 10 bar | |
| Application | Food Industry | |
| Manufacturer Series | PUN-H-T | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | +60°C | |
| Special Features | Hydrolysis Resistant | |
| Model Number p | 8048701 | |
| Number of Tubes | 1 | |
Select all | ||
|---|---|---|
Brand Festo | ||
Hose Outside Diameter 10mm | ||
Hose Inside Diameter 7mm | ||
Colour Blue | ||
Material Polyurethane | ||
Length 50m | ||
Maximum Operating Pressure 10 bar | ||
Application Food Industry | ||
Manufacturer Series PUN-H-T | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature +60°C | ||
Special Features Hydrolysis Resistant | ||
Model Number p 8048701 | ||
Number of Tubes 1 | ||
- COO (Country of Origin):
- CZ

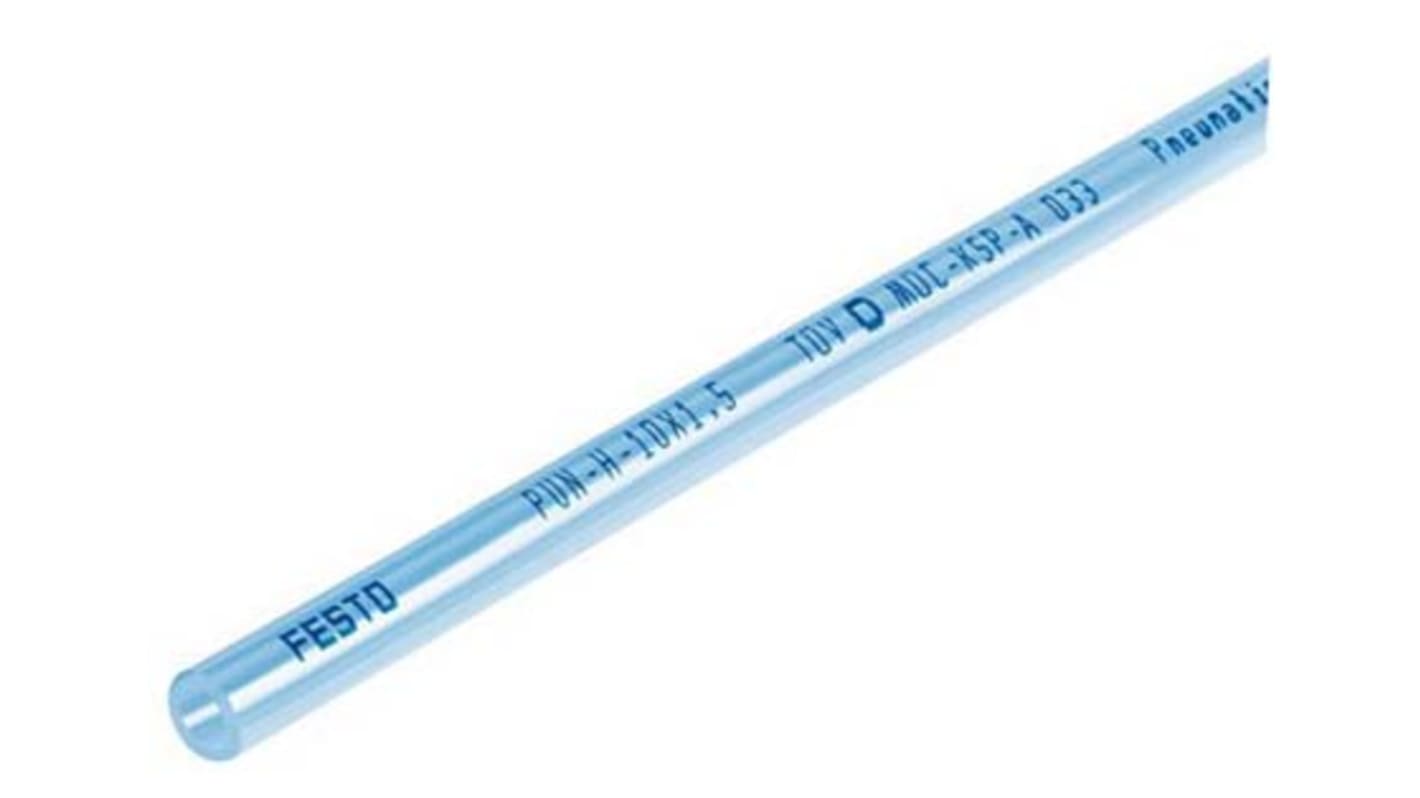

Festo Compressed Air Pipe, Hydrolysis-Resistant, -0.95 to 10 Bar Operating Pressure Range - PUN-H-10X1,5-TBL
Give media a smooth path through your system with this compressed air pipe from Festo. Installation is simple, as you can attach it to a pneumatic port by inserting the end into a push-in connector with an outside diameter of 10mm. Since it handles an operating pressure range between -0.95 and 10 bar, you can use the tubing in an array of different environments. It's food-safe, so makes the grade for any task where you need to meet high hygiene standards.
Features & Benefits
• Shore hardness of D52+/-3 indicates rigidity to resist punctures
• Tested to withstand energy chain application of over five million cycles, ensuring durability
• 50m long, so makes convenient long-distance connections
• Hydrolysis resistance helps prevent moisture absorption and boost hygiene
• Tested to withstand energy chain application of over five million cycles, ensuring durability
• 50m long, so makes convenient long-distance connections
• Hydrolysis resistance helps prevent moisture absorption and boost hygiene
Applications
• Automotive industry
• Conveyor systems
• Construction equipment
• Marine engineering
• Conveyor systems
• Construction equipment
• Marine engineering
What's this pipe made from?
This pipe is made from tough polyurethane that resists chemicals and solvents, so it can withstand contaminated conditions.
How flexible is this pipe?
A minimum bending radius of 28mm means you'll find it's flexible enough to bend around corners without suffering damage or losing pressure.
