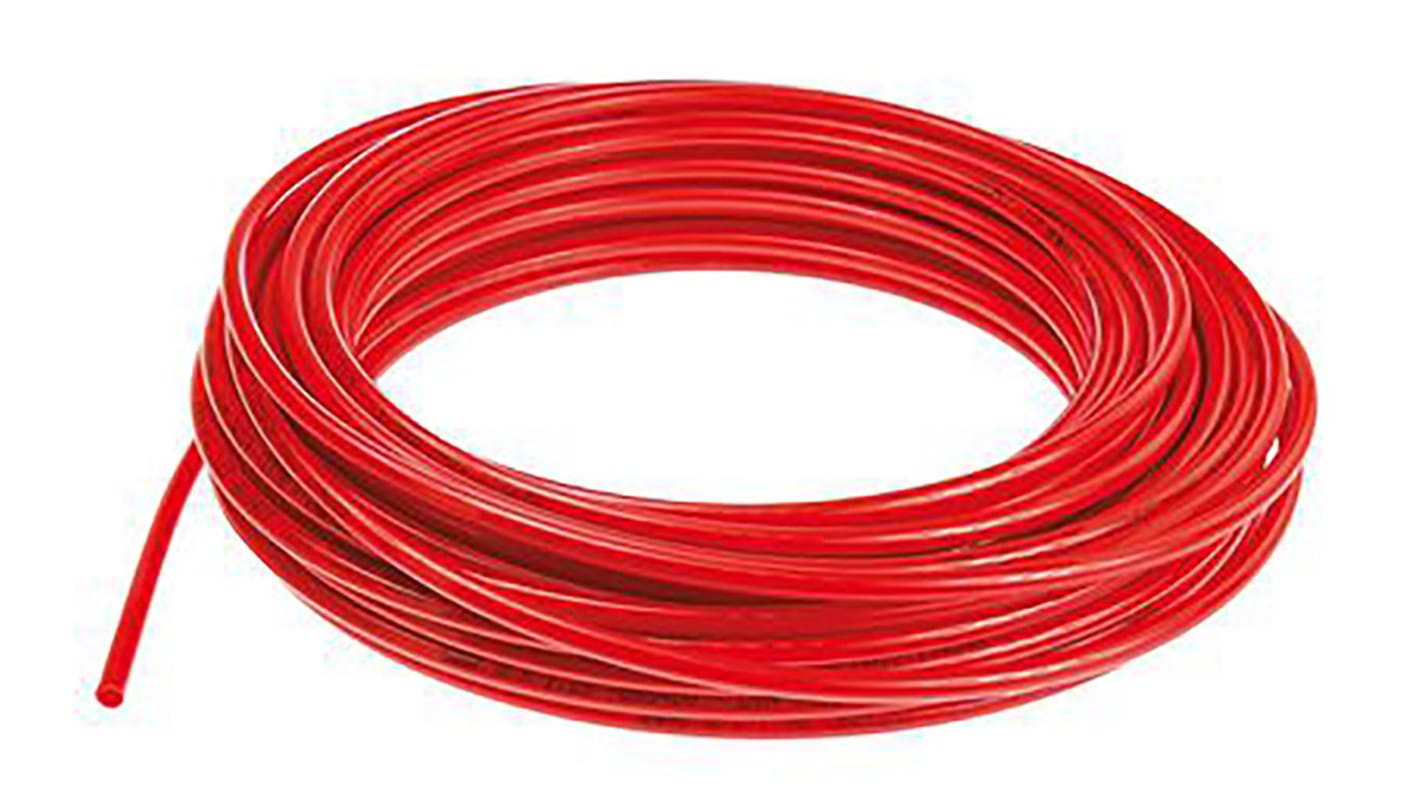

Festo Compressed Air Pipe Red Polyurethane 4mm x 50m PUN-H Series, 558285
- RS Stock No.:
- 126-3106
- Distrelec Article No.:
- 301-69-242
- Mfr. Part No.:
- PUN-H-4X0,75-RT
- Brand:
- Festo
Subtotal (1 reel of 50 units)*
£37.88
(exc. VAT)
£45.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 23 unit(s) ready to ship
- Plus 28 unit(s) ready to ship from another location
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £37.88 | £0.758 |
*price indicative
- RS Stock No.:
- 126-3106
- Distrelec Article No.:
- 301-69-242
- Mfr. Part No.:
- PUN-H-4X0,75-RT
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Hose Outside Diameter | 4mm | |
| Hose Inside Diameter | 2.6mm | |
| Colour | Red | |
| Material | Polyurethane | |
| Length | 50m | |
| Maximum Operating Pressure | 10 bar | |
| Application | Food Industry | |
| Manufacturer Series | PUN-H | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | +60°C | |
| Special Features | Hydrolysis Resistant | |
| Number of Tubes | 1 | |
| Model Number p | 558285 | |
Select all | ||
|---|---|---|
Brand Festo | ||
Hose Outside Diameter 4mm | ||
Hose Inside Diameter 2.6mm | ||
Colour Red | ||
Material Polyurethane | ||
Length 50m | ||
Maximum Operating Pressure 10 bar | ||
Application Food Industry | ||
Manufacturer Series PUN-H | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature +60°C | ||
Special Features Hydrolysis Resistant | ||
Number of Tubes 1 | ||
Model Number p 558285 | ||
- COO (Country of Origin):
- CZ
Festo Compressed Air Pipe, Copper-Free, Hydrolysis-Resistant - PUN-H-4X0,75-RT
Looking for flexible tubing that won't leave you high and dry? Try this compressed air pipe from Festo. It withstands extended exposure to water, heat and humidity thanks to its hydrolysis-resistant polyurethane construction. As this material is also resistant to chemicals and microbes, it's safe to use in food industry applications. The roll comes supplied in a 50m length so you can cut the hose to size. Installation's a breeze using compatible push-in pneumatic fittings – just seal it in with a single click.
Features & Benefits
• Wide operating pressure range between -0.95 and 10 bar means it's strong enough for high-energy applications
• Works reliably at temperatures from -35°C to +60°C for safe use in challenging environments
• Minimum bending radius of 8mm helps it conform to tight setups without kinking or cracking
• Light weight of 8.5g/m puts minimal strain on pneumatic circuits
• Works reliably at temperatures from -35°C to +60°C for safe use in challenging environments
• Minimum bending radius of 8mm helps it conform to tight setups without kinking or cracking
• Light weight of 8.5g/m puts minimal strain on pneumatic circuits
Applications
• Food and beverage production
• Pharmaceutical laboratories
• Storage facilities
• Pharmaceutical laboratories
• Storage facilities
What's the diameter of this pipe?
The hose's outside diameter is 4mm and its inside diameter is 2.6mm. This gives it a slim profile that bends easily into compact systems.
What other mediums can I use this pipe with besides compressed air?
You can use this versatile tubing with water and vacuum-operated mediums.
