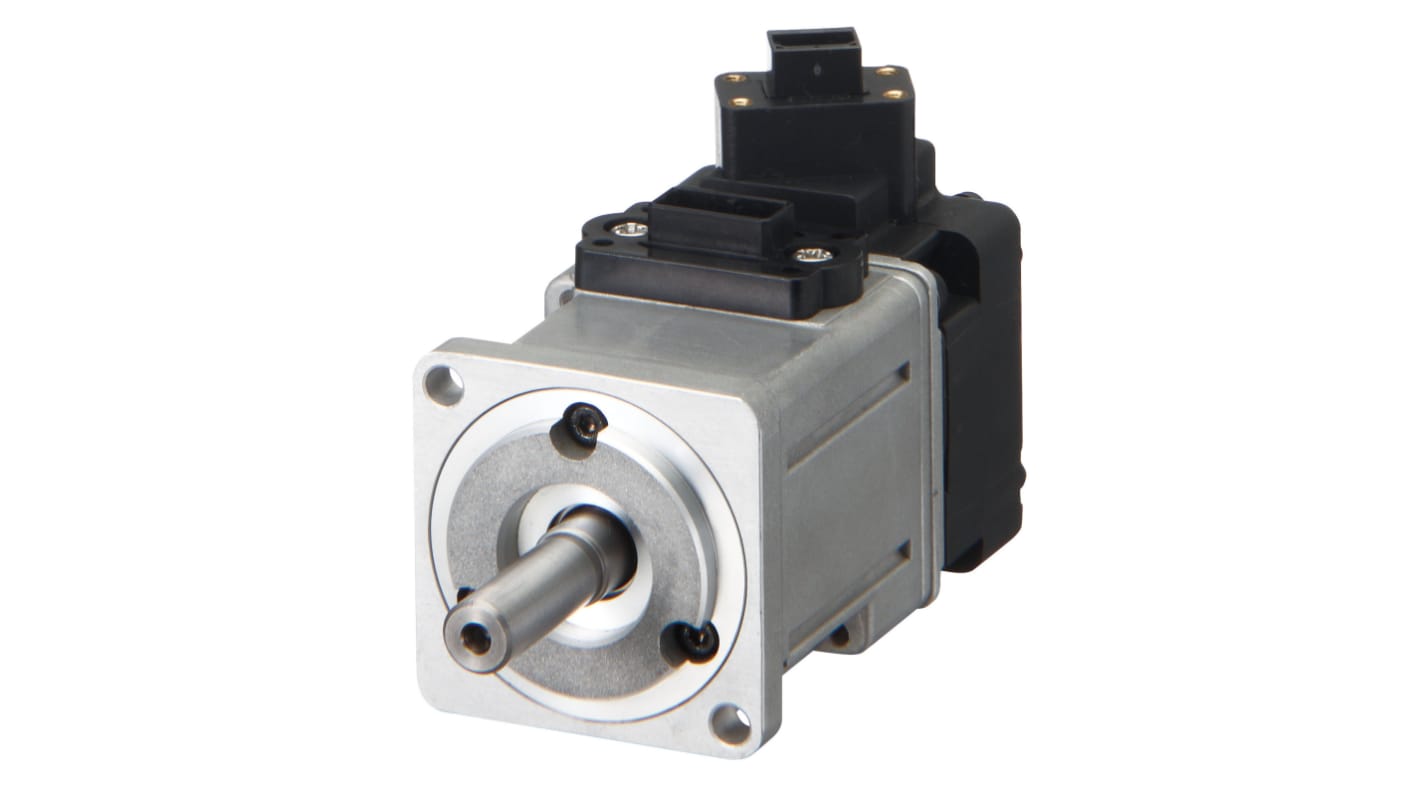

Omron Accurax G5 AC Motor, 100 W, 1 Phase, 230V, Screw Mounting
- RS Stock No.:
- 215-8299
- Mfr. Part No.:
- R88M-K10030H-BS2
- Brand:
- Omron
Subtotal (1 unit)*
£1,345.32
(exc. VAT)
£1,614.38
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £1,345.32 |
*price indicative
- RS Stock No.:
- 215-8299
- Mfr. Part No.:
- R88M-K10030H-BS2
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | AC Motor | |
| Power Rating | 100W | |
| Sub Type | Single Shaft | |
| Supply Voltage | 230V | |
| Number of Phases | 1 | |
| Output Speed | 3000rpm | |
| Mount Type | Screw | |
| Material | Steel | |
| Shaft Diameter | 8mm | |
| Shaft Length | 22mm | |
| Width | 40mm | |
| Standards/Approvals | RoHS | |
| Depth | 66.6mm | |
| Length | 147mm | |
| Maximum Output Torque | 0.32Nm | |
| Series | Accurax G5 | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type AC Motor | ||
Power Rating 100W | ||
Sub Type Single Shaft | ||
Supply Voltage 230V | ||
Number of Phases 1 | ||
Output Speed 3000rpm | ||
Mount Type Screw | ||
Material Steel | ||
Shaft Diameter 8mm | ||
Shaft Length 22mm | ||
Width 40mm | ||
Standards/Approvals RoHS | ||
Depth 66.6mm | ||
Length 147mm | ||
Maximum Output Torque 0.32Nm | ||
Series Accurax G5 | ||
The Omron Accurax G5 servomotors include IP67 protection and connectors on the motor body. It use 10 pole motors and 20 bit encoder results in 40% reduction in motor cogging. The servomotors are 25% lighter and 15% smaller due to patented new stator design PAC-Clamp, 40% iron loss reduction and 15% smaller encoder. Accurax G5 series AC servo motor for accurate motion control has incremental encoder of 20 bit, straight shaft with key and tap with brake. It has 0.32 Nm rated torque, 3000 rpm speed and 100 W power capacity.
Standard and high inertia servo motor models
Peak torque 300% of rated torque during 3 seconds
or more depending on model
High resolution serial encoder provided by 20 bits
encoder
Ultra-light and compact size motor
Low speed ripple and low torque ripple due to low
torque cogging
Various shaft, brake and seal options
