Recom, AC/DC Converter 83 mA, 24 V dc, 24 V dc 4-Pin, 1.35 x 0.88 in
- RS Stock No.:
- 274-5203
- Mfr. Part No.:
- RAC02E-24SK/277
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 20 units)*
£118.31
(exc. VAT)
£141.97
(inc. VAT)
Stock information currently inaccessible - Please check back later
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £118.31 | £5.916 |
| 5 - 9 | £114.76 | £5.738 |
| 10 - 24 | £111.21 | £5.561 |
| 25 - 49 | £107.66 | £5.383 |
| 50 + | £104.11 | £5.206 |
*price indicative
- RS Stock No.:
- 274-5203
- Mfr. Part No.:
- RAC02E-24SK/277
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | AC/DC Converter | |
| Maximum Input Voltage | 305V ac | |
| Maximum Output Voltage | 24V dc | |
| Mount Type | Through Hole | |
| Output Power | 2W | |
| Pin Count | 4 | |
| Maximum Output Current | 83mA | |
| Package Type | 1.35 x 0.88 in | |
| Minimum Input Voltage | 85V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 90°C | |
| Series | RAC02E | |
| Standards/Approvals | EN60601‑1‑2, CB, UL62368‑1, LPS & reinforced Class II insulation, REACH & RoHS, CE, EN55032 Class B EMC, EN62368‑1, EN60335‑1 | |
| Height | 15mm | |
| Length | 33mm | |
| Minimum Output Voltage | 24V dc | |
| Minimum Output Current | 83mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type AC/DC Converter | ||
Maximum Input Voltage 305V ac | ||
Maximum Output Voltage 24V dc | ||
Mount Type Through Hole | ||
Output Power 2W | ||
Pin Count 4 | ||
Maximum Output Current 83mA | ||
Package Type 1.35 x 0.88 in | ||
Minimum Input Voltage 85V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 90°C | ||
Series RAC02E | ||
Standards/Approvals EN60601‑1‑2, CB, UL62368‑1, LPS & reinforced Class II insulation, REACH & RoHS, CE, EN55032 Class B EMC, EN62368‑1, EN60335‑1 | ||
Height 15mm | ||
Length 33mm | ||
Minimum Output Voltage 24V dc | ||
Minimum Output Current 83mA | ||
Automotive Standard No | ||

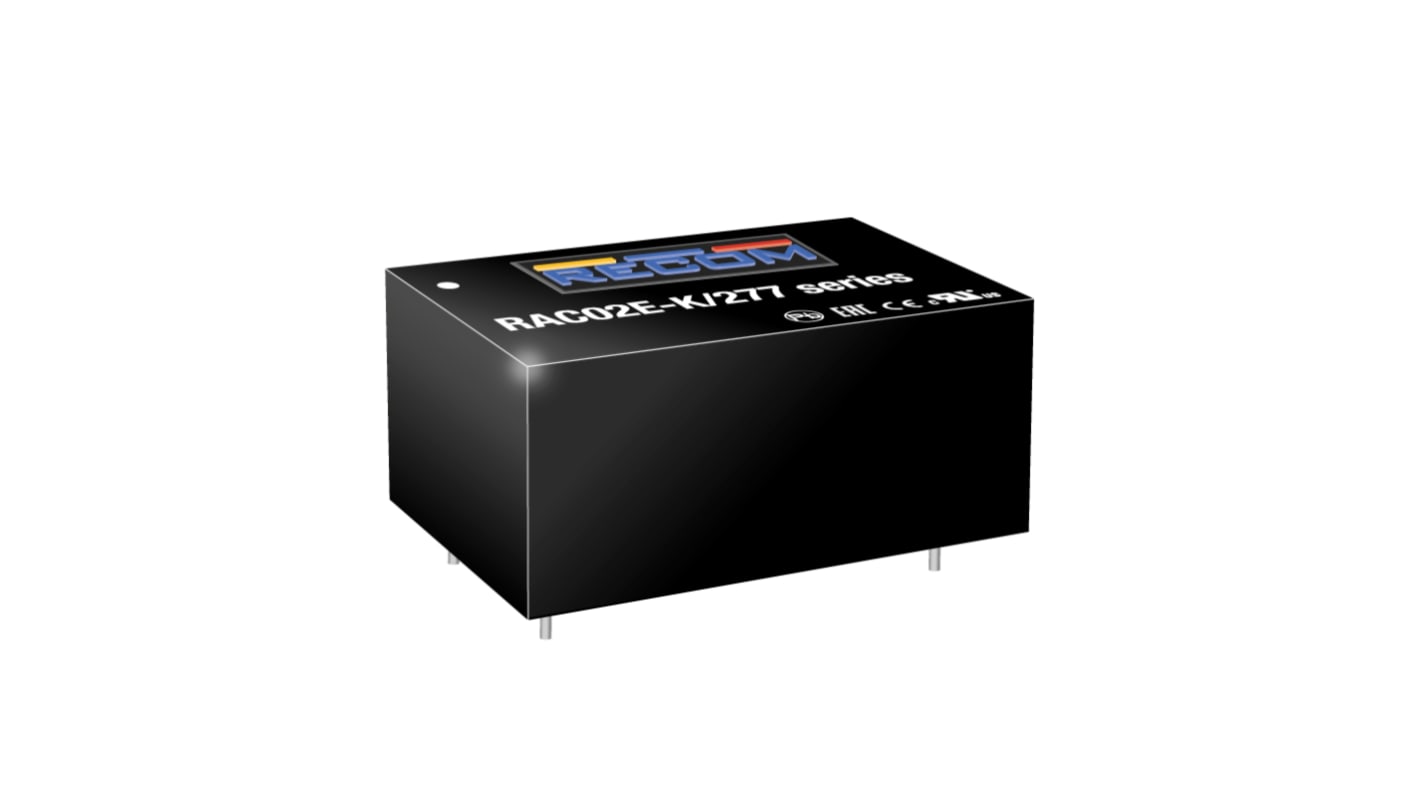

The Recom AC/DC converter is a encapsulated, print-mountable module, delivers an uncompromising 2 watts of output power with tightly regulated outputs. It holds international safety certifications for industrial, domestic, ITE and are suitable for worldwi
Standby mode optimized for Eco designs
Low profile
