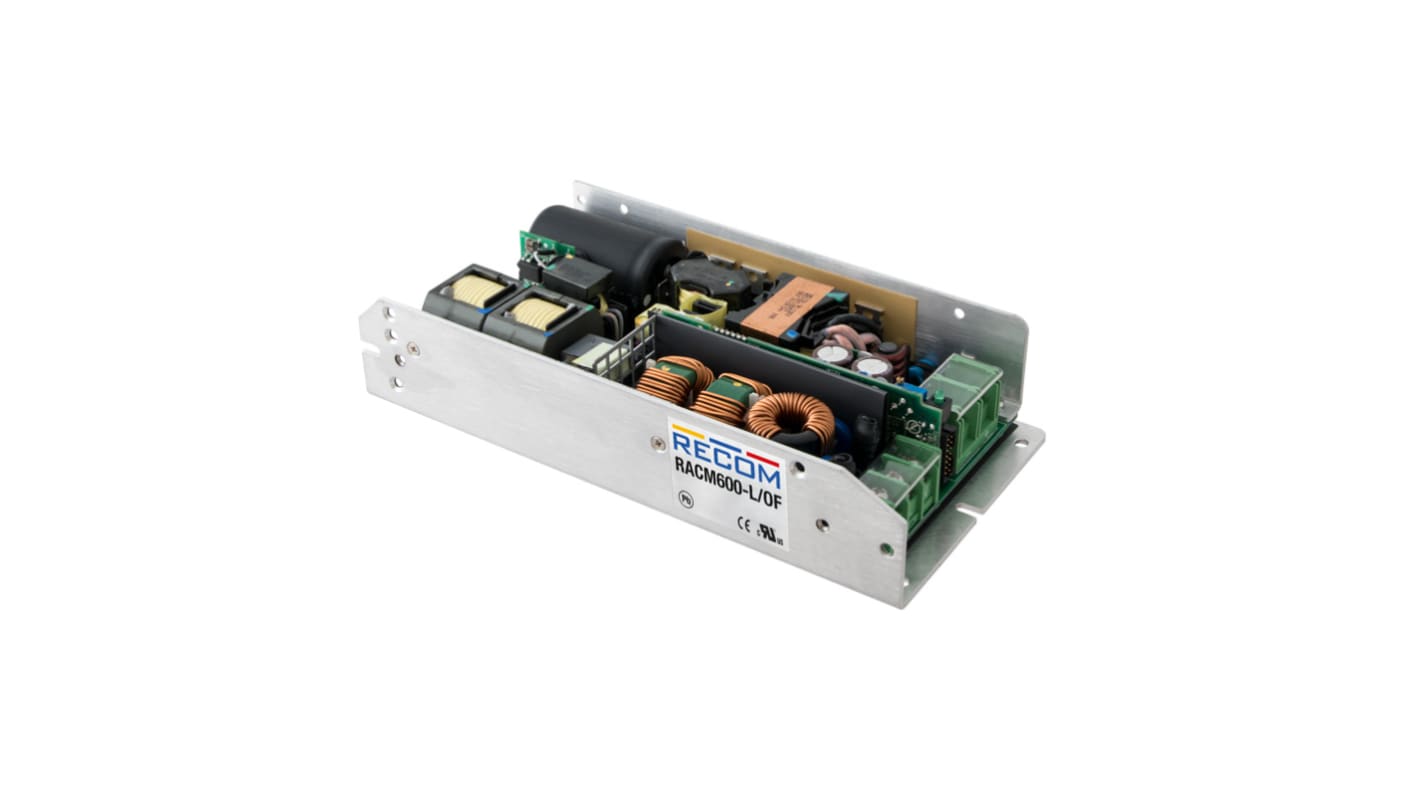

Recom, AC/DC Converter 66.67 A, 12V dc, 9.6 V, Open Frame RACM600-12SL/OF
- RS Stock No.:
- 274-3471
- Mfr. Part No.:
- RACM600-12SL/OF
- Brand:
- Recom
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 274-3471
- Mfr. Part No.:
- RACM600-12SL/OF
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Maximum Input Voltage | 275V dc | |
| Product Type | AC/DC Converter | |
| Maximum Output Voltage | 12V dc | |
| Output Power | 600W | |
| Mount Type | Chassis | |
| Maximum Output Current | 66.67A | |
| Package Type | Open Frame | |
| Minimum Input Voltage | 80V ac | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Series | RACM600 | |
| Width | 101.6mm | |
| Standards/Approvals | IEC 60601-1-2, RoHS2+, IEC 60068-2-6, IEC 60068-2-27, EN55032 Class B, IEC 62368, REACH | |
| Height | 40.6mm | |
| Length | 196.8mm | |
| Minimum Output Voltage | 9.6V | |
| Supply Current | 11.4A | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Maximum Input Voltage 275V dc | ||
Product Type AC/DC Converter | ||
Maximum Output Voltage 12V dc | ||
Output Power 600W | ||
Mount Type Chassis | ||
Maximum Output Current 66.67A | ||
Package Type Open Frame | ||
Minimum Input Voltage 80V ac | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Series RACM600 | ||
Width 101.6mm | ||
Standards/Approvals IEC 60601-1-2, RoHS2+, IEC 60068-2-6, IEC 60068-2-27, EN55032 Class B, IEC 62368, REACH | ||
Height 40.6mm | ||
Length 196.8mm | ||
Minimum Output Voltage 9.6V | ||
Supply Current 11.4A | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TH
The Recom AC/DC power supply units are designed to support operation in natural convection where conduction cooling is not an option for up to 450W continuous and peak power of up to 600W or 800W.
Redundant operation and active current sharing
IEC60601 MOPP insulation system
3 years warranty
