- RS Stock No.:
- 831-9141
- Mfr. Part No.:
- GSM90B12-P1M
- Brand:
- MEAN WELL
20 In stock - FREE next working day delivery available
Added
Price Each
£36.33
(exc. VAT)
£43.60
(inc. VAT)
Units | Per unit |
1 + | £36.33 |
- RS Stock No.:
- 831-9141
- Mfr. Part No.:
- GSM90B12-P1M
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
Product Details

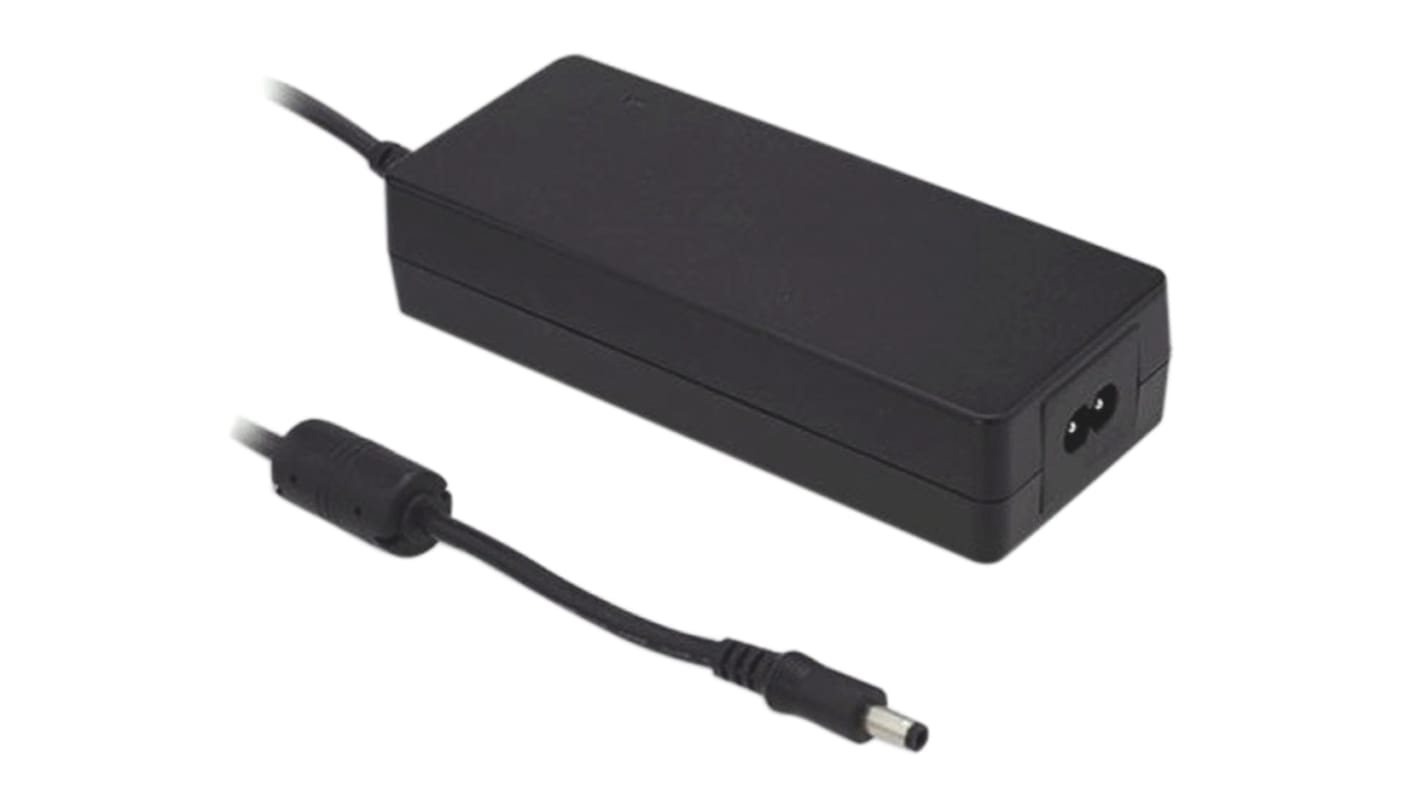

90W ErP Single Output Switch Mode Desktop Power Supply Medical - GSM-B Series
The Mean Well GSM90B series feature high efficiency and low power consumption. These desktop power supplies comply with international medical safety regulations, this AC_DC Green Medical Adaptor also possess a low leakage current ˂100 μA, 91% high efficiency and low no load power consumption ˂0.15W, which can fulfil the demands of patient contact medical applications. The GSM90 series also complies with level V energy saving regulations, such as ErP step 2 and EISA 2007. This Mean Well desktop power supply has a 2-pin standard IEC-C8 connector and features 12 to 48V different output voltage options, to fulfil various medical equipments. The GSM90B is a class II power unit, with earth ground pin and fully enclosed plastic case. These Medical power supplies have global safety certificates for UL, CUL, TUV, CB, FCC and CE, which guarantee the safety for different applications, such as medical equipment requiring low leakage current, portable medical equipment, home healthcare equipment and any electrical systems that require low no load power consumption.
Medical safety approved (2xMOPP between primary to secondary)
Low leakage current ˂100uA
No load power consumption ˂0.15W
ErP step 2 (Level V) compliant
Meet EISA 2007 (Energy Independence and Security Act)
2 pin IEC-C8 Connector
91% high efficiency
Built-in active PFC function
-30 to +60°C working temperature
Protections: Overload / Over voltage / Over temperature
Fully enclosed plastic case
Class II power (without earth pin)
LED indicator for power on
Low leakage current ˂100uA
No load power consumption ˂0.15W
ErP step 2 (Level V) compliant
Meet EISA 2007 (Energy Independence and Security Act)
2 pin IEC-C8 Connector
91% high efficiency
Built-in active PFC function
-30 to +60°C working temperature
Protections: Overload / Over voltage / Over temperature
Fully enclosed plastic case
Class II power (without earth pin)
LED indicator for power on
Standards
ANSI/AAMI ES60601-1, ES60601-1-11, TUV EN60601-1, EN60601-1-11
Approvals
UL / CUL / TUV / CB / FCC / CE
Specifications
Attribute | Value |
---|---|
Adapter Type | Power Brick Adapter |
Output Voltage | 12V dc |
Input Voltage | 100 → 240V ac |
Output Current | 6.67A |
Maximum Temperature | +60°C |
Output Connector | P1M |
Input Connector | IEC 320-C8 |
Number of Outputs | 1 |
Cable Length | 1000mm |
Medical Approved | Yes |
Standards Met | ErP Compliant |
MTBF | 405.6kh |
Energy Efficiency Level | VI |
Minimum Temperature | -30°C |
Depth | 32mm |
Width | 60mm |
Line Regulation Range | ±1% |
Load Regulation | ±5% |
Length | 145mm |
