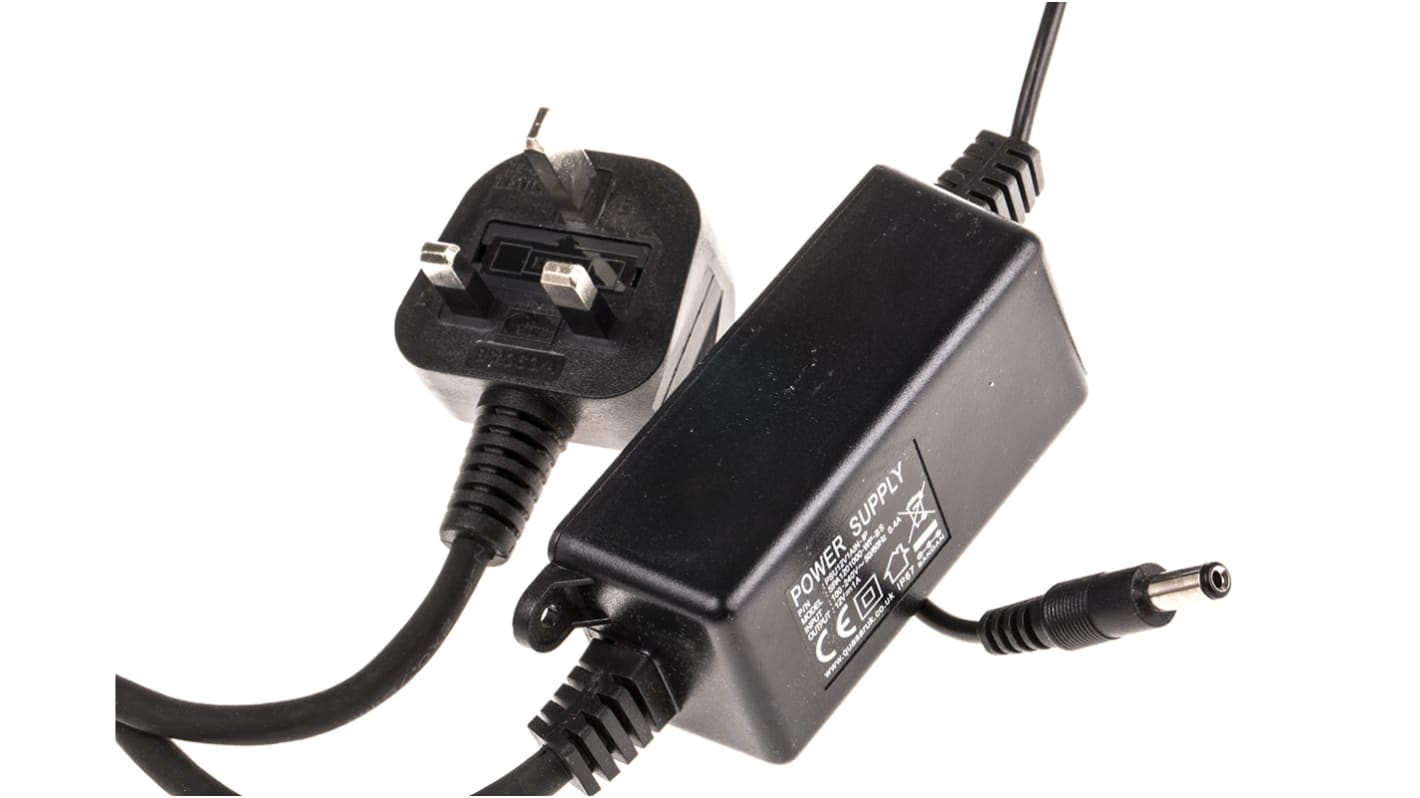

RF Solutions 5 Output 2.1mm Female Jack AC-DC Converter Power Supplies AC/DC Adapter BS1363 12 W 12V dc Output, 1 A
- RS Stock No.:
- 704-3287
- Mfr. Part No.:
- PSU-12V1AIN-IP
- Brand:
- RF Solutions
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£26.66
(exc. VAT)
£31.99
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 32 unit(s) shipping from 19 October 2026
- Plus 8 unit(s) shipping from 09 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £26.66 |
| 5 - 9 | £25.85 |
| 10 - 24 | £25.06 |
| 25 - 49 | £24.26 |
| 50 + | £23.45 |
*price indicative
- RS Stock No.:
- 704-3287
- Mfr. Part No.:
- PSU-12V1AIN-IP
- Brand:
- RF Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RF Solutions | |
| Sub Type | AC-DC Converter Power Supplies | |
| Product Type | AC/DC Adapter | |
| Plug Type | BS1363 | |
| Output Voltage | 12V dc | |
| Output Connector Type | 2.1mm Female Jack | |
| Power | 12W | |
| Cable Length | 3.3m | |
| Number of Outputs | 5 | |
| Adapter Current | 1A | |
| Input Connector Type | BS 1363 Plug | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | EN55022B, EN60065 | |
| Depth | 30mm | |
| Length | 81mm | |
| Width | 37mm | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 70% | |
| Minimum Input Voltage | 230V ac | |
| Series | PSU | |
| Load Regulation | 5 % | |
| Select all | ||
|---|---|---|
Brand RF Solutions | ||
Sub Type AC-DC Converter Power Supplies | ||
Product Type AC/DC Adapter | ||
Plug Type BS1363 | ||
Output Voltage 12V dc | ||
Output Connector Type 2.1mm Female Jack | ||
Power 12W | ||
Cable Length 3.3m | ||
Number of Outputs 5 | ||
Adapter Current 1A | ||
Input Connector Type BS 1363 Plug | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals EN55022B, EN60065 | ||
Depth 30mm | ||
Length 81mm | ||
Width 37mm | ||
Maximum Input Voltage 264V ac | ||
Efficiency 70% | ||
Minimum Input Voltage 230V ac | ||
Series PSU | ||
Load Regulation 5 % | ||
RF Solutions Power Supply Unit
The RF Solutions single output panel mount waterproof, sealed (resin-potted) mains DIN rail power supply unit has an output current rating of 1A at 12VDC. It has a universal single phase input voltage ranging between 90VAC and 264VAC with barrel jack plug output connector. Adjustable output voltage ranging between 11.40VDC and 12.60VDC. It is suitable for use with outdoor-rated wireless equipment.
Features and Benefits
Efficiency is up to 70%
Operation temperature ranging between 0°C and 40°C
Overcurrent protection
Power rating is 12W
Ripple factor and noise is less than 50mV
Wall mount fixing lungs
Certifications
EN55022
IP67 rated
