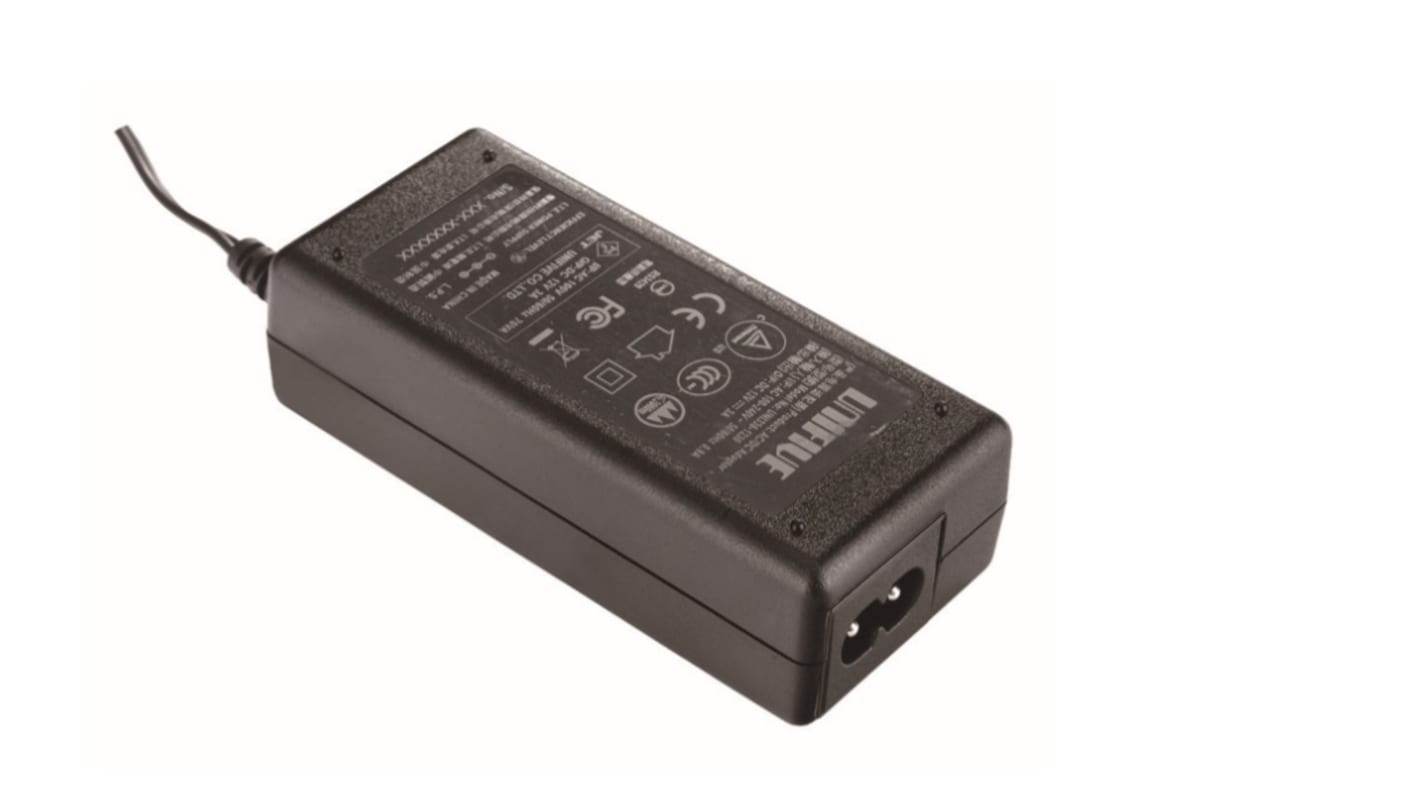

Unifive 5 Output Fixed Connector Tip AC/DC Adapter IEC 36 W 12V dc Output, 3 A
- RS Stock No.:
- 218-4797
- Mfr. Part No.:
- UNI336-1230-EIAJ-4
- Brand:
- Unifive
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£35.97
(exc. VAT)
£43.16
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- Plus 16 left, shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £35.97 |
| 5 - 9 | £34.89 |
| 10 - 24 | £33.82 |
| 25 - 49 | £32.73 |
| 50 + | £31.66 |
*price indicative
- RS Stock No.:
- 218-4797
- Mfr. Part No.:
- UNI336-1230-EIAJ-4
- Brand:
- Unifive
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Unifive | |
| Product Type | AC/DC Adapter | |
| Plug Type | IEC | |
| Output Voltage | 12V dc | |
| Power | 36W | |
| Output Connector Type | Fixed Connector Tip | |
| Number of Outputs | 5 | |
| Regulated/Unregulated | Regulated | |
| Adapter Current | 3A | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 40°C | |
| Depth | 32.1mm | |
| Width | 46.8mm | |
| Standards/Approvals | VCCI Class B, FCC Part15 Class B, RoHS, 609501, EN5504A1:001, CE CISPR C, 6681 | |
| Length | 98.5mm | |
| Efficiency | 87.4% | |
| Maximum Input Voltage | 370, 264V dc | |
| Minimum Input Voltage | 90V ac | |
| Series | UN | |
| Select all | ||
|---|---|---|
Brand Unifive | ||
Product Type AC/DC Adapter | ||
Plug Type IEC | ||
Output Voltage 12V dc | ||
Power 36W | ||
Output Connector Type Fixed Connector Tip | ||
Number of Outputs 5 | ||
Regulated/Unregulated Regulated | ||
Adapter Current 3A | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 40°C | ||
Depth 32.1mm | ||
Width 46.8mm | ||
Standards/Approvals VCCI Class B, FCC Part15 Class B, RoHS, 609501, EN5504A1:001, CE CISPR C, 6681 | ||
Length 98.5mm | ||
Efficiency 87.4% | ||
Maximum Input Voltage 370, 264V dc | ||
Minimum Input Voltage 90V ac | ||
Series UN | ||
- COO (Country of Origin):
- JP
The Unifive UNI336 series desktop AC/DC adaptor having 36W power rating. It gives short circuit protection, over voltage protection and over current protection. It can be operated in maximum 40°C temperature. It is used in LCD display, digital camera and
Good stability
Compact size
High Energy efficiency
EIAJ-04 Output Connector Plug
