MEAN WELL AC/DC Adapter Interchangeable 264V ac Output 330 mA, 18 V dc
- RS Stock No.:
- 197-1176
- Distrelec Article No.:
- 302-29-917
- Mfr. Part No.:
- GEM06I18-P1J
- Brand:
- MEAN WELL
Bulk discount available
Subtotal (1 unit)*
£13.93
(exc. VAT)
£16.72
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- 32 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £13.93 |
| 5 - 9 | £13.51 |
| 10 - 24 | £13.09 |
| 25 - 49 | £12.69 |
| 50 + | £12.26 |
*price indicative
- RS Stock No.:
- 197-1176
- Distrelec Article No.:
- 302-29-917
- Mfr. Part No.:
- GEM06I18-P1J
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | AC/DC Adapter | |
| Plug Type | Interchangeable | |
| Maximum Output Current | 330mA | |
| Cable Length | 1800mm | |
| Overall Length | 25mm | |
| Maximum Operating Temperature | 70°C | |
| Overall Width | 39mm | |
| Standards/Approvals | CE, IEC 60950-1, UL 60950-1 | |
| Maximum Input Voltage | 264V ac | |
| Overall Depth | 48.5mm | |
| Minimum Output Voltage | 18V dc | |
| Minimum Input Voltage | 80V ac | |
| Series | GEM06 | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type AC/DC Adapter | ||
Plug Type Interchangeable | ||
Maximum Output Current 330mA | ||
Cable Length 1800mm | ||
Overall Length 25mm | ||
Maximum Operating Temperature 70°C | ||
Overall Width 39mm | ||
Standards/Approvals CE, IEC 60950-1, UL 60950-1 | ||
Maximum Input Voltage 264V ac | ||
Overall Depth 48.5mm | ||
Minimum Output Voltage 18V dc | ||
Minimum Input Voltage 80V ac | ||
Series GEM06 | ||

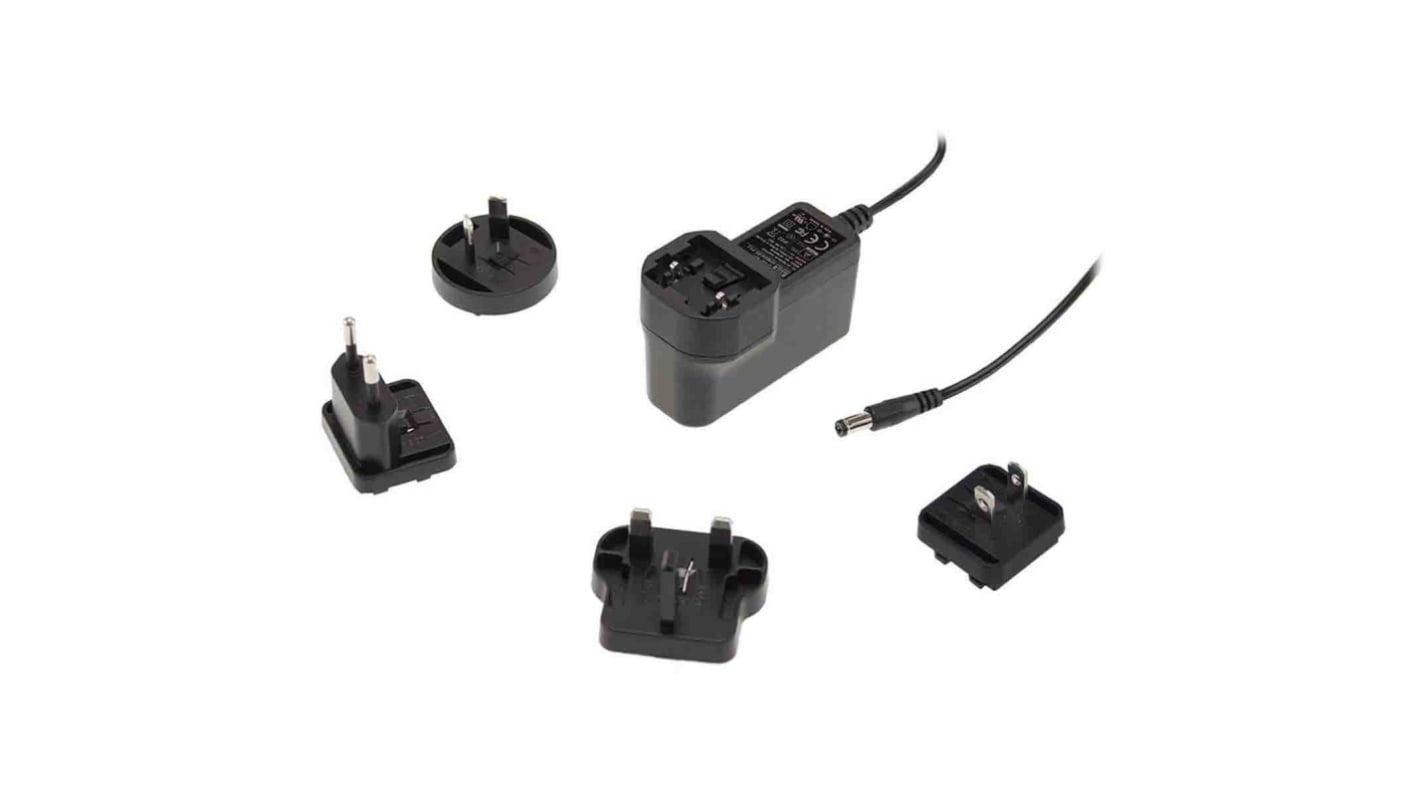

The Mean Well's GEM06I series is highly relaible.6W wall mounted style single-output green medical adaptor series, which is compact and convenient for carry. This product is equipped with an interchangeable AC plug (4 types, including European type, USA type, UK type and Australian type) that makes it very suitable for businessman to use in the major countries around the globe.
Extremely low leakage current
No load power consumption<0.3W
Medical safety approved
