TDK-Lambda 150W Power Brick AC/DC Adapter 12V dc Output, 11.67A Output
- RS Stock No.:
- 125-3764
- Mfr. Part No.:
- DT-150PW-120-D
- Brand:
- TDK-Lambda
Bulk discount available
Subtotal (1 unit)*
£93.45
(exc. VAT)
£112.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £93.45 |
5 - 9 | £90.65 |
10 - 24 | £87.84 |
25 - 49 | £85.05 |
50 + | £82.24 |
*price indicative
- RS Stock No.:
- 125-3764
- Mfr. Part No.:
- DT-150PW-120-D
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TDK-Lambda | |
Adapter Type | Power Brick Adapter | |
Plug Type | C14 | |
Output Voltage | 12V dc | |
Input Voltage | 90 → 264V ac | |
Output Current | 11.67A | |
Maximum Temperature | +60°C | |
Input Connector | IEC 320-C14 | |
Number of Outputs | 1 | |
Power Rating | 150W | |
Cable Length | 1050mm | |
MTBF | 140000h | |
Efficiency | 89% | |
Standards Met | CSA 60950-1, EN 55022-B, EN 55024, EN 69501-1, FCC Class B, IEC 60950-1, UL | |
Length | 170mm | |
Width | 85mm | |
Depth | 44mm | |
Minimum Temperature | -20°C | |
Series | DT150-D | |
Energy Efficiency Level | VI | |
Load Regulation | -5 → +5% | |
Select all | ||
---|---|---|
Brand TDK-Lambda | ||
Adapter Type Power Brick Adapter | ||
Plug Type C14 | ||
Output Voltage 12V dc | ||
Input Voltage 90 → 264V ac | ||
Output Current 11.67A | ||
Maximum Temperature +60°C | ||
Input Connector IEC 320-C14 | ||
Number of Outputs 1 | ||
Power Rating 150W | ||
Cable Length 1050mm | ||
MTBF 140000h | ||
Efficiency 89% | ||
Standards Met CSA 60950-1, EN 55022-B, EN 55024, EN 69501-1, FCC Class B, IEC 60950-1, UL | ||
Length 170mm | ||
Width 85mm | ||
Depth 44mm | ||
Minimum Temperature -20°C | ||
Series DT150-D | ||
Energy Efficiency Level VI | ||
Load Regulation -5 → +5% | ||
- COO (Country of Origin):
- TW

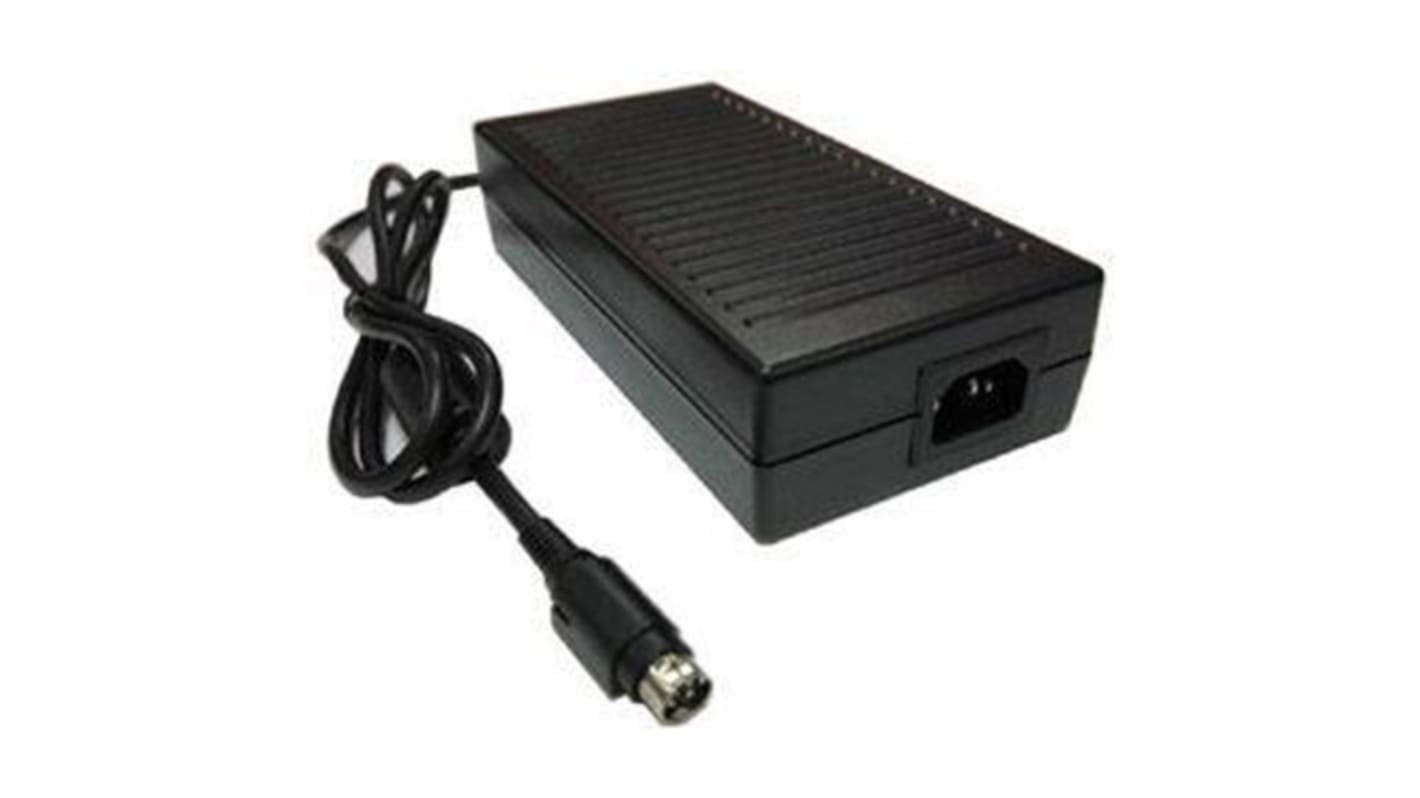

TDK-Lambda Desktop Power Supply
The TDK-Lambda DT150-C series desktop power supply is the latest invention with an adapter and a voltage rating of 12VDC. This power supply provides 140W of continuous output power in a high-quality compact enclosure suitable for many general power applications. It has an input frequency range from 47Hz to 63Hz. While the input voltage rating ranging from 90VAC to 264VAC, its maximum input current is 2.5A. The device has a compact (85 x 170 x 44mm) lightweight enclosure that has ERP level V compliance, the average efficiency of 87% and a low off load standby power consumption of less than 0.5W. It has an IEC 320-C14 input connector and 1050mm cable with moulded Kykon 4-pin connector.
Note:
MTBF to MIL-HNBK (100% load, 25°C ambient).
Note:
MTBF to MIL-HNBK (100% load, 25°C ambient).
Features and Benefits
Output current is 11.67A
Regulation is ± 5%
PFC typically 0.9 at full load (meets EN61000-3-2)
Operating temperature ranges between 0°C and 40°C at full load with no derating required
Overvoltage and short-circuit protection
Leakage current is greater than 300uA at 264VAC input
Hold up time16ms at 115VAC input
DOE level VI and EU tier 2 efficiency levels
Power factor correction
Regulation is ± 5%
PFC typically 0.9 at full load (meets EN61000-3-2)
Operating temperature ranges between 0°C and 40°C at full load with no derating required
Overvoltage and short-circuit protection
Leakage current is greater than 300uA at 264VAC input
Hold up time16ms at 115VAC input
DOE level VI and EU tier 2 efficiency levels
Power factor correction
Applications
Instrumentation
Industrial device
Industrial device
Certifications
EN55022-B
FCC class B
Safety class I
CSA/UL60950-1
EN609501-1
IEC60950-1
FCC class B
Safety class I
CSA/UL60950-1
EN609501-1
IEC60950-1
