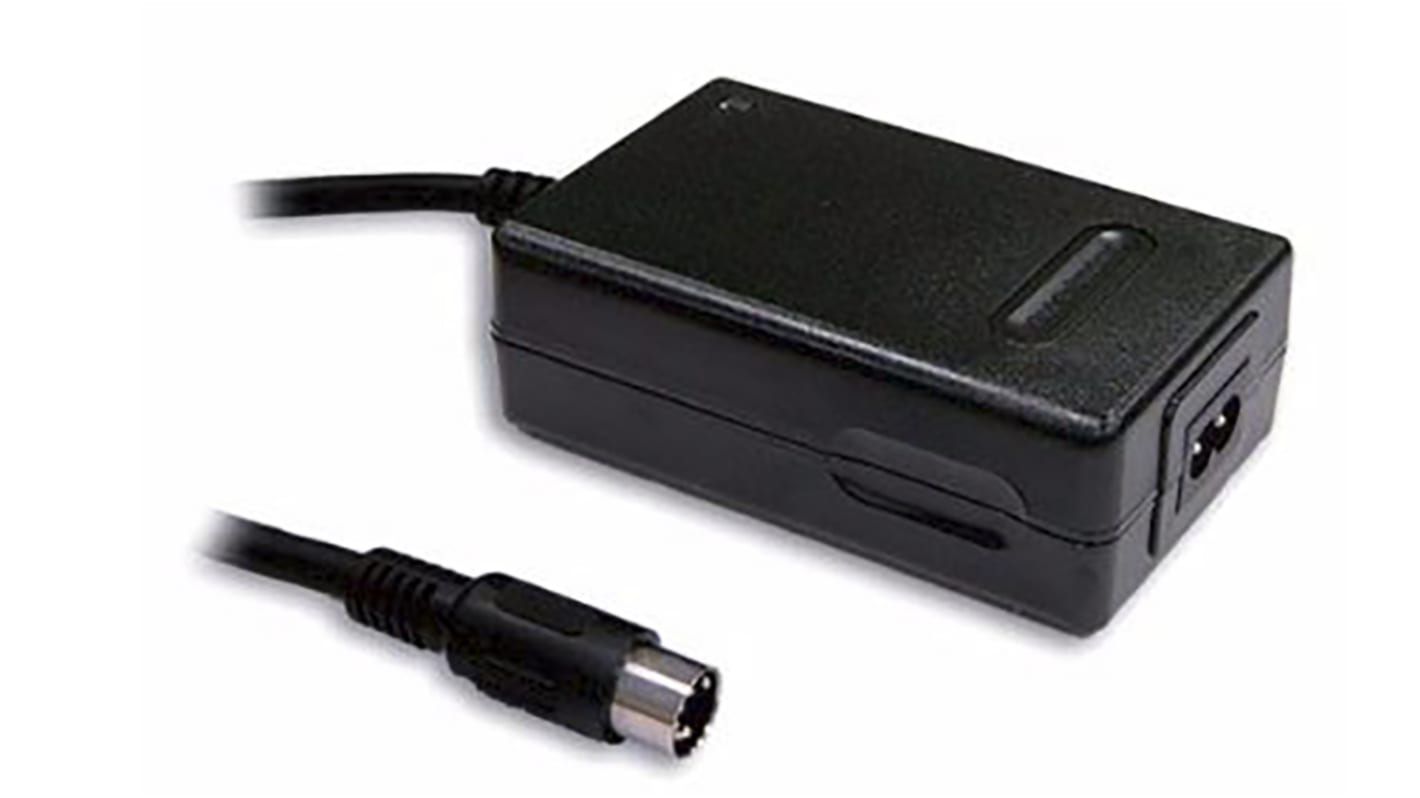

MEAN WELL 28W Power Brick AC/DC Adapter -12V dc Output, (-12 V dc) 0.1 → 0.3A Output
- RS Stock No.:
- 123-5022
- Mfr. Part No.:
- GP25B13D-R1B
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£32.38
(exc. VAT)
£38.86
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 10 February 2026
Units | Per unit |
---|---|
1 - 4 | £32.38 |
5 - 9 | £31.42 |
10 - 24 | £30.44 |
25 - 49 | £29.47 |
50 + | £28.49 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£94.73
(exc. VAT)
£113.68
(inc. VAT)
- RS Stock No.:
- 123-5022
- Mfr. Part No.:
- GP25B13D-R1B
- Brand:
- MEAN WELL
Select all | Attribute | Value |
---|---|---|
Brand | MEAN WELL | |
Adapter Type | Power Brick Adapter | |
Output Voltage | -12 V dc, 5 V dc, 12V dc | |
Input Voltage | 80 → 264V ac | |
Output Current | (-12 V dc) 0.1 → 0.3 A, (12 V dc) 0.2 → 1 A, (5 V dc) 0.5 → 2.5A | |
Maximum Temperature | +70°C | |
Output Connector | 4-Pin Power DIN | |
Input Connector | IEC 320-C14 | |
Number of Outputs | 3 | |
Power Rating | 28W | |
Cable Length | 1530mm | |
Standards Met | CB, CE, CSA 22.2, cULus Recognised, EISA 2007/DOE, EN 55022 Class B, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, FCC PART 15/CISP22 Class B, MIL-HDBK-217F, TUV Rheinland, UL 60950-1 | |
Efficiency | 80% | |
MTBF | 620kh | |
Minimum Temperature | -20°C | |
Length | 107.5mm | |
Line Regulation Range | ±1% | |
Width | 67mm | |
Series | GP25B-T | |
Depth | 36mm | |
Energy Efficiency Level | VI | |
Load Regulation | ±3 % @ -12 V dc, ±5 % @ 12 V dc, ±5 % @ 5V dc | |
Select all | ||
---|---|---|
Brand MEAN WELL | ||
Adapter Type Power Brick Adapter | ||
Output Voltage -12 V dc, 5 V dc, 12V dc | ||
Input Voltage 80 → 264V ac | ||
Output Current (-12 V dc) 0.1 → 0.3 A, (12 V dc) 0.2 → 1 A, (5 V dc) 0.5 → 2.5A | ||
Maximum Temperature +70°C | ||
Output Connector 4-Pin Power DIN | ||
Input Connector IEC 320-C14 | ||
Number of Outputs 3 | ||
Power Rating 28W | ||
Cable Length 1530mm | ||
Standards Met CB, CE, CSA 22.2, cULus Recognised, EISA 2007/DOE, EN 55022 Class B, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, FCC PART 15/CISP22 Class B, MIL-HDBK-217F, TUV Rheinland, UL 60950-1 | ||
Efficiency 80% | ||
MTBF 620kh | ||
Minimum Temperature -20°C | ||
Length 107.5mm | ||
Line Regulation Range ±1% | ||
Width 67mm | ||
Series GP25B-T | ||
Depth 36mm | ||
Energy Efficiency Level VI | ||
Load Regulation ±3 % @ -12 V dc, ±5 % @ 12 V dc, ±5 % @ 5V dc | ||
