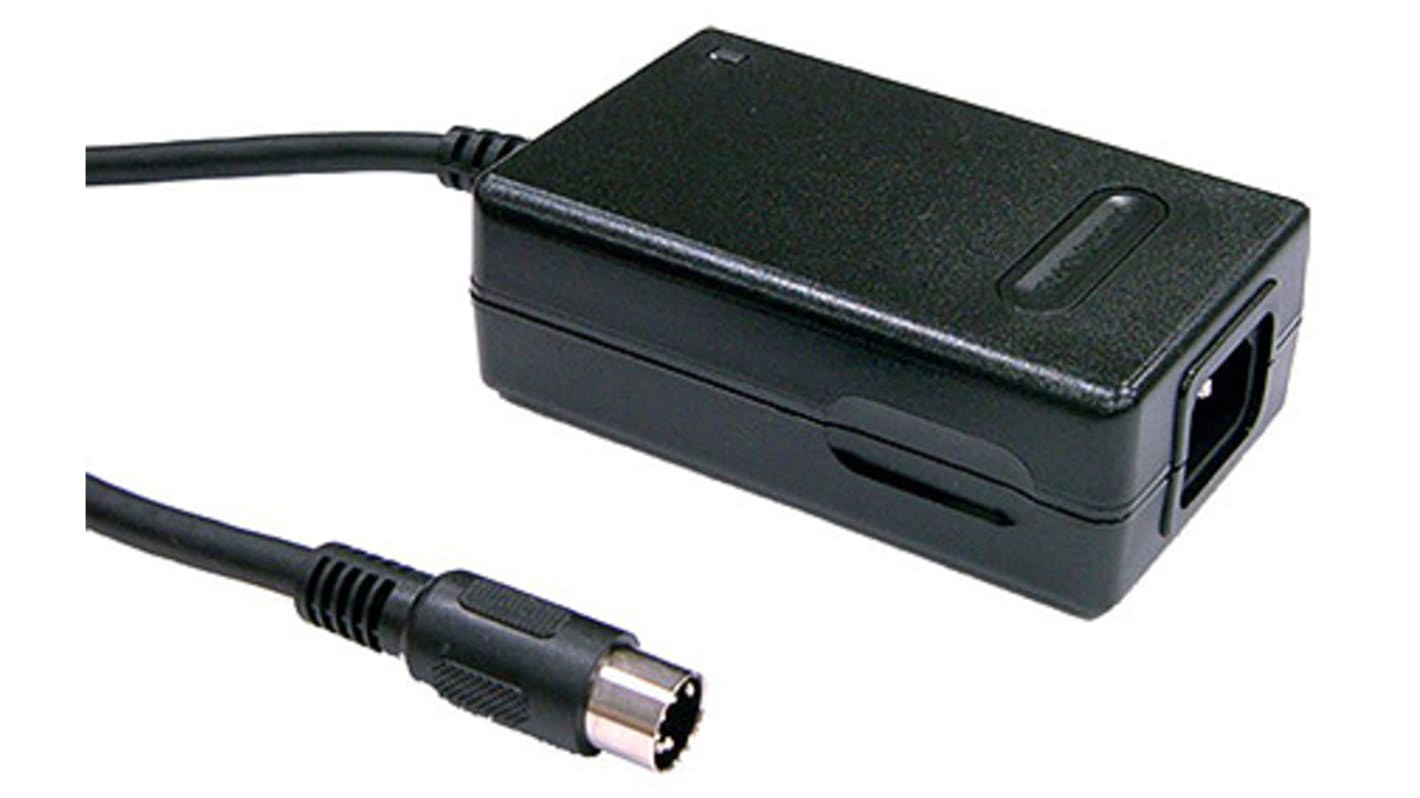

MEAN WELL 50W Power Brick AC/DC Adapter -15V dc Output, (5 V dc) 0 → 4A Output
- RS Stock No.:
- 123-5026
- Mfr. Part No.:
- GP50A14E-R1B
- Brand:
- MEAN WELL
10 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£64.60
(exc. VAT)
£77.52
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £64.60 |
| 5 - 9 | £61.37 |
| 10 - 24 | £58.14 |
| 25 - 49 | £54.91 |
| 50 + | £52.97 |
- RS Stock No.:
- 123-5026
- Mfr. Part No.:
- GP50A14E-R1B
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
Product Details
Mean Well GP25/50 Series Desk Top Power supply
Mean Well GP25 & GP50 series of desk top power supplies offer reliable and robust universal AC input product which can be used within a wide range of applications.
Features and Benefits
Universal AC input / full range.
Industry standard protections such as short circuit, overload, over voltage & over temperature.
Level VI energy efficiency rating.
Fully enclosed plastic case.
LED power indication
Universal AC input / full range.
Industry standard protections such as short circuit, overload, over voltage & over temperature.
Level VI energy efficiency rating.
Fully enclosed plastic case.
LED power indication
Switch Mode - Mean Well
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Power Brick Adapter |
| Output Voltage | -15 V dc, 5 V dc, 15V dc |
| Input Voltage | 80 → 264V ac |
| Output Current | (5 V dc) 0 → 4 A, (-15 V dc) 0.1 → 0.5 A, (15 V dc) 0.3 → 1.5A |
| Maximum Temperature | +70°C |
| Output Connector | 5-Pin DIN Connector |
| Input Connector | IEC 320-C14 |
| Number of Outputs | 3 |
| Power Rating | 50W |
| Cable Length | 1000mm |
| MTBF | 280kh |
| Efficiency | 85% |
| Standards Met | CB, CE, CSA 22.2, cULus Recognised, EISA 2007/DOE, EN 55022 Class B, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, FCC PART 15/CISP22 Class B, MIL-HDBK-217F, TUV Rheinland, UL 60950-1 |
| Length | 146mm |
| Line Regulation Range | ±1% |
| Load Regulation | ±3 % @ 15 V dc, ±5 % @ -15 V dc, ±5 % @ 5V dc |
| Energy Efficiency Level | VI |
| Minimum Temperature | -20°C |
| Depth | 43mm |
| Width | 75.5mm |
| Series | GP50A-T |
