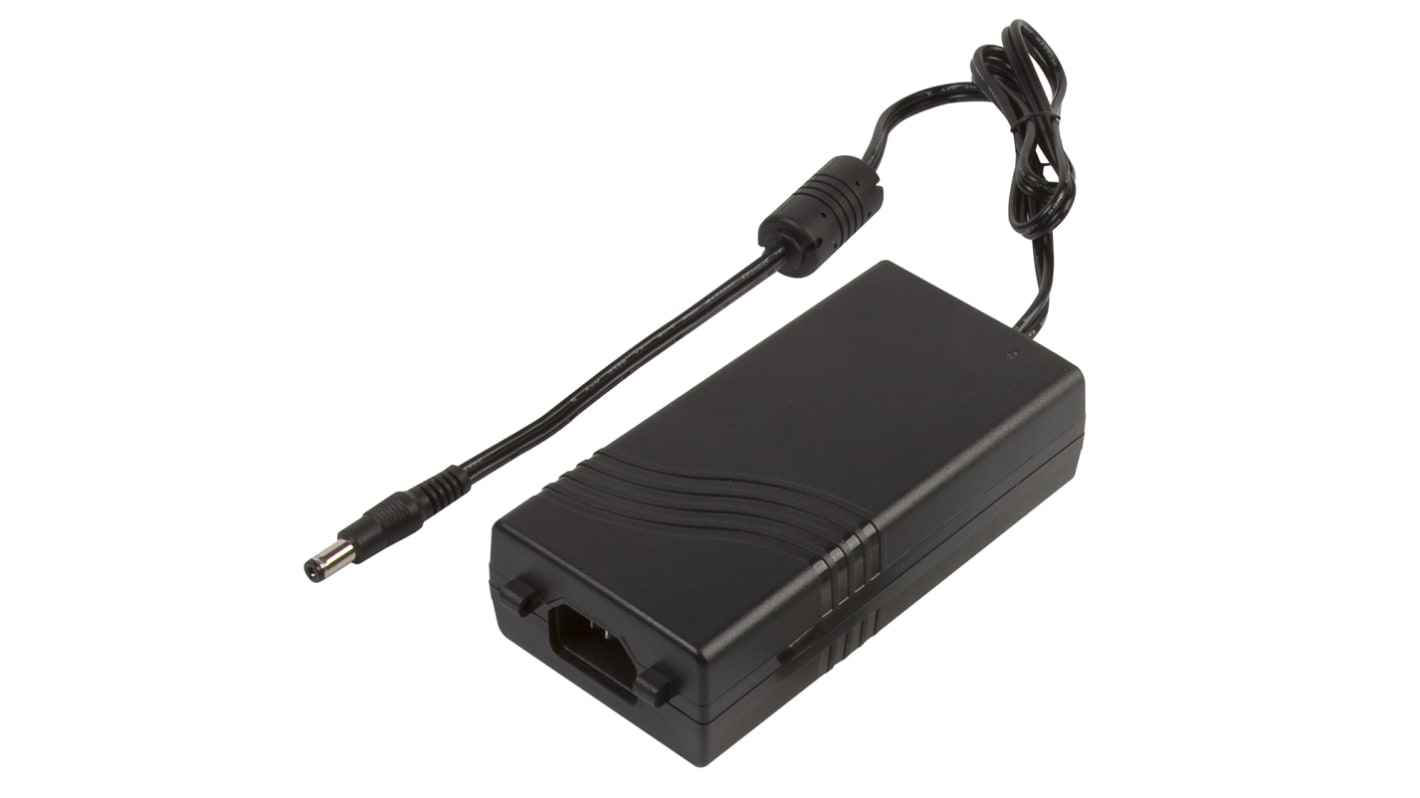

XP Power 48W Power Brick AC/DC Adapter 24V dc Output, 2A Output

View all AC/DC Adapters
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
XP Power 50W Power Brick AC/DC Adapter 24V dc Output, 2.08A Output
RS Stock No.
121-7110

Each

£20.64

(exc. VAT)

£24.77

(inc. VAT)

RS Stock No.:
121-7033
Distrelec Article No.:
301-83-295
Mfr. Part No.:
AFM45US24
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Adapter Type

Power Brick Adapter

Output Voltage

24V dc

Input Voltage

80 → 264V ac

Output Current

2A

Maximum Temperature

+60°C

Output Connector

DC Plug

Input Connector

IEC 320-C14

Number of Outputs

1

Power Rating

48W

Cable Length

950mm

Medical Approved

Yes

Standards Met

CCC Qualified, CEC2008, EISA2007, EN 55011/22/FCC, EN 60601-1, EN 60601-1-2, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60601-1, IEC 60950-1, MIL-HDBK-217F, UL 60601-1, UL 60950-1

MTBF

>250kh

Length

121mm

Series

AFM

Line Regulation Range

±1%

Load Regulation

2.5%

Energy Efficiency Level

V

Minimum Temperature

0°C

Width

50mm

Depth

30.8mm

COO (Country of Origin):
CN

XP Power Desktop Power Supply


The XP Power AFM series plug-in Power unit desktop Power supply has an output voltage rating of 24VDC. It provides 48W of continuous output power in a high-quality, compact enclosure suitable for many general Power applications. It has an input frequency of 50Hz to 60Hz. While the input voltage rating ranging from 80VAC to 264VAC, its maximum output current is 2A. It is ideal for many small electrical devices.

Features and Benefits


Energy efficiency level V
Output connection type is DC plug
Load regulation range is 2.5%
Holdup time is 8ms
Efficiency is 87.7%
Operating temperature ranges between 0°C and 60°C

Certifications


CEC2008
EISA2007
IT and medical approvals
China compulsory certification (CCC) qualified
Optional class II versions
Optional white case versions
EN55011/22/FCC class B conducted
EN55011/22/FCC class B radiated
EN61000-3-2, class A
EN61000-3-3
EN61000-4-2
EN61000-4-3, 3 V/m perf criteria A
EN61000-4-4, level 3 perf criteria A
EN61000-4-5
Installation class 3 perf criteria A
EN61000-4-6, 3 Vrms perf criteria A
EN61000-4-8, 3 A/m, perf criteria A
EN61000-4-11
UL60950-1
IEC60950-1
EN60601-1 (3rd Ed.)
UL60601-1 (2nd Ed.)
IEC60601-1
