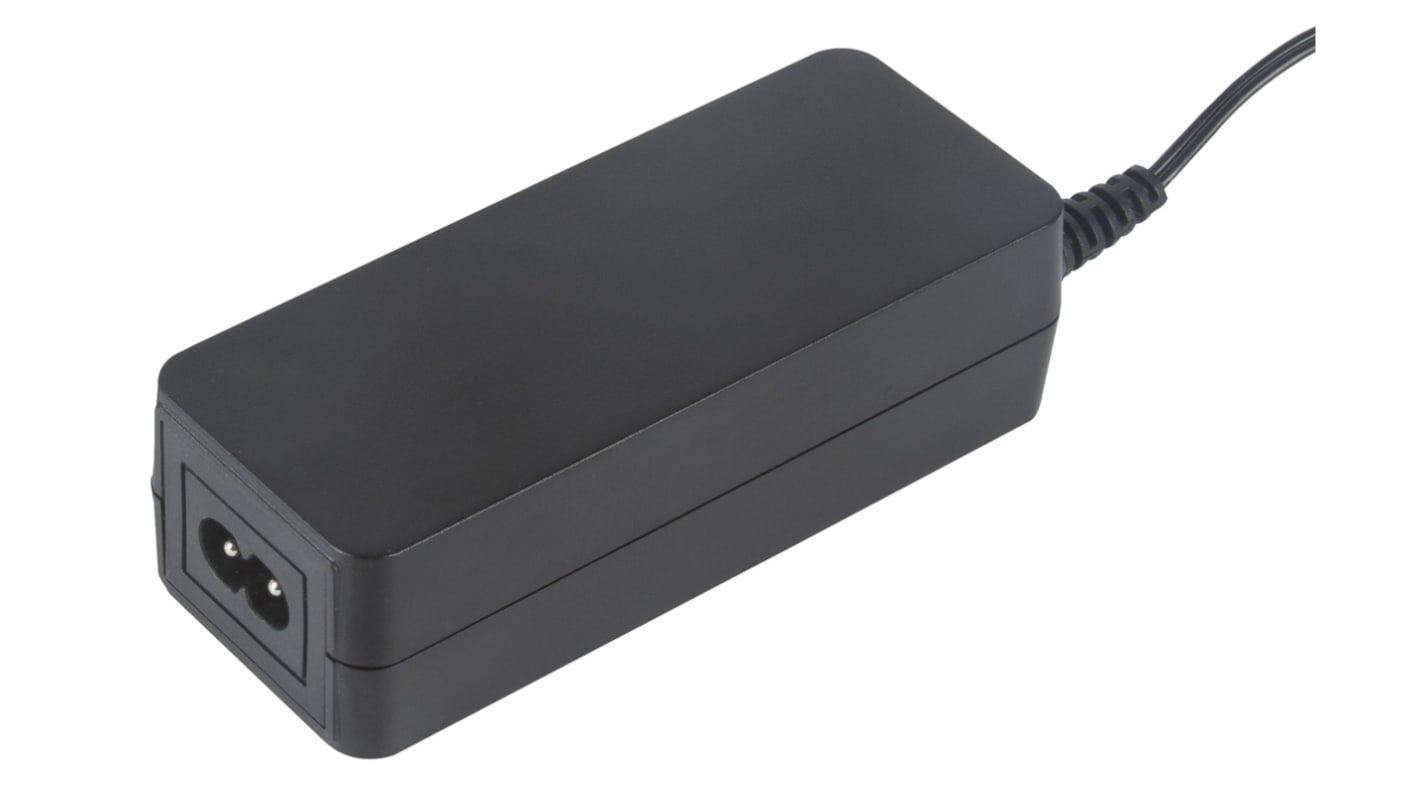

XP Power 18W Power Brick AC/DC Adapter 12V dc Output, 1.5A Output
- RS Stock No.:
- 134-6927
- Mfr. Part No.:
- VET18US120C2-JA
- Brand:
- XP Power
Available to back order for despatch when stock is available
Price Each
£12.01
(exc. VAT)
£14.41
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 4 | £12.01 |
| 5 - 9 | £11.65 |
| 10 - 24 | £11.29 |
| 25 - 49 | £10.93 |
| 50 + | £10.57 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 134-6927
- Mfr. Part No.:
- VET18US120C2-JA
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
XP Power - VET18 Series AC-DC Power Supplies
The VET18 series from XP Power offers an excellent range of 18 W plug-in power supplies, all of which feature energy efficiency level VI. These highly reliable power supplies have a single output voltage from 9 V to 24 V. Available with a standard jack plug these adapters suit a wide variety of cost senstive applications while maintaining industry leading performance. The VET Series of power supplies feature a no load input power of <0.075 W.
Features and Benefits
• Energy Efficiency Level VI
• European CoC Tier 2
• Universal Input
• Output Voltages from 9.0 V to 24.0 V
• Class II Construction
• Low Cost
• European CoC Tier 2
• Universal Input
• Output Voltages from 9.0 V to 24.0 V
• Class II Construction
• Low Cost
Switch Mode - XP Power
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Power Brick Adapter |
| Plug Type | IEC |
| Output Voltage | 12V dc |
| Input Voltage | 90 → 264V ac |
| Output Current | 1.5A |
| Maximum Temperature | +60°C |
| Output Connector | DC Jack Plug |
| Input Connector | C8 |
| Number of Outputs | 1 |
| Power Rating | 18W |
| Cable Length | 1500mm |
| Standards Met | CB, CCC, EN 55022, EN 55024, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, MIL-HDBK-217F, TUV, UL, UL/cUL 60950-1 |
| MTBF | 250000h |
| Efficiency | 85% |
| Width | 44mm |
| Series | VET18 |
| Energy Efficiency Level | VI |
| Load Regulation | 5% |
| Minimum Temperature | 0°C |
| Length | 107mm |
