Friwo 18 W AC/DC Adapter Interchangeable 9 V dc Output, 2 A

View all AC/DC Adapters

Subtotal (1 unit)*

£49.26

(exc. VAT)

£59.11

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 29 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£49.26

*price indicative

RS Stock No.:
117-6627
Distrelec Article No.:
300-47-253
Mfr. Part No.:
EDV1898145RS
Brand:
Friwo
Find similar products by selecting one or more attributes.
Select all

Brand

Friwo

Product Type

AC/DC Adapter

Plug Type

Interchangeable

Output Voltage

9 V dc

Power

18W

Output Connector Type

Interchangeable

Cable Length

80mm

Number of Outputs

1

Adapter Current

2A

Minimum Operating Temperature

0°C

Input Connector Type

Universal Plug

Maximum Operating Temperature

50°C

Length

80mm

Width

34 mm

Depth

34mm

Standards/Approvals

cULus, IEC 60335-1, EN 55022, IEC 60950, CE, EN 55024, EN EC22, SIQ, IEC 60065, PSE

Efficiency

85%

Energy Efficiency Level

VI

Series

FW8001

Minimum Input Voltage

100V ac

Friwo FOX Series Global Plug In Power Adapter


Friwo FOX series of power supplies are a meticulously designed range designed to meet Department of Energy level VI requirements. The Friwo FOX range offers a range of output voltages ranging from 5 to 48 V dc, and is compatible with the FOX interchangeable plug system. Power consumption while idle is low, and the running efficiency offers some of the highest in it's class.

The Friwo FOX series comes equipped with industry standard protection features, such as short circuit, overload & overvoltage.

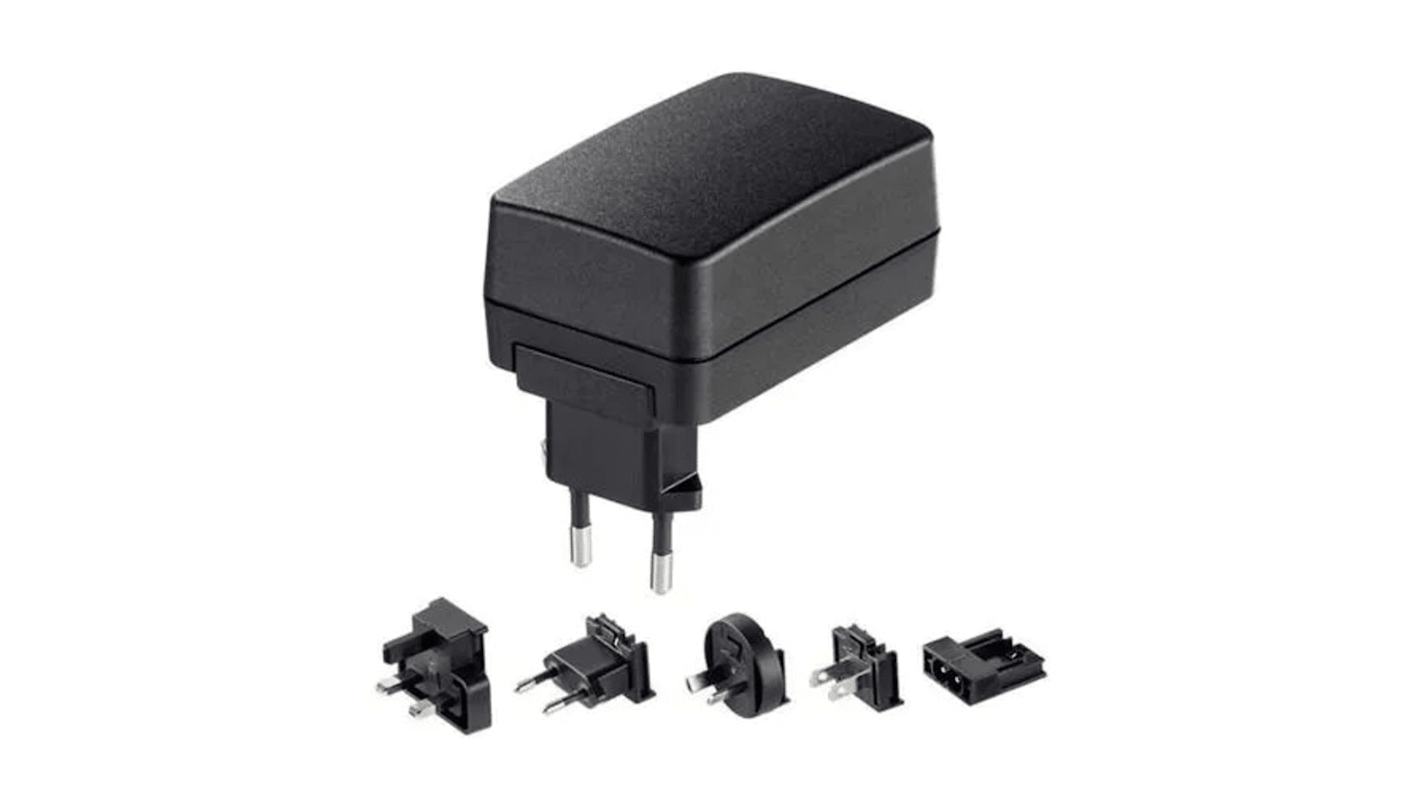

Supplied with 4 interchangeable mains plugs for use in UK, Europe, USA, Japan and Australia.

Features and Benefits

Voltage outputs available from 5 to 48 V dc.

USB output options available.

Interchangeable plug system allows for flexibility.

Medical rated options available, to adhere to 2 x MOPP.

Meets energy efficiency standards DOE Level VI & ErP Level V.

Friwo's partial potting technology within the FOX series provides a cost-effective sealed unit.

Switch Mode - Friwo


Standards

IEC/EN/UL 60950, IEC/EN/ ANSI/AAMI ES60601

Supplied with

A set of 7 output connectors
