RS PRO Centre, 2.1 x 5.5 x 12 mm AC/DC Adapter EU, UK 22.5 W 9V dc Output, 2.5 A
- RS Stock No.:
- 360-643
- Brand:
- RS PRO
Subtotal (1 unit)*
£20.71
(exc. VAT)
£24.85
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 33 unit(s) ready to ship
- Plus 70 unit(s) shipping from 16 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £20.71 |
*price indicative
- RS Stock No.:
- 360-643
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | AC/DC Adapter | |
| Plug Type | EU, UK | |
| Output Voltage | 9V dc | |
| Power | 22.5W | |
| Output Connector Type | Centre, 2.1 x 5.5 x 12 mm | |
| Cable Length | 1.5m | |
| Number of Outputs | 1 | |
| Input Connector Type | Selectable | |
| Minimum Operating Temperature | 0°C | |
| Regulated/Unregulated | Regulated | |
| Adapter Current | 2.5A | |
| Maximum Operating Temperature | 40°C | |
| Length | 71.2mm | |
| Depth | 31mm | |
| Width | 43.2mm | |
| Standards/Approvals | UKCA, UK, RCM, CE | |
| Efficiency | 81% | |
| Maximum Input Voltage | 240V ac | |
| Load Regulation | ±5 % | |
| Minimum Input Voltage | 100V ac | |
| Energy Efficiency Level | VI | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type AC/DC Adapter | ||
Plug Type EU, UK | ||
Output Voltage 9V dc | ||
Power 22.5W | ||
Output Connector Type Centre, 2.1 x 5.5 x 12 mm | ||
Cable Length 1.5m | ||
Number of Outputs 1 | ||
Input Connector Type Selectable | ||
Minimum Operating Temperature 0°C | ||
Regulated/Unregulated Regulated | ||
Adapter Current 2.5A | ||
Maximum Operating Temperature 40°C | ||
Length 71.2mm | ||
Depth 31mm | ||
Width 43.2mm | ||
Standards/Approvals UKCA, UK, RCM, CE | ||
Efficiency 81% | ||
Maximum Input Voltage 240V ac | ||
Load Regulation ±5 % | ||
Minimum Input Voltage 100V ac | ||
Energy Efficiency Level VI | ||
- COO (Country of Origin):
- CN
RS PRO AC/DC Adaptor, 22.5 W Power Rating
This compact AC/DC adaptor provides a reliable 9V DC output with a power rating of 22.5 watts. Designed for worldwide use, it supports a maximum load of 2.5 amps, making it ideal for various electronic devices.
Features and Benefits

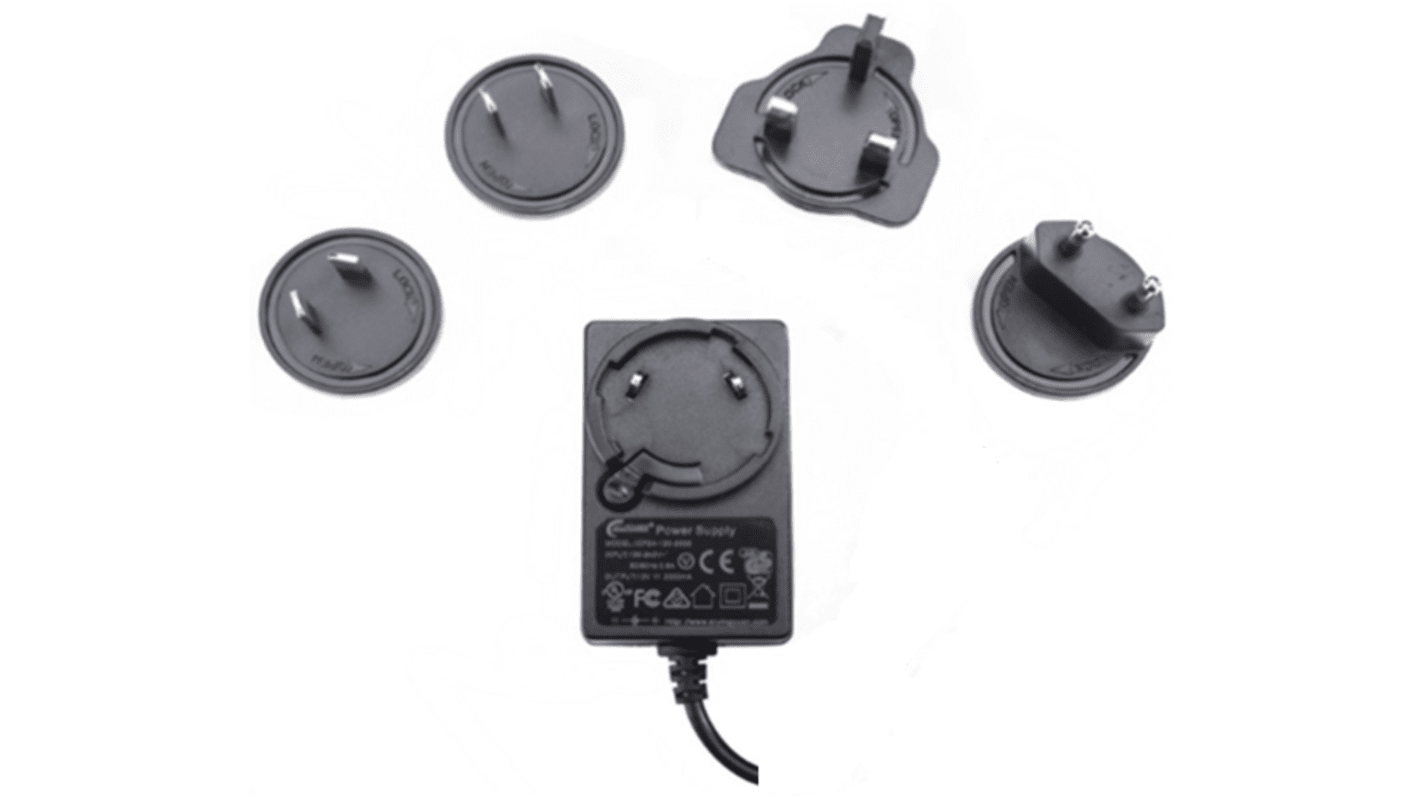

Interchangeable AC Heads: Offers flexibility for international use
DOE Level VI Efficiency: Ensures energy efficiency and cost savings
Over Current Protection: Safeguards connected devices from damage
Short Circuit Protection: Enhances safety and reliability
RoHS Compliant: Environmentally friendly design
1 Year Warranty: Provides peace of mind and assurance
EN62368 Approved: Meets international safety standards
Applications
Consumer electronics
Portable devices
Office equipment
Additional Information
Standards Met: EN55032, EN55035, FCC Part 15 Class B, GS/TUV EN62368-1, SAA AS/NZ62368-1, UL/CUL 62368-1
Plug Type: Euro/UK
Input Connector: AUS AC Head, EU, UK, US
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
