    Voltage Divider Calculator

    Use our sophisticated voltage divider calculator to work out the output voltage of a resistor divider circuit for a given set of resistor values and source voltage in seconds

    Voltage dividers are fundamental circuits that split an input voltage into a smaller output voltage based on certain resistor values. Calculating the correct output voltage is a crucial step for the performance of your electronic projects, whether you’re a hobbyist, student or professional.

    To calculate the voltage output, input your values for input voltage, and the values for each resistor and click Calculate. The calculator will then display the output voltage.

    How does it work?

    The calculator uses the following voltage divider circuit formula:

    Vout = Vin x (R2/R1+R2)

    Where:

    V****out = the voltage across resistor 2

    V****in = the voltage applied across resistor 1 and 2

    R****1 = the resistance of the first resistor

    R****2 = the resistance of the second resistor

    In a simple voltage divider circuit, two resistors (R1 and R2) are connected in a series, and the input voltage is applied across the combination of these two resistors. The value of voltage across resistor 2 is the output voltage.

    The current flowing through a conductor between two points is directly proportional to the potential difference across the two points, according to Ohm's Law, which describes the relationship between voltage, current, and resistance.

    A law points to a relationship between the electric current flowing between two points and the resistance of the current's path, which equates to the voltage difference. The equation V = IR, where V is the voltage differential, I is the current in amperes, and R is the resistance in ohms, represents the law mathematically. Higher resistance means less current flow at a given voltage.

    Browse some of our key product ranges and related content below.

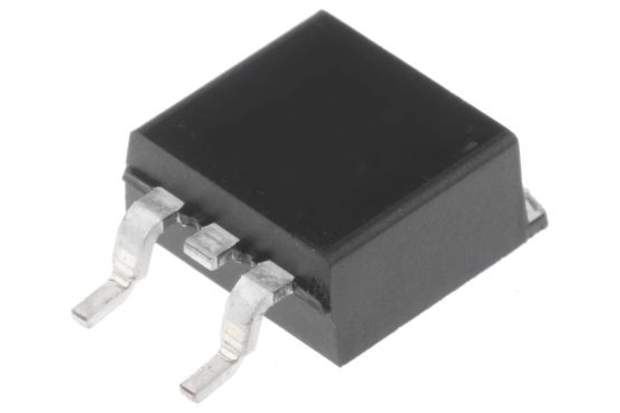

    Diodes

    Diodes allow current to flow in one direction whilst blocking it in the other, making them useful in various electronic circuits.

    View the range
    Laser Diodes

    What is a Laser Diode?

    Laser diodes are components that convert and amplify electricity into powerful light. Find out exactly how they work and what their advantages are in this guide.

    Learn More

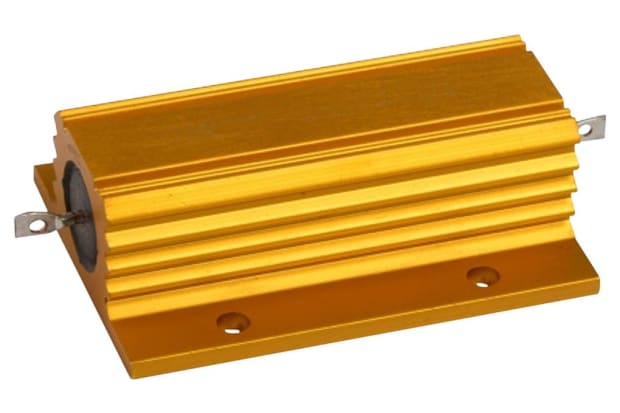

    Aluminium Wire Wound Fixed Resistor

    Fixed Resistors

    Fixed resistors have a fixed resistance value that cannot be altered. They are the most common type of resistor and rank among the most widely used electronic components.

    View the range

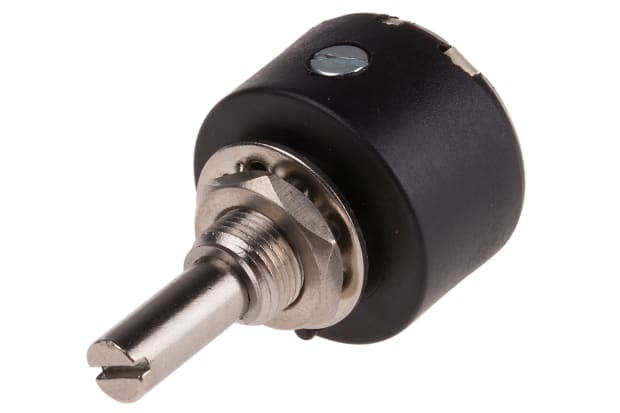

    Rotary potentiometer

    Variable Resistors

    Variable resistors are essential in a circuit as they enable the adjustment of resistance levels. Their value can be modified from nearly zero Ohms to a specified, fixed amount.

    Variable Resistors

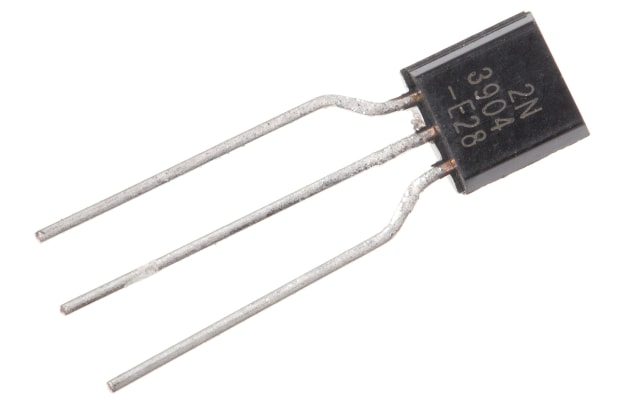

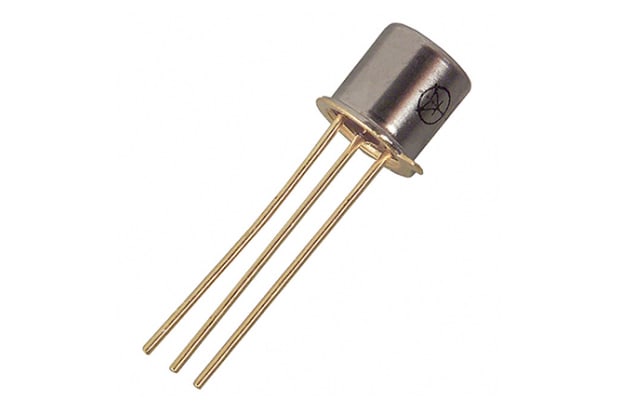

    Bipolar Transistor

    Transistors

    Transistors are semi-conductor devices that form the building blocks of integrated circuits by amplifying or switching electronic signals, enabling the functionality of everything from smartphones to computers.

    View the range

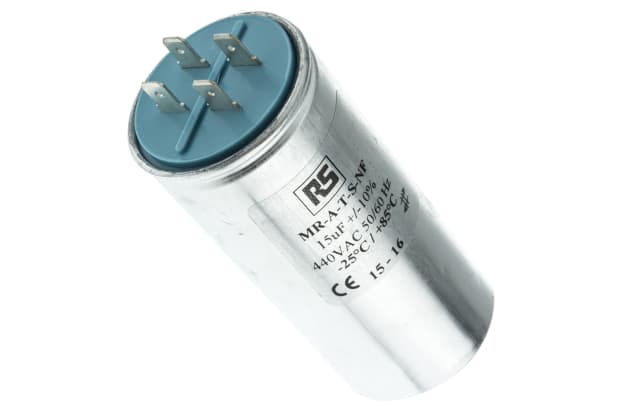

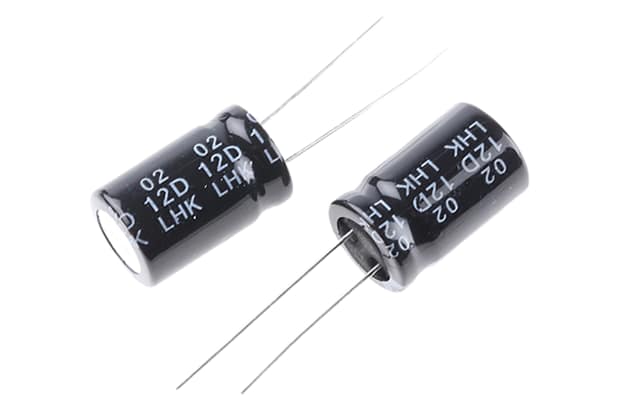

    Polypropylene Film Capacitor
