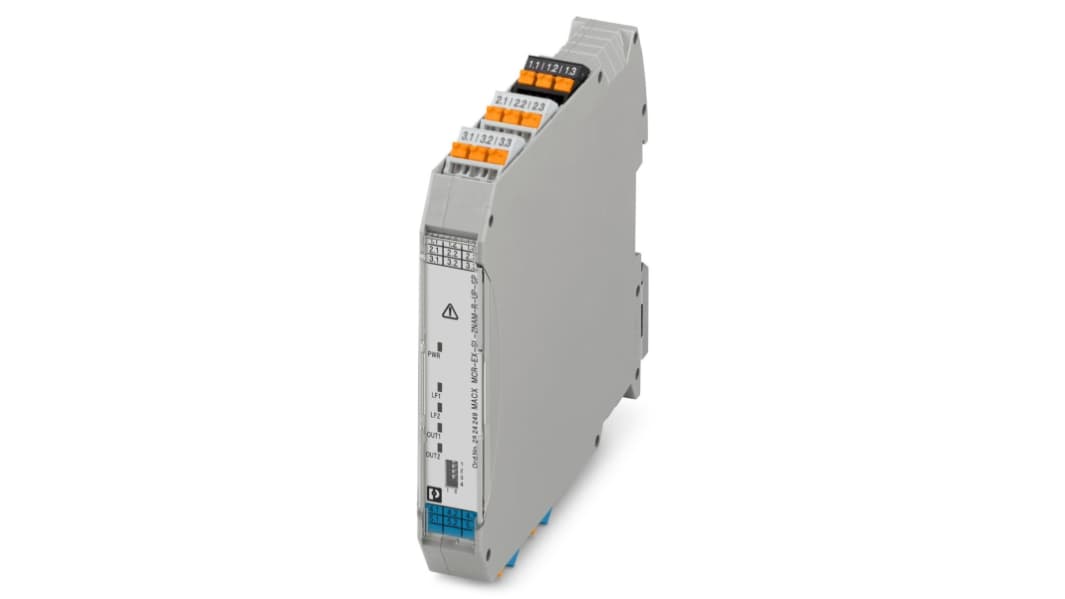

Phoenix Contact 2 Channel Galvanic Barrier, ATEX
- RS Stock No.:
- 751-1342
- Mfr. Part No.:
- 2924249
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£188.67
(exc. VAT)
£226.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
- Plus 4 unit(s) shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £188.67 |
*price indicative
- RS Stock No.:
- 751-1342
- Mfr. Part No.:
- 2924249
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Galvanic Barrier | |
| Number of Channels | 2 | |
| Barrier Type | Galvanic Barrier | |
| Mount Type | DIN Rail | |
| Hazardous Area Certification | ATEX | |
| Terminal Type | Push-in | |
| IP Rating | IP20 | |
| Maximum Safety Voltage | 253V ac/dc | |
| Maximum Safety Current | 10.3mA | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | UL, WEEE, CE, RoHS, ATEX, IEC | |
| Series | MACX MCR-EX-SL-2NAM | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Galvanic Barrier | ||
Number of Channels 2 | ||
Barrier Type Galvanic Barrier | ||
Mount Type DIN Rail | ||
Hazardous Area Certification ATEX | ||
Terminal Type Push-in | ||
IP Rating IP20 | ||
Maximum Safety Voltage 253V ac/dc | ||
Maximum Safety Current 10.3mA | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals UL, WEEE, CE, RoHS, ATEX, IEC | ||
Series MACX MCR-EX-SL-2NAM | ||
Phoenix Contact Galvanic Barrier, 253V AC/DC Safety-Related Maximum Voltage, Isolating Amplifier Module Type - MACX MCR-EX-SL-2NAM-R-UP-SP - 2924249
Boost your signals safely with this galvanic barrier from Phoenix Contact. It uses three-way isolation to keep your sensing device separated from your network or PLC. This is essential to prevent the transfer of ground loops, electrical noise or other forms of interference that can cause equipment damage and errors.
There's an input for a NAMUR proximity sensor, so the unit can be used for object detection in a hazardous or harsh environment, such as an oil and gas facility or chemical plant. A row of LEDs on the front show you operating status at a glance. Keep an eye out for red meaning line errors, green for supply and yellow for switching. Thanks to this, you always know what's going on.
Features & Benefits
• Works up to 2,000m above sea level to suit challenging workplaces
• Gold-plated silver tin oxide contacts are thermally stable and resistant to welding, arcing and corrosion
• Wide operating temperature range between -40°C and +70°C, to handle harsh conditions
• ATEX certification indicates it's tested and approved for use in explosive atmospheres where dust and gas are present
