Eaton 1 Channel Zener Barrier, Temperature Converter, RTD, Thermocouple Input, Current, Relay Output, ATEX
- RS Stock No.:
- 703-7071
- Mfr. Part No.:
- MTL5575/RS
- Brand:
- Eaton
View all Zener & Galvanic Barriers
7 In stock - FREE next working day delivery available
Price Each
£550.00
(exc. VAT)
£660.00
(inc. VAT)
Units | Per unit |
1 + | £550.00 |
- RS Stock No.:
- 703-7071
- Mfr. Part No.:
- MTL5575/RS
- Brand:
- Eaton
Legislation and Compliance
RoHS Status: Exempt
- COO (Country of Origin):
- GB
Product Details
Intrinsic Safety Interface Units - Eaton MTL 5500 Series
The MTL5500 Series is the latest generation of MTL intrinsic safety isolators designed to meet the needs of the intrinsic safety (IS) interface market for application focussed projects, from single instrument loops to fully equipped cabinets. Incorporating advanced circuit design and innovative isolating transformer construction these isolators offer explosion protection and help protect electrical signals in hazardous areas ensuring a safe working environment.
DIN-rail mounting and plug-in signal and power connectors simplify installation and maintenance. These IS units are powered from a 20 to 35 V dc supply voltage, or, in some cases, from the signal itself.
The compact 16mm wide design reduces weight and gives a cost-effective high packing density and reduction in power consumption. A wide range of module options includes both single and multiple channel isolation barrier devices. They build on the success of the MTL5000 series to bring the benefits of galvanic isolators with exceptional design and reliability.,II (I) GD (Ex ia) IIC,IECEx, ATEX (Baseefa) FM, CSA
DIN-rail mounting and plug-in signal and power connectors simplify installation and maintenance. These IS units are powered from a 20 to 35 V dc supply voltage, or, in some cases, from the signal itself.
The compact 16mm wide design reduces weight and gives a cost-effective high packing density and reduction in power consumption. A wide range of module options includes both single and multiple channel isolation barrier devices. They build on the success of the MTL5000 series to bring the benefits of galvanic isolators with exceptional design and reliability.,II (I) GD (Ex ia) IIC,IECEx, ATEX (Baseefa) FM, CSA
Features and Benefits
3-Port Isolation
High Packing density - Low power dissipation
Multi-channel I/O modules
Compatible with preceding MTL5000 series
Assessed for Functional safety IEC61508 applications
Required EX numbers and information displayed on the cover where applicable
High Packing density - Low power dissipation
Multi-channel I/O modules
Compatible with preceding MTL5000 series
Assessed for Functional safety IEC61508 applications
Required EX numbers and information displayed on the cover where applicable

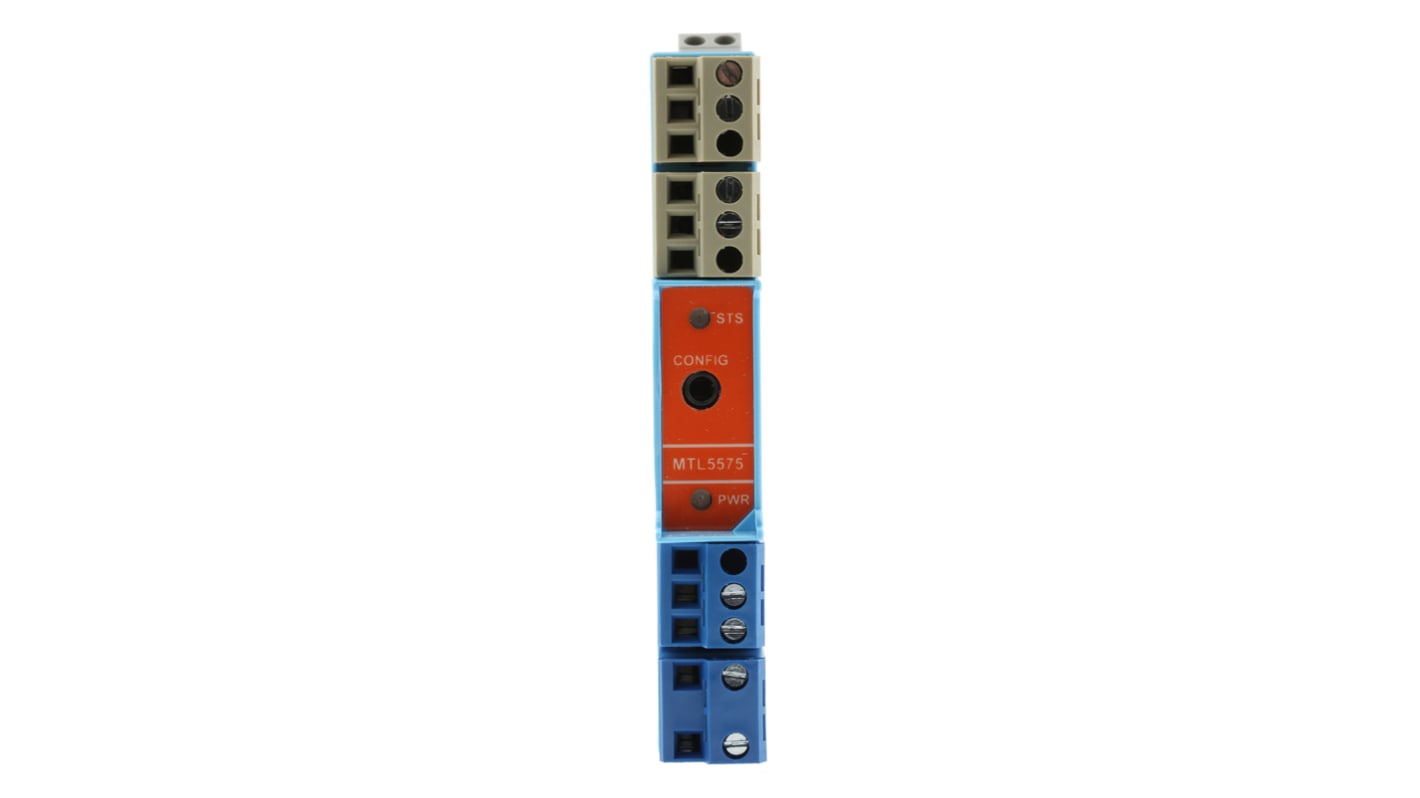

Eaton MTL Temperature Converter Zener Barrier, 20mA Maximum Current, 1 Channel - MTL5575/RS
Use this Zener barrier from Eaton MTL with a temperature sensor in a hazardous location. It converts electrical signals to current levels that are safe for a connected instrumentation device. For versatility, the unit is compatible with both thermocouples and RTDs (resistance temperature detectors). An integrated alarm output notifies you if the preset temperature limits have been reached, allowing you to act quickly. Thanks to its maximum current consumption of 50mA at 24V, this device is energy-efficient. You'll commonly find it used in industrial automation applications.
LED indicators display operating status for ease of monitoring
Rapid response time of 500ms for fast operation
Low power dissipation of 1.2W ensures minimal energy loss
Designed for DIN rail mounting for quick and simple installation
Broad operating temperature range between -20°C and +65°C for use in demanding environments
Rapid response time of 500ms for fast operation
Low power dissipation of 1.2W ensures minimal energy loss
Designed for DIN rail mounting for quick and simple installation
Broad operating temperature range between -20°C and +65°C for use in demanding environments
How do I configure this Zener barrier?
You can configure this device by connecting it to your computer and setting up the compatible MTL PCS45 software with a PCL45USB serial interface. This lets you adjust the parameters for the thermometers and RTDs and set the alarm output to low-process or high-process.
Note
Eaton formerly known as MTL
Specifications
Attribute | Value |
Barrier Type | Galvanic Barrier |
Number of Channels | 1 |
Supply Voltage | 20 → 35V dc |
Module Type | Temperature Converter |
Input Signal Type | RTD, Thermocouple |
Output Signal Type | Current, Relay |
Maximum Current | 20mA |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +60°C |
Safety Current Maximum | 20mA |
Safety Current Resistance | 600Ω |
Hazardous Area Certification | ATEX |
