Phoenix Contact 1 Channel Zener & Galvanic Barriers, Current, ATEX
- RS Stock No.:
- 512-254
- Mfr. Part No.:
- 2908804
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£274.30
(exc. VAT)
£329.16
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £274.30 |
*price indicative
- RS Stock No.:
- 512-254
- Mfr. Part No.:
- 2908804
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Zener & Galvanic Barriers | |
| Number of Channels | 1 | |
| Mount Type | DIN Rail | |
| Hazardous Area Certification | ATEX | |
| Maximum Safety Current | 98mA | |
| Minimum Operating Temperature | -40°C | |
| Signal Type | Current | |
| Maximum Safety Voltage | 30V dc | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | UL 61010-2-201, IEC/EN 60079-11, IEC/EN 61010-1, EN 61000-6-2, IEC/EN 60079-7, EN 61326-3-2, EN 61326-1, EN 61000-6-4 | |
| Series | MINI Analog Pro | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Zener & Galvanic Barriers | ||
Number of Channels 1 | ||
Mount Type DIN Rail | ||
Hazardous Area Certification ATEX | ||
Maximum Safety Current 98mA | ||
Minimum Operating Temperature -40°C | ||
Signal Type Current | ||
Maximum Safety Voltage 30V dc | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals UL 61010-2-201, IEC/EN 60079-11, IEC/EN 61010-1, EN 61000-6-2, IEC/EN 60079-7, EN 61326-3-2, EN 61326-1, EN 61000-6-4 | ||
Series MINI Analog Pro | ||
- COO (Country of Origin):
- DE

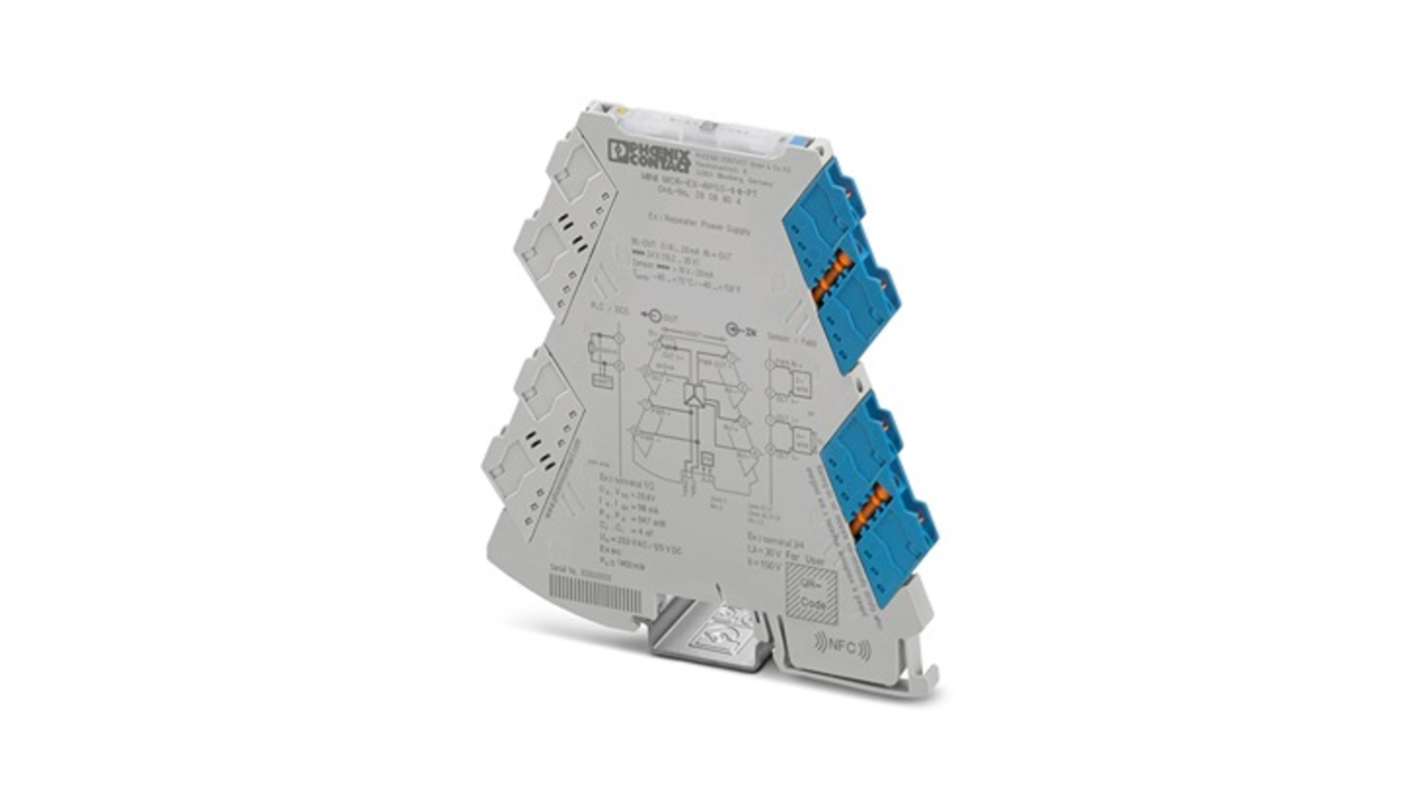

The Phoenix Contact Ex i-Repeater power supply and input signal conditioner reliably transmits supplied or active 0 mA/4 mA to 20 mA signals from the Ex area to a load in the safe area. It is HART transparent, operates with a no-load voltage of 15 V DC, and features a standard configuration with line fault detection. Compliant with Safety Integrity Level 3, it also incorporates a push-in connection for easy and secure installation.
RoHS compliant
Reverse polarity protection
Short circuit proof
