Endress+Hauser 2 Channel Zener Barrier, ATEX
- RS Stock No.:
- 316-256
- Mfr. Part No.:
- RN22-8L2BPA
- Brand:
- Endress+Hauser
Subtotal (1 unit)*
£206.28
(exc. VAT)
£247.54
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £206.28 |
*price indicative
- RS Stock No.:
- 316-256
- Mfr. Part No.:
- RN22-8L2BPA
- Brand:
- Endress+Hauser
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Endress+Hauser | |
| Number of Channels | 2 | |
| Product Type | Zener Barrier | |
| Barrier Type | Zener Barrier | |
| Mount Type | DIN Rail | |
| Hazardous Area Certification | ATEX | |
| Terminal Type | Plug-In | |
| Safety Current Resistance | 500Ω | |
| IP Rating | IP20 | |
| Maximum Safety Current | 400mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Safety Voltage | 24V | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Endress+Hauser | ||
Number of Channels 2 | ||
Product Type Zener Barrier | ||
Barrier Type Zener Barrier | ||
Mount Type DIN Rail | ||
Hazardous Area Certification ATEX | ||
Terminal Type Plug-In | ||
Safety Current Resistance 500Ω | ||
IP Rating IP20 | ||
Maximum Safety Current 400mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Safety Voltage 24V | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||

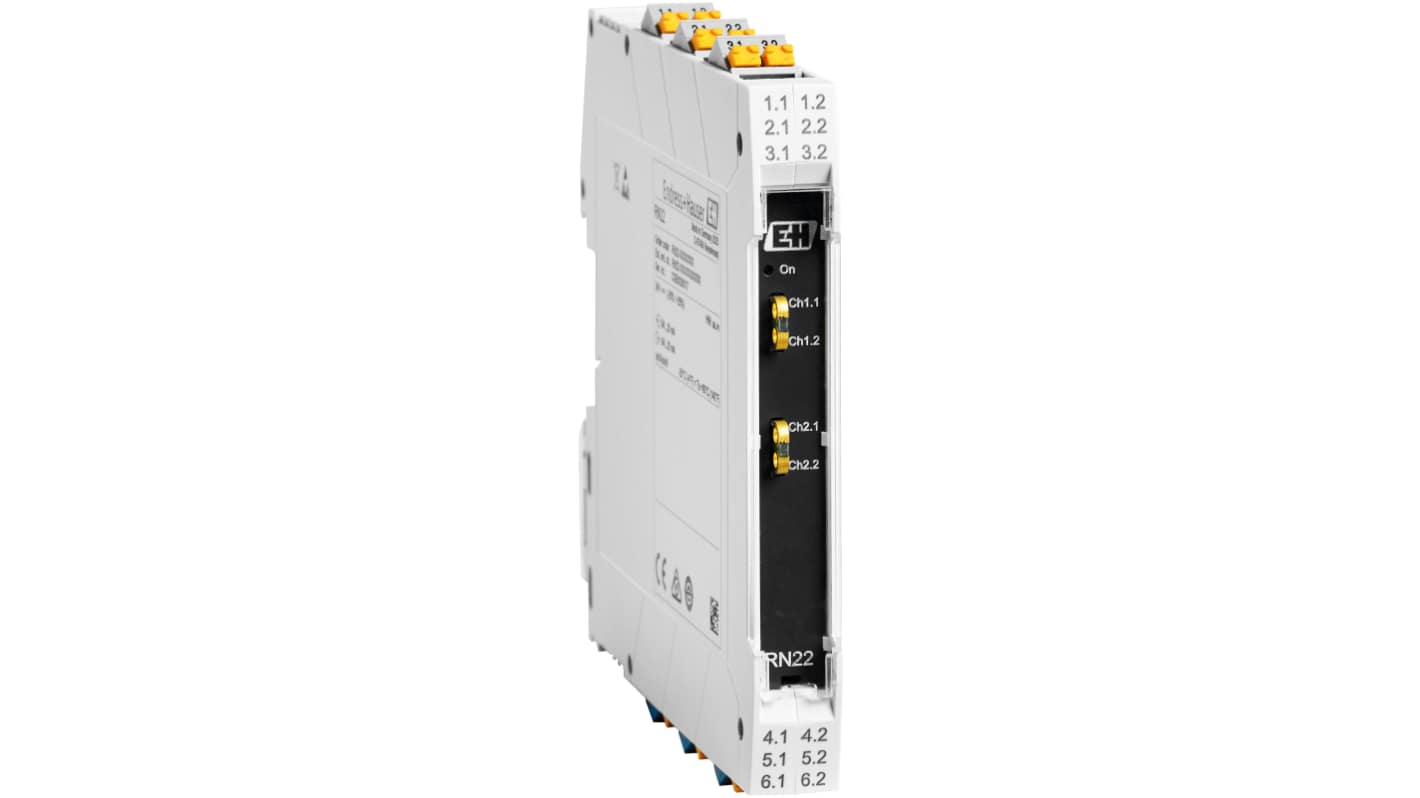

Endress+Hauser 2 Channel Zener Barrier
Intrinsically safe active barrier that provides power and safety to analog instrument loops and SIL systems, establishing a reliable signal link between field devices and process control level.
The RN22 is a 1- or 2-channel active barrier, power supply or signal doubler for safe separation of 4 to 20 mA standard signal circuits. The device safely powers analog instrument loops and safety instrumented systems up to SIL 2, SC 3 (according to IEC 61508). The HART® transparent interface device establishes a reliable signal link between field devices and process control. It interfaces with 2- or 4-wire instruments in Zone 2 hazardous areas and provides a second, galvanically isolated signal output acc. to NAMUR NE 175. This opens a second channel for the process optimization domain without affecting the traditional automation system.
Connection lugs integrated on front for HART communicators
Simple and quick wiring with plug in terminals
Features & Benefits
Active barrier for safe separation of standard signal circuits
Compact housing
Quick and easy wiring
Intrinsic safety for operation in hazardous areas (Zone 2)
For safety-oriented applications up to SIL 2 (SC 3) in accordance with IEC61508 (optional)
