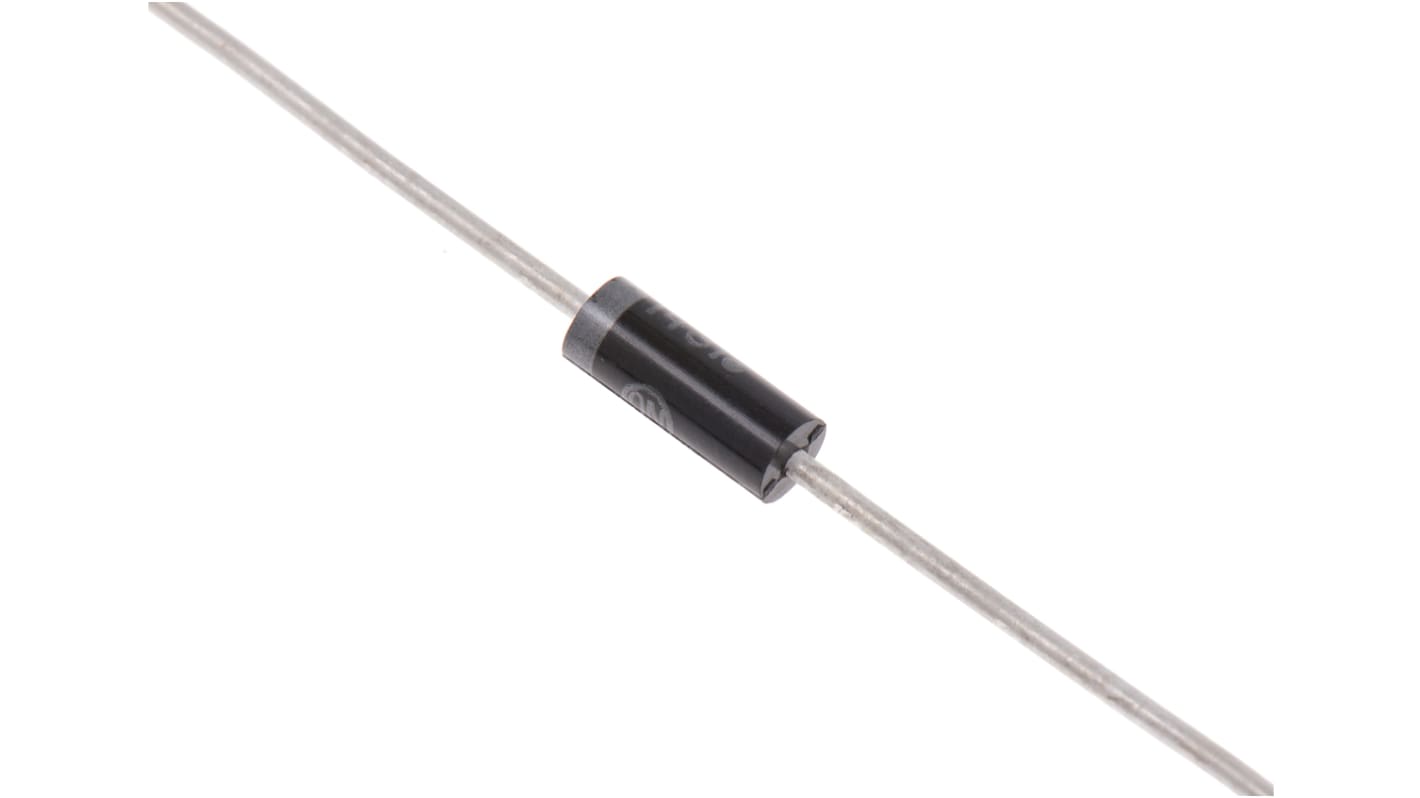

ON Semiconductor, 9.1V Zener Diode 5% 5 W Through Hole 2-Pin DO-15

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Zener Diodes 5W Surmetic, 1N5347 to 1N5363 Series, ON Semiconductor

ON Semiconductor 1N53 series is Surmetic™ 40 axial-leaded 5 Watt zener diode This axial lead device features a molded package which is void-free transfer−molded, thermosetting plastic, offers protection in most common environmental conditions, The voltage regulator has tight limits and better operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. The external surfaces are corrosion resistant and leads are readily solderable

Applications

Industrial

Zener Diodes, ON Semiconductor

Specifications
Attribute Value
Nominal Zener Voltage 9.1V
Diode Configuration Single
Mounting Type Through Hole
Number of Elements per Chip 1
Maximum Power Dissipation 5 W
Package Type DO-15
Zener Type Voltage Regulator
Zener Voltage Tolerance 5%
Pin Count 2
Test Current 150mA
Maximum Zener Impedance
Maximum Reverse Leakage Current 7.5µA
Length 8.89mm
Dimensions 8.89 x 3.68 x 3.68mm
Width 3.68mm
Maximum Operating Temperature +200 °C
Minimum Operating Temperature -65 °C
Height 3.68mm
255 In stock for FREE next working day delivery
Price Each (In a Pack of 5)
£ 0.40
(exc. VAT)
£ 0.48
(inc. VAT)
Units
Per unit
Per Pack*
5 - 45
£0.40
£2.00
50 - 95
£0.246
£1.23
100 - 245
£0.132
£0.66
250 - 495
£0.118
£0.59
500 +
£0.106
£0.53
*price indicative
Packaging Options:
Related Products
