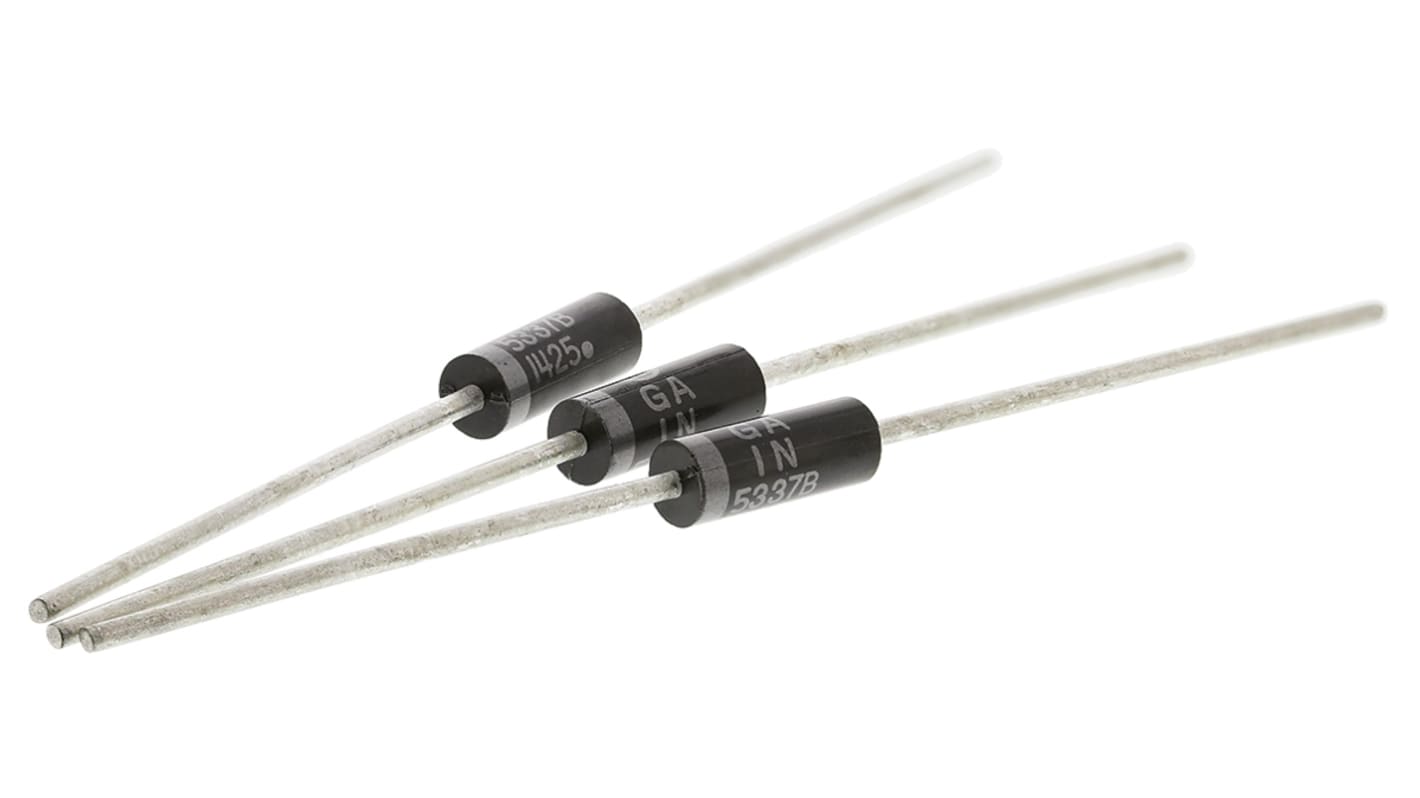

onsemi, 4.7V Zener Diode 5% 5 W Through Hole 2-Pin DO-15
- RS Stock No.:
- 625-6552
- Mfr. Part No.:
- 1N5337BG
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 10 units)*
£2.48
(exc. VAT)
£2.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,250 unit(s) ready to ship
- Plus 180 unit(s) ready to ship from another location
- Plus 2,400 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 - 90 | £0.248 | £2.48 |
100 - 240 | £0.214 | £2.14 |
250 - 490 | £0.185 | £1.85 |
500 + | £0.163 | £1.63 |
*price indicative
- RS Stock No.:
- 625-6552
- Mfr. Part No.:
- 1N5337BG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | onsemi | |
Nominal Zener Voltage | 4.7V | |
Diode Configuration | Single | |
Number of Elements per Chip | 1 | |
Mounting Type | Through Hole | |
Maximum Power Dissipation | 5 W | |
Package Type | DO-15 | |
Zener Type | Voltage Regulator | |
Zener Voltage Tolerance | 5% | |
Pin Count | 2 | |
Test Current | 260mA | |
Maximum Zener Impedance | 2Ω | |
Maximum Reverse Leakage Current | 5µA | |
Dimensions | 8.89 x 3.68 x 3.68mm | |
Minimum Operating Temperature | -65 °C | |
Maximum Operating Temperature | +200 °C | |
Select all | ||
---|---|---|
Brand onsemi | ||
Nominal Zener Voltage 4.7V | ||
Diode Configuration Single | ||
Number of Elements per Chip 1 | ||
Mounting Type Through Hole | ||
Maximum Power Dissipation 5 W | ||
Package Type DO-15 | ||
Zener Type Voltage Regulator | ||
Zener Voltage Tolerance 5% | ||
Pin Count 2 | ||
Test Current 260mA | ||
Maximum Zener Impedance 2Ω | ||
Maximum Reverse Leakage Current 5µA | ||
Dimensions 8.89 x 3.68 x 3.68mm | ||
Minimum Operating Temperature -65 °C | ||
Maximum Operating Temperature +200 °C | ||
Zener Diodes 5W Surmetic, 1N5333 to 1N5346 Series, ON Semiconductor
N Semiconductor 1N53 series is Surmetic™ 40 axial-leaded 5 Watt zener diode This axial lead device features a molded package which is void-free transfer−molded, thermosetting plastic, offers protection in most common environmental conditions, The voltage regulator has tight limits and better operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. The external surfaces are corrosion resistant and leads are readily solderable.
Applications
Industrial
Zener Diodes, ON Semiconductor
