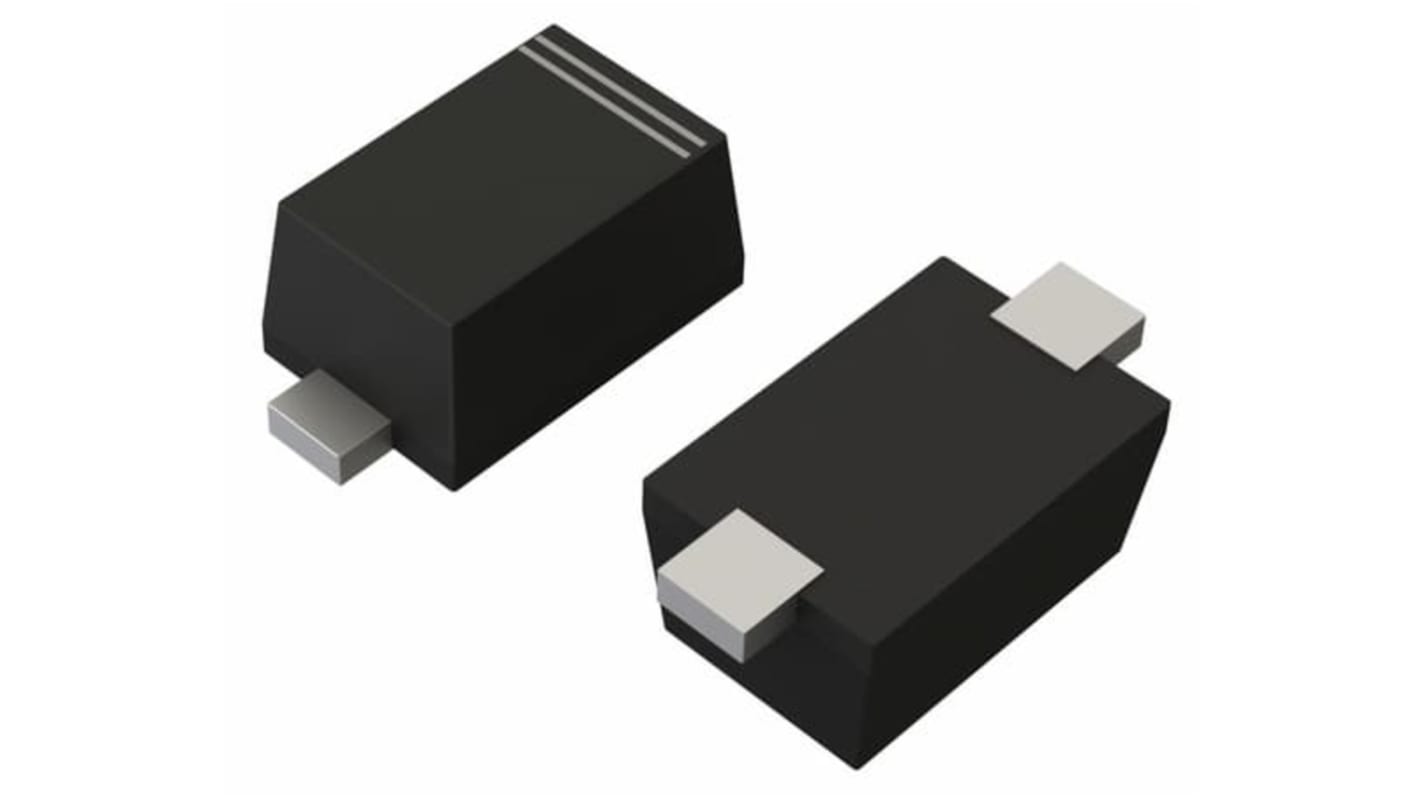

ROHM 1, 3.6 V Zener Diode, Single 150 mW Surface 2-Pin SOD-523
- RS Stock No.:
- 264-3728
- Mfr. Part No.:
- EDZVFHT2R3.6B
- Brand:
- ROHM
Get a bulk buy discount
Add 50 more to save £0.10
View bulk pricing optionsSubtotal (1 pack of 25 units)*
£3.13
(exc. VAT)
£3.75
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 7,775 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* | Saving |
|---|---|---|---|
| 25 - 25 | £0.125 | £3.13 | - |
| 50 - 475 | £0.123 | £3.08 | £0.10 |
| 500 - 975 | £0.066 | £1.65 | £29.50 |
| 1000 - 2475 | £0.064 | £1.60 | £61.00 |
| 2500 + | £0.063 | £1.58 | £155.00 |
*price indicative
- RS Stock No.:
- 264-3728
- Mfr. Part No.:
- EDZVFHT2R3.6B
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Diode Configuration | Single | |
| Nominal Zener Voltage Vz | 3.6V | |
| Product Type | Zener Diode | |
| Mount Type | Surface | |
| Number of Elements per Chip | 1 | |
| Maximum Power Dissipation Pd | 150mW | |
| Package Type | SOD-523 | |
| Zener Type | Silicon Planar | |
| Pin Count | 2 | |
| Test Current It | 5mA | |
| Maximum Zener Impedance | 1000Ω | |
| Maximum Reverse Leakage Current | 10μA | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Height | 0.7mm | |
| Length | 1.25mm | |
| Standards/Approvals | RoHS, AEC-Q101 | |
| Series | EDZFHT2R | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Diode Configuration Single | ||
Nominal Zener Voltage Vz 3.6V | ||
Product Type Zener Diode | ||
Mount Type Surface | ||
Number of Elements per Chip 1 | ||
Maximum Power Dissipation Pd 150mW | ||
Package Type SOD-523 | ||
Zener Type Silicon Planar | ||
Pin Count 2 | ||
Test Current It 5mA | ||
Maximum Zener Impedance 1000Ω | ||
Maximum Reverse Leakage Current 10μA | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Height 0.7mm | ||
Length 1.25mm | ||
Standards/Approvals RoHS, AEC-Q101 | ||
Series EDZFHT2R | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- CN
The ROHM zener diodes for automotive are available in various lineup as 2-pin mold surface mount type and complex type, it is silicon epitaxial planer structure and used in voltage regulation.
Mounting possible by automated chip mount
High reliability
