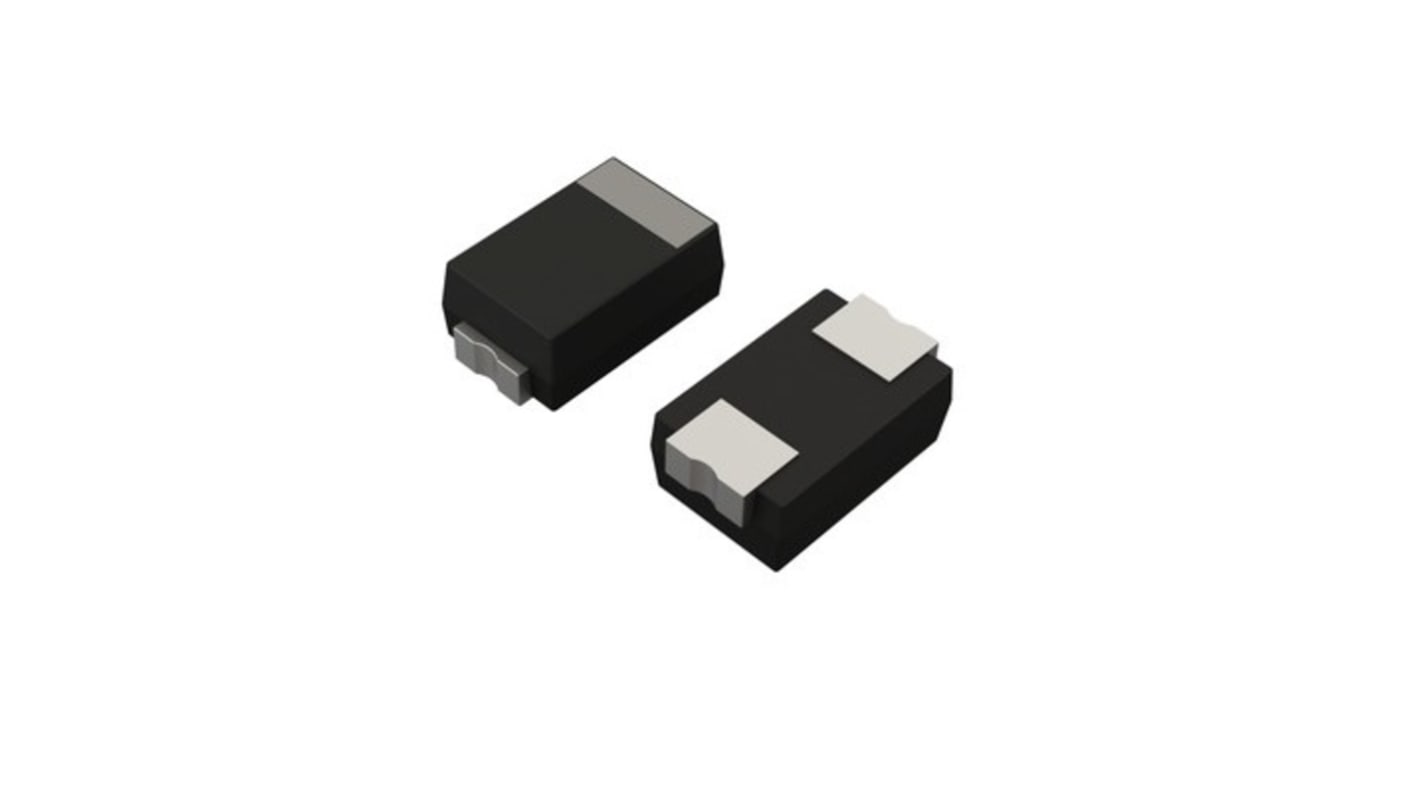

ROHM 1, 15 V Zener Diode, Single 100 mW Surface 2-Pin SOD-923
- RS Stock No.:
- 264-3669
- Mfr. Part No.:
- CDZVT2R15B
- Brand:
- ROHM
Subtotal (8000 units, on reels of 8000)*
£176.00
(exc. VAT)
£208.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 18 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 8000 + | £0.022 | £176.00 |
*price indicative
- RS Stock No.:
- 264-3669
- Mfr. Part No.:
- CDZVT2R15B
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Diode Configuration | Single | |
| Nominal Zener Voltage Vz | 15V | |
| Product Type | Zener Diode | |
| Number of Elements per Chip | 1 | |
| Mount Type | Surface | |
| Maximum Power Dissipation Pd | 100mW | |
| Package Type | SOD-923 | |
| Zener Type | Voltage Regulator | |
| Pin Count | 2 | |
| Test Current It | 5mA | |
| Maximum Zener Impedance | 42Ω | |
| Maximum Reverse Leakage Current | 100nA | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Series | CDZ | |
| Standards/Approvals | AEC-Q101, RoHS | |
| Height | 0.4mm | |
| Length | 0.91mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Diode Configuration Single | ||
Nominal Zener Voltage Vz 15V | ||
Product Type Zener Diode | ||
Number of Elements per Chip 1 | ||
Mount Type Surface | ||
Maximum Power Dissipation Pd 100mW | ||
Package Type SOD-923 | ||
Zener Type Voltage Regulator | ||
Pin Count 2 | ||
Test Current It 5mA | ||
Maximum Zener Impedance 42Ω | ||
Maximum Reverse Leakage Current 100nA | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Series CDZ | ||
Standards/Approvals AEC-Q101, RoHS | ||
Height 0.4mm | ||
Length 0.91mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
The ROHM zener diodes is the 100mW type compact diode for voltage regulation, it is silicon epitaxial planer structure.
High reliability
Small mold type
