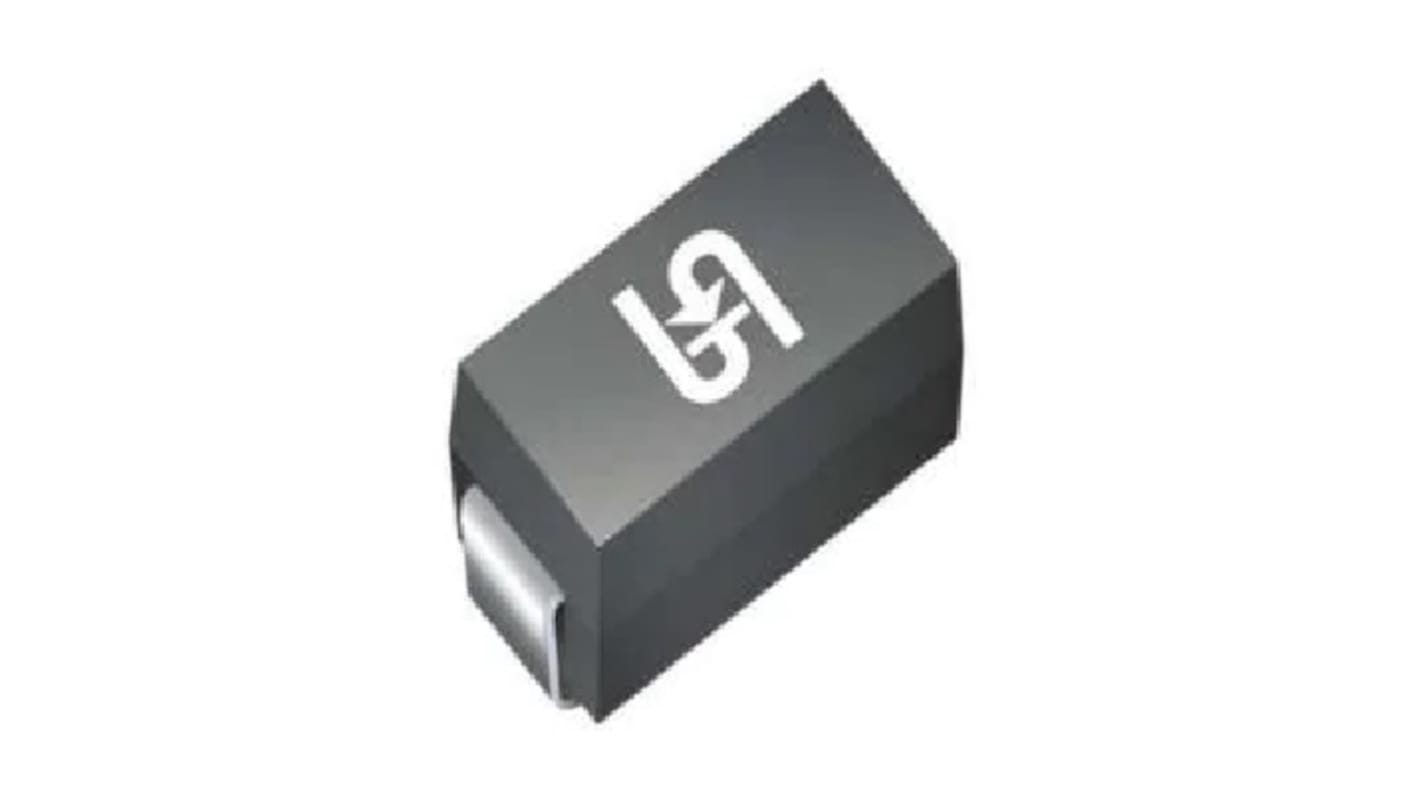

Taiwan Semiconductor 1, 24 V Zener Diode, Single 1 W Surface 2-Pin SOD-123W
- RS Stock No.:
- 241-9293
- Mfr. Part No.:
- BZD27C24PWH
- Brand:
- Taiwan Semiconductor
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 241-9293
- Mfr. Part No.:
- BZD27C24PWH
- Brand:
- Taiwan Semiconductor
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Taiwan Semiconductor | |
| Diode Configuration | Single | |
| Nominal Zener Voltage Vz | 24V | |
| Product Type | Zener Diode | |
| Mount Type | Surface | |
| Number of Elements per Chip | 1 | |
| Maximum Power Dissipation Pd | 1W | |
| Package Type | SOD-123W | |
| Zener Type | General Purpose | |
| Pin Count | 2 | |
| Test Current It | 50mA | |
| Maximum Zener Impedance | 10Ω | |
| Maximum Reverse Leakage Current | 1μA | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | AEC-Q101, JESD 201 Class 2, J-STD-002, J-STD-020 MSL level 1, RoHS, UL 94V-0 | |
| Series | BZD27C | |
| Height | 1.2mm | |
| Length | 3.5mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Taiwan Semiconductor | ||
Diode Configuration Single | ||
Nominal Zener Voltage Vz 24V | ||
Product Type Zener Diode | ||
Mount Type Surface | ||
Number of Elements per Chip 1 | ||
Maximum Power Dissipation Pd 1W | ||
Package Type SOD-123W | ||
Zener Type General Purpose | ||
Pin Count 2 | ||
Test Current It 50mA | ||
Maximum Zener Impedance 10Ω | ||
Maximum Reverse Leakage Current 1μA | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals AEC-Q101, JESD 201 Class 2, J-STD-002, J-STD-020 MSL level 1, RoHS, UL 94V-0 | ||
Series BZD27C | ||
Height 1.2mm | ||
Length 3.5mm | ||
Automotive Standard AEC-Q101 | ||
The Taiwan semiconductor Discrete devices such as Zener diodes has packaging type SOD-123W. The semiconductor has applications such as voltage regulating, reference voltage and protection circuit.
Silicon Zener diodes
Low profile surface-mount package
Zener and surge current specification
Low leakage current
Excellent stability
Moisture sensitivity level 1
RoHS compliant
Halogen-free according to IEC 61249-2-21
