Nexperia 1, 22 V Zener Diode, Single 365 mW 2 % Surface 2-Pin DFN1006BD-2
- RS Stock No.:
- 240-1896
- Mfr. Part No.:
- BZX884S-C22-QYL
- Brand:
- Nexperia
Bulk discount available
Subtotal (1 pack of 50 units)*
£4.80
(exc. VAT)
£5.75
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 10,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 450 | £0.096 | £4.80 |
| 500 - 950 | £0.04 | £2.00 |
| 1000 - 2450 | £0.025 | £1.25 |
| 2500 - 4950 | £0.023 | £1.15 |
| 5000 + | £0.023 | £1.15 |
*price indicative
- RS Stock No.:
- 240-1896
- Mfr. Part No.:
- BZX884S-C22-QYL
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Diode Configuration | Single | |
| Nominal Zener Voltage Vz | 22V | |
| Product Type | Zener Diode | |
| Mount Type | Surface | |
| Number of Elements per Chip | 1 | |
| Maximum Power Dissipation Pd | 365mW | |
| Package Type | DFN1006BD-2 | |
| Zener Type | General Purpose | |
| Pin Count | 2 | |
| Test Current It | 5mA | |
| Maximum Zener Impedance | 250Ω | |
| Maximum Reverse Leakage Current | 0.05μA | |
| Zener Voltage Tolerance ± | 2% | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Length | 1mm | |
| Standards/Approvals | AEC-Q101, RoHS | |
| Height | 0.47mm | |
| Series | BZX884S-Q | |
| Typical Voltage Temperature Coefficient | 16.4mV/K | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Diode Configuration Single | ||
Nominal Zener Voltage Vz 22V | ||
Product Type Zener Diode | ||
Mount Type Surface | ||
Number of Elements per Chip 1 | ||
Maximum Power Dissipation Pd 365mW | ||
Package Type DFN1006BD-2 | ||
Zener Type General Purpose | ||
Pin Count 2 | ||
Test Current It 5mA | ||
Maximum Zener Impedance 250Ω | ||
Maximum Reverse Leakage Current 0.05μA | ||
Zener Voltage Tolerance ± 2% | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Length 1mm | ||
Standards/Approvals AEC-Q101, RoHS | ||
Height 0.47mm | ||
Series BZX884S-Q | ||
Typical Voltage Temperature Coefficient 16.4mV/K | ||
Automotive Standard AEC-Q101 | ||

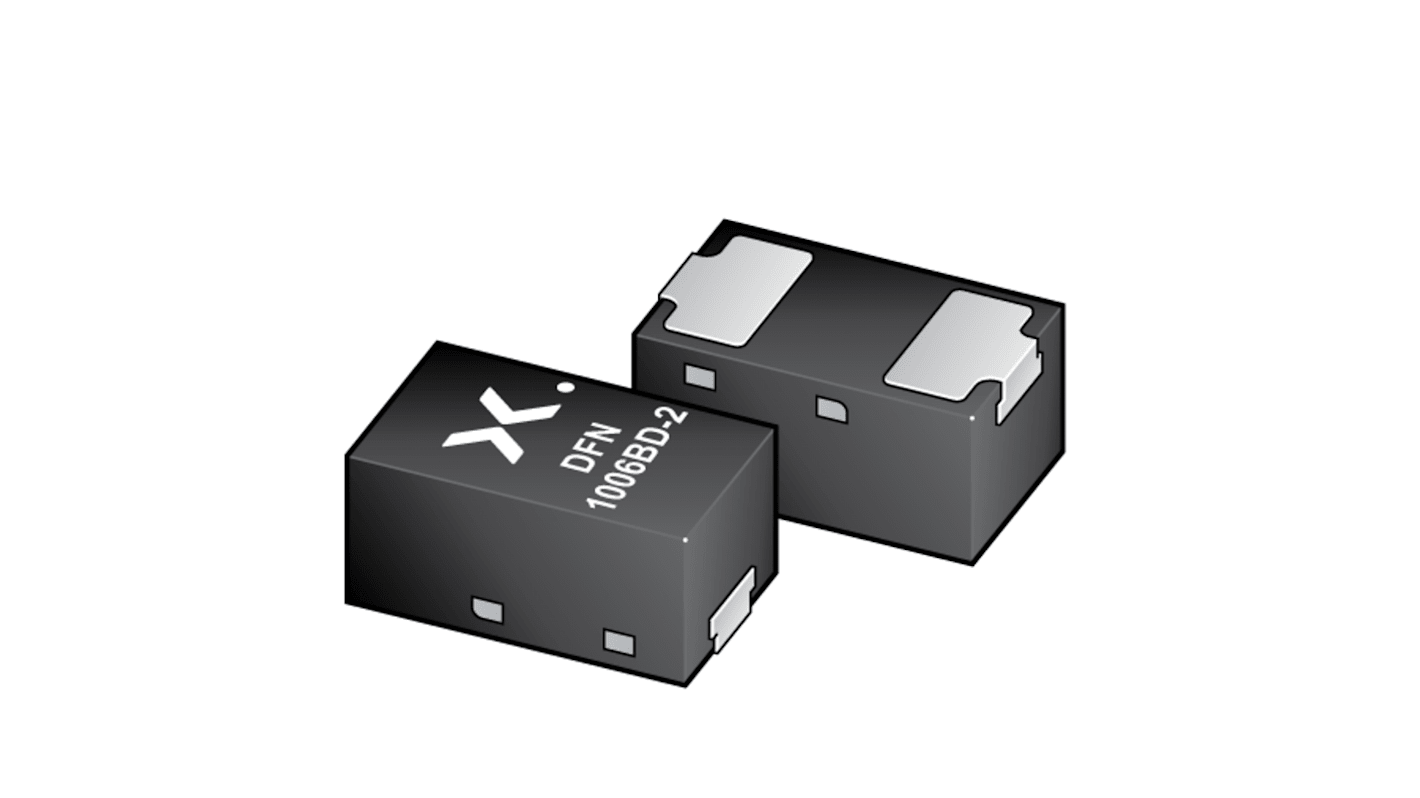

The Nexperia general-purpose zener diodes is in an ultra small SOD882BD (DFN1006BD-2) leadless Surface Mounted Device (SMD) plastic package with side-wettable flanks.
Two tolerance series ± 2 % and approximately ± 5 %
Wide working voltage range nominal 2.4 V to 75 V (E24 range)
Qualified according to AEC-Q101 and recommended for use in automotive applications
