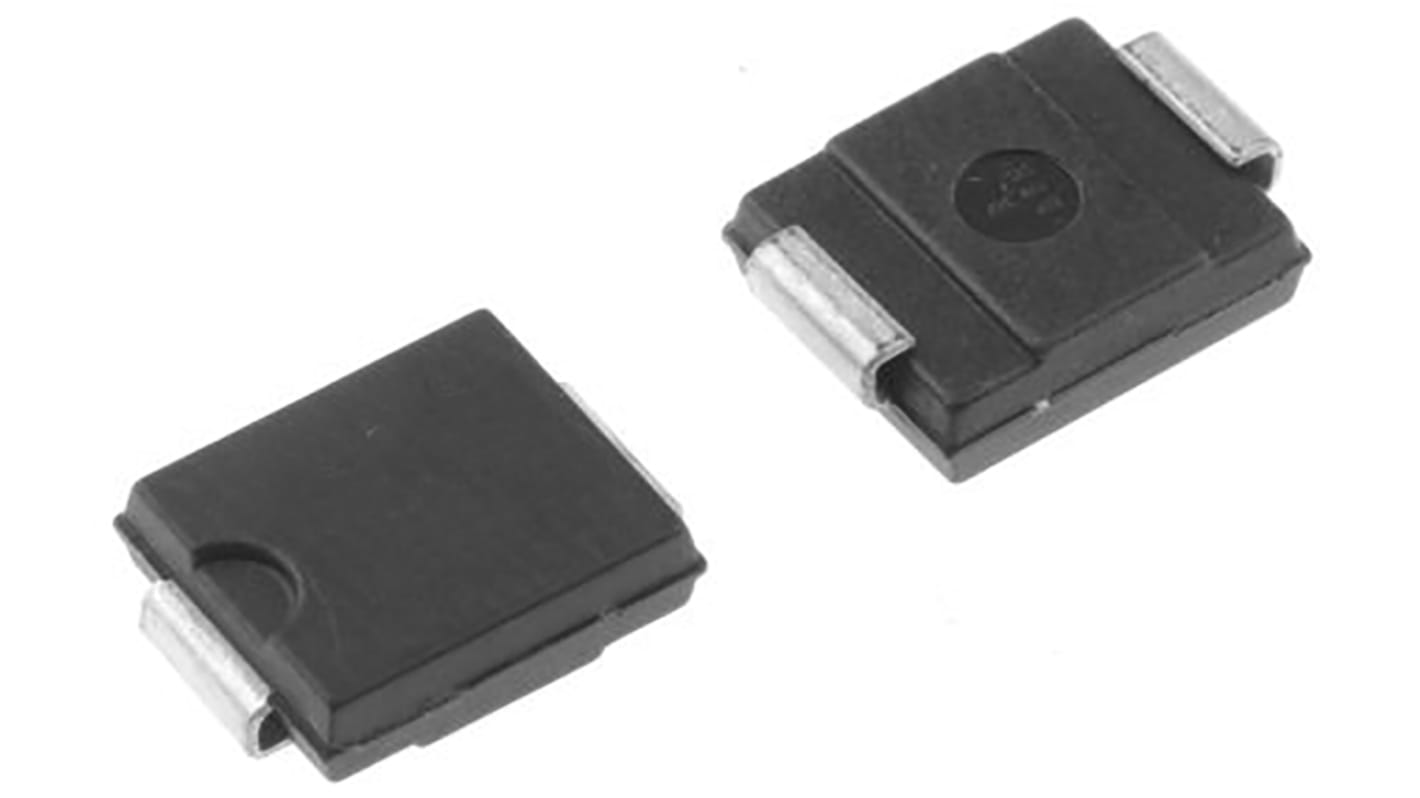

STMicroelectronics 1, 10.2 V Zener Diode, Single 1.5 kW Surface 2-Pin DO-214AB (SMC)
- RS Stock No.:
- 190-7672P
- Mfr. Part No.:
- SM15T12CA
- Brand:
- STMicroelectronics
Get a bulk buy discount
Add 625 more to save £78.13
View bulk pricing optionsSubtotal 250 units (supplied on a reel)*
£159.75
(exc. VAT)
£191.75
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2,025 unit(s) shipping from 23 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 250 - 600 | £0.639 | - |
| 625 + | £0.514 | £78.13 |
*price indicative
- RS Stock No.:
- 190-7672P
- Mfr. Part No.:
- SM15T12CA
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Nominal Zener Voltage Vz | 10.2V | |
| Product Type | Zener Diode | |
| Diode Configuration | Single | |
| Mount Type | Surface | |
| Number of Elements per Chip | 1 | |
| Maximum Power Dissipation Pd | 1.5kW | |
| Package Type | DO-214AB (SMC) | |
| Zener Type | Bi-Directional | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Reverse Leakage Current | 1μA | |
| Maximum Operating Temperature | 150°C | |
| Height | 2.45mm | |
| Standards/Approvals | No | |
| Length | 8.15mm | |
| Series | SM15TxxCA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Nominal Zener Voltage Vz 10.2V | ||
Product Type Zener Diode | ||
Diode Configuration Single | ||
Mount Type Surface | ||
Number of Elements per Chip 1 | ||
Maximum Power Dissipation Pd 1.5kW | ||
Package Type DO-214AB (SMC) | ||
Zener Type Bi-Directional | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Maximum Reverse Leakage Current 1μA | ||
Maximum Operating Temperature 150°C | ||
Height 2.45mm | ||
Standards/Approvals No | ||
Length 8.15mm | ||
Series SM15TxxCA | ||
Automotive Standard No | ||
The SM15T Transil series has been designed to Protect sensitive equipment against electrostatic discharges and electrical over stress. These devices are more generally used against surges below 1500 W (10/1000 μs).Planar technology makes these devices suitable for high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time. SM15T are packaged in SMC.
High power capability at Tjmax:1250 W (10/1000 μs)
Peak pulse power:1500 W (10/1000 μs)10 kW (8/20 μs)
Unidirectional and bidirectional types
Breakdown voltage range: from 6.8 V to 220 V
Operating Tj max: 150 °C
Low leakage current:0.2 μA at 25 °C1 μA at 85 °C
