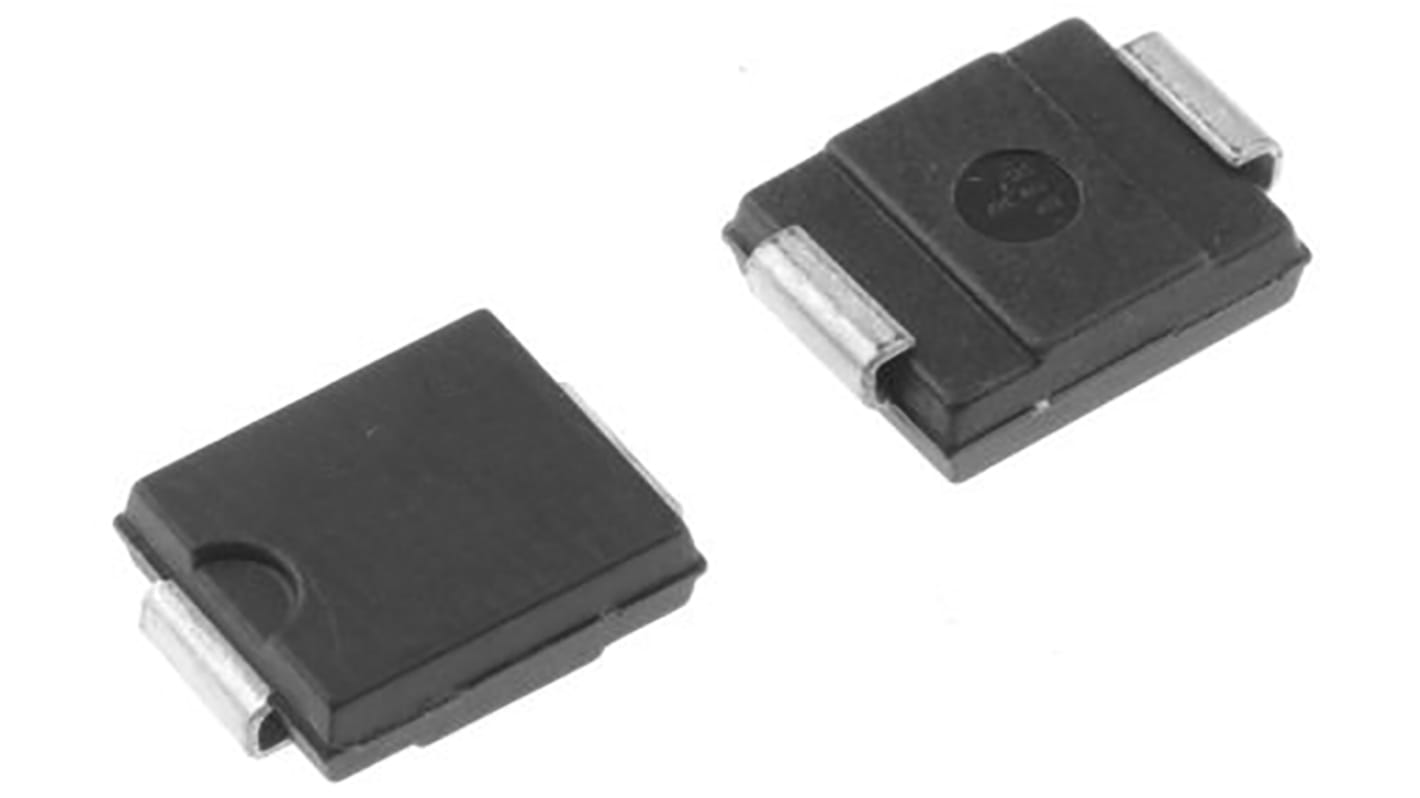

STMicroelectronics 1, 10.2 V Zener Diode, Single 1.5 kW Surface 2-Pin DO-214AB (SMC)
- RS Stock No.:
- 190-6776
- Mfr. Part No.:
- SM15T12CA
- Brand:
- STMicroelectronics
Subtotal (1 reel of 2500 units)*
£765.00
(exc. VAT)
£917.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 15 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.306 | £765.00 |
*price indicative
- RS Stock No.:
- 190-6776
- Mfr. Part No.:
- SM15T12CA
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Diode Configuration | Single | |
| Product Type | Zener Diode | |
| Nominal Zener Voltage Vz | 10.2V | |
| Mount Type | Surface | |
| Number of Elements per Chip | 1 | |
| Maximum Power Dissipation Pd | 1.5kW | |
| Package Type | DO-214AB (SMC) | |
| Zener Type | Bi-Directional | |
| Pin Count | 2 | |
| Maximum Reverse Leakage Current | 1μA | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Length | 8.15mm | |
| Standards/Approvals | No | |
| Height | 2.45mm | |
| Series | SM15TxxCA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Diode Configuration Single | ||
Product Type Zener Diode | ||
Nominal Zener Voltage Vz 10.2V | ||
Mount Type Surface | ||
Number of Elements per Chip 1 | ||
Maximum Power Dissipation Pd 1.5kW | ||
Package Type DO-214AB (SMC) | ||
Zener Type Bi-Directional | ||
Pin Count 2 | ||
Maximum Reverse Leakage Current 1μA | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Length 8.15mm | ||
Standards/Approvals No | ||
Height 2.45mm | ||
Series SM15TxxCA | ||
Automotive Standard No | ||
The SM15T Transil series has been designed to Protect sensitive equipment against electrostatic discharges and electrical over stress. These devices are more generally used against surges below 1500 W (10/1000 μs).Planar technology makes these devices suitable for high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time. SM15T are packaged in SMC.
High power capability at Tjmax:1250 W (10/1000 μs)
Peak pulse power:1500 W (10/1000 μs)10 kW (8/20 μs)
Unidirectional and bidirectional types
Breakdown voltage range: from 6.8 V to 220 V
Operating Tj max: 150 °C
Low leakage current:0.2 μA at 25 °C1 μA at 85 °C
